How to Choose Weatherproof Extension Rings for Outdoor Electrical Boxes

A weatherproof extension ring adds depth to an existing compatible electrical box without automatically requiring a complete box replacement. The important decisions are the box shape, mating flange, extra depth, conduit hub configuration, and protection of the assembled enclosure against moisture. A ring that looks close enough in a catalog photo may still have the wrong mounting pattern or gasket surface. Identify the existing box and its approved accessories before selecting a replacement part.

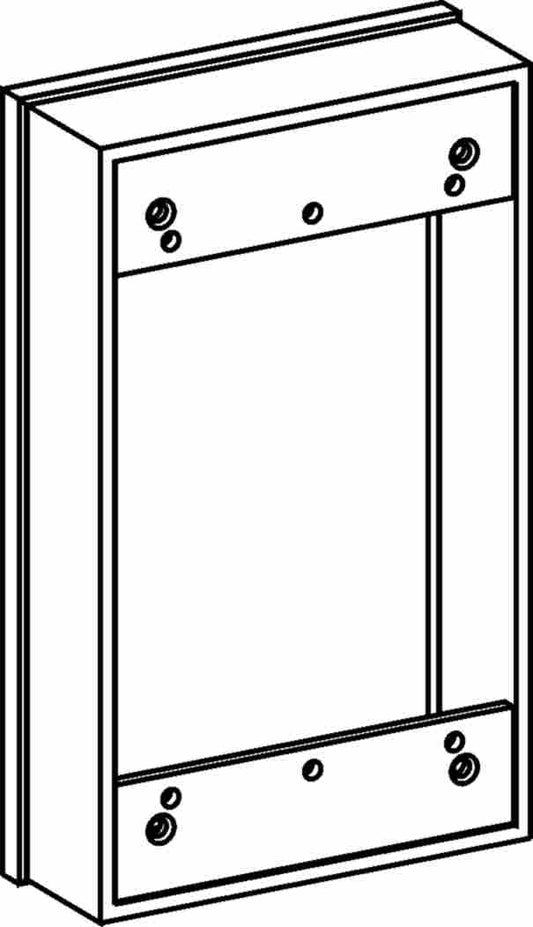

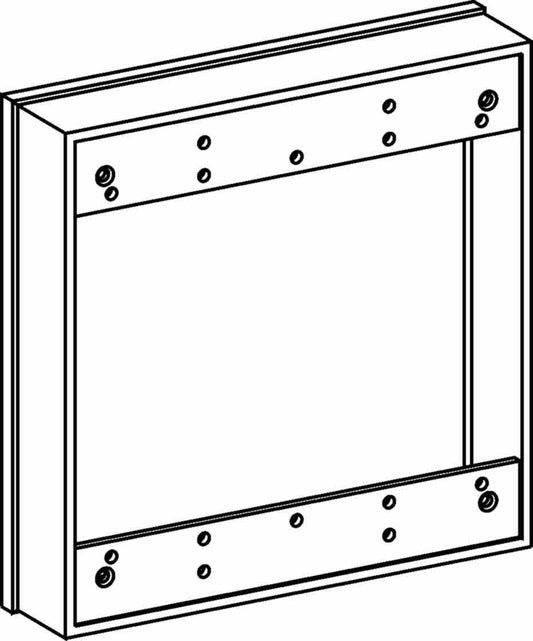

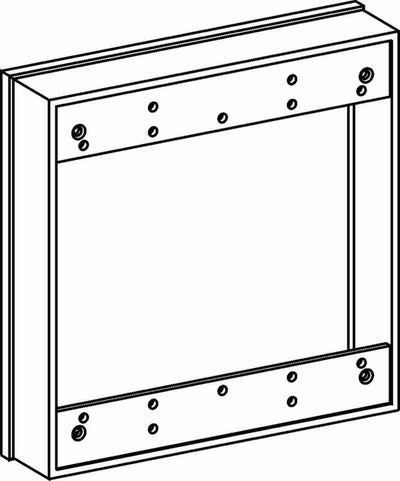

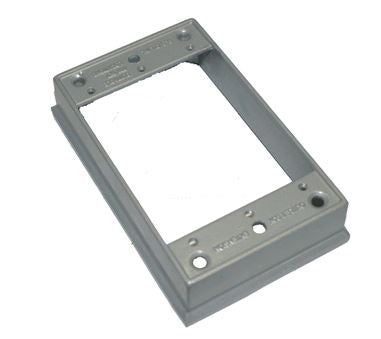

Match the Ring to a One-Gang, Two-Gang, or Round Box

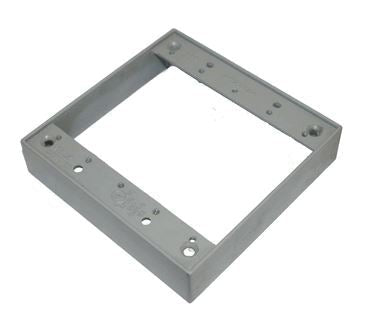

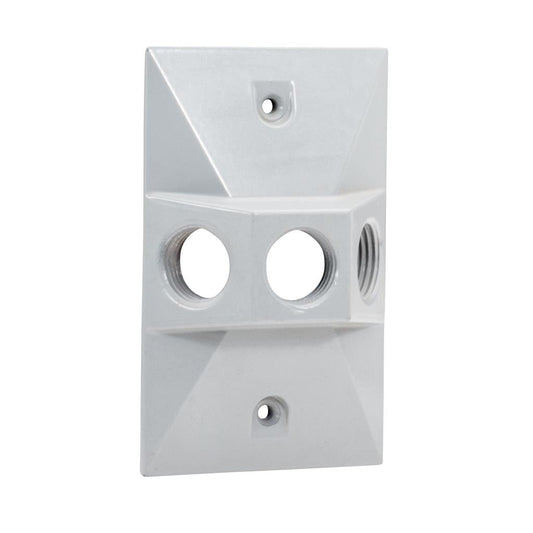

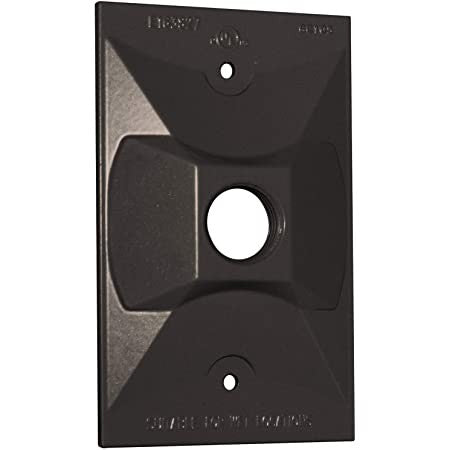

Start with the front of the installed box. A one-gang rectangular box, a two-gang box, and a 4-inch round junction box use different mounting arrangements. Matching the general shape is essential, but it does not prove that two parts share the same screw pattern, flange dimensions, or approved connection method.

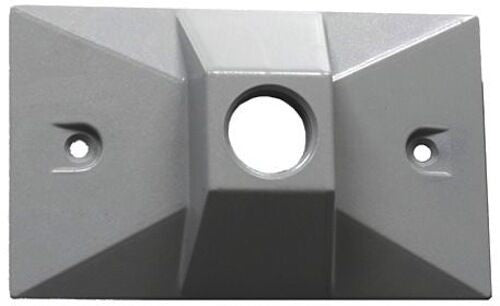

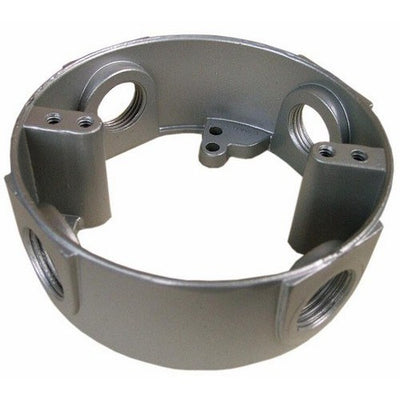

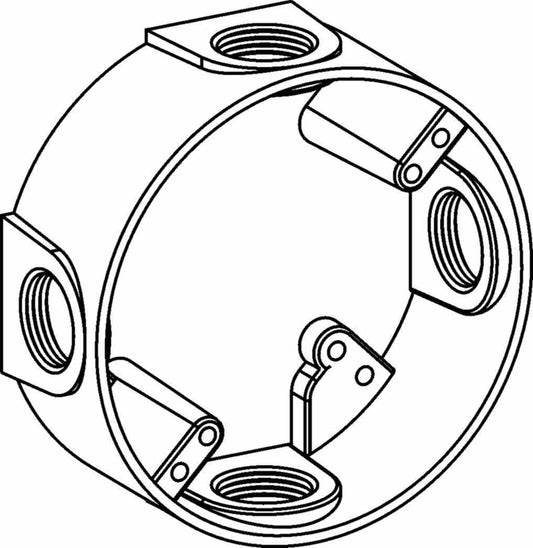

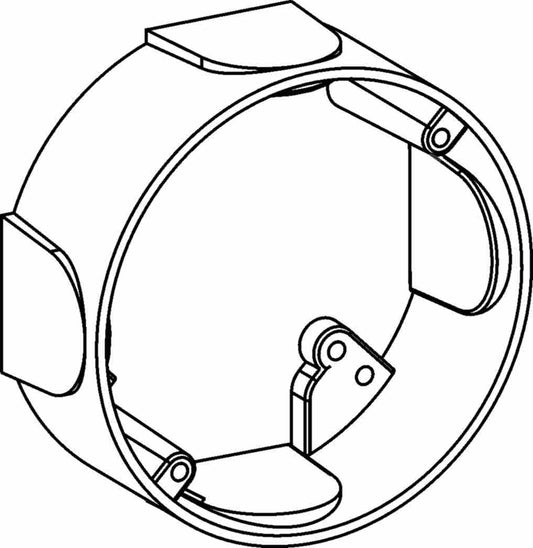

For an exterior light mounted to a round box, confirm that the selected ring and closure support the intended fixture arrangement. For a device box, check the number of gangs and the face required for the receptacle or switch. If the existing enclosure is damaged or no compatible ring is specified, replacing it with a suitable product from weatherproof electrical boxes may be safer than attempting to adapt mismatched components.

Check Extension Depth and Electrical Box-Fill Volume

Extra depth can help when an outdoor device, wire connections, or a revised wall surface leaves too little room at the front of the box. However, a deeper ring does not automatically establish a particular amount of usable wiring volume. Applicable box-fill calculations depend on the recognized volume of the assembled components and the conductors, device yokes, internal clamps, and grounding conductors inside.

For example, adding a bulky GFCI receptacle to a crowded one-gang location may call for more capacity than the existing box provides. Check the extension ring's marked or otherwise permitted volume and calculate the allowances for the complete installation under the applicable electrical requirements. Do not estimate box fill from the outside depth of the ring alone.

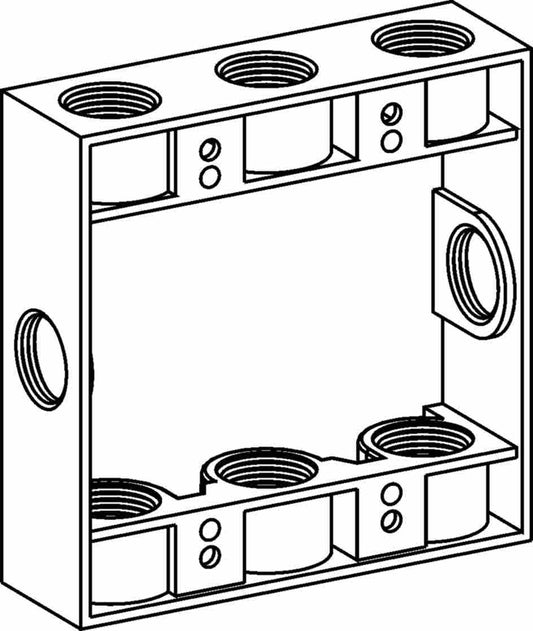

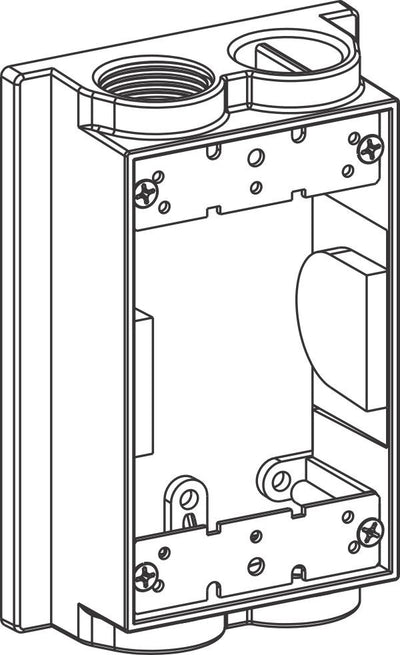

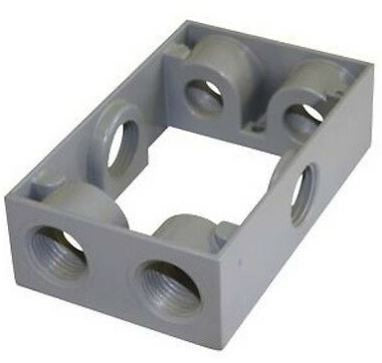

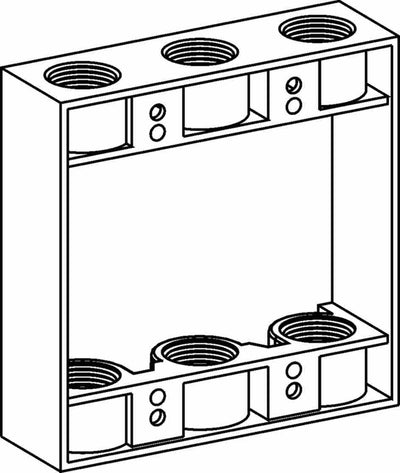

Select Threaded Hub Size and Layout Before Ordering

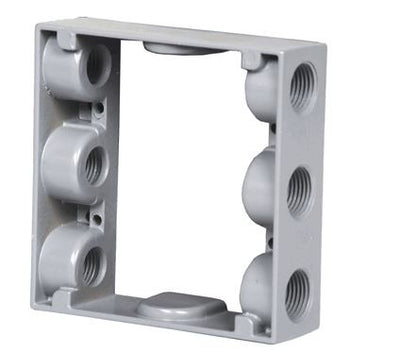

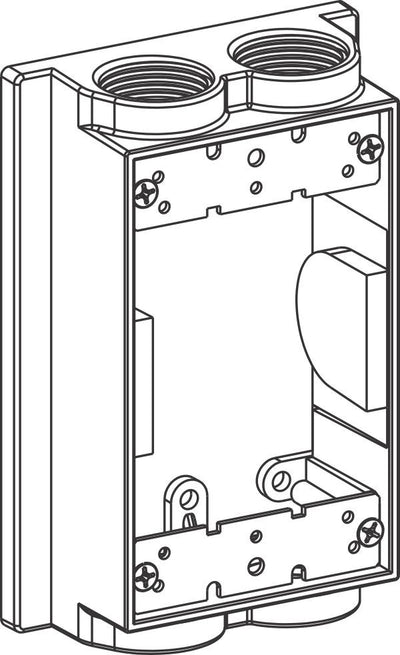

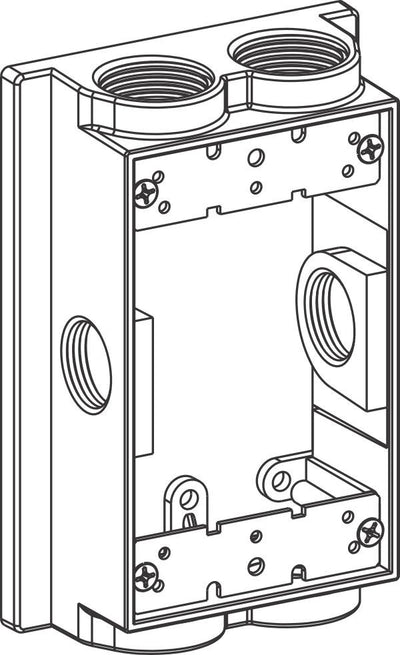

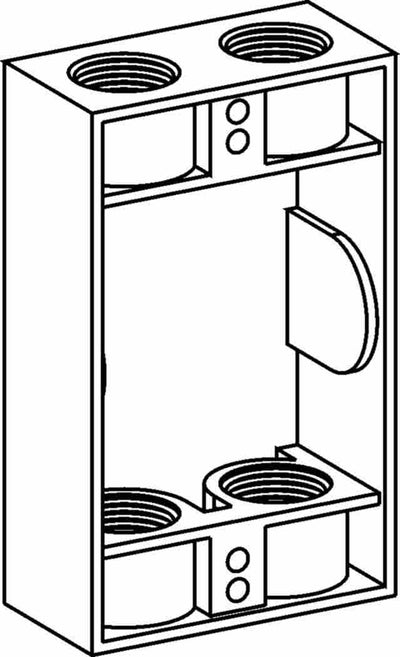

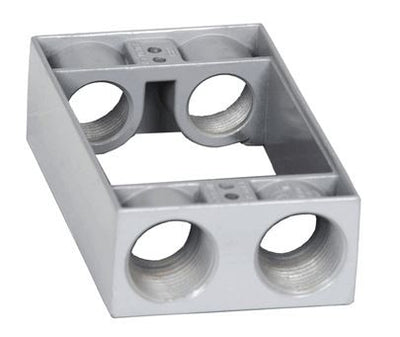

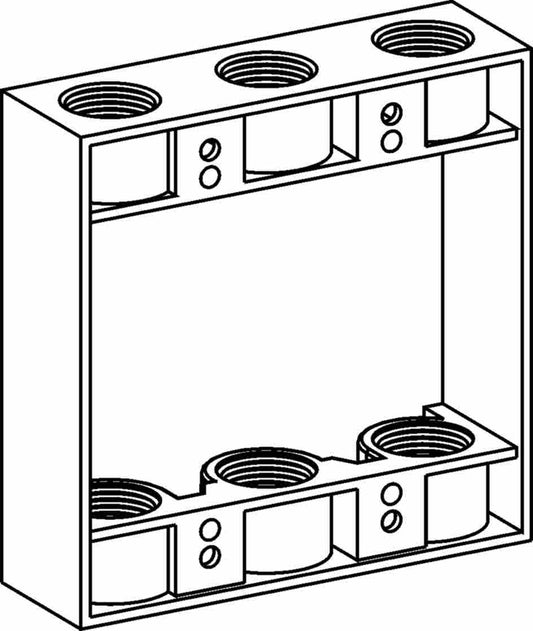

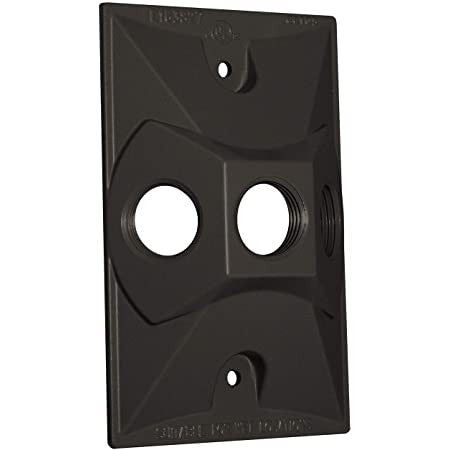

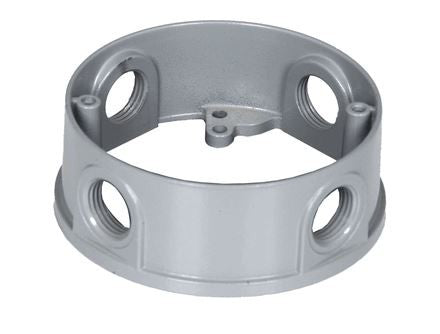

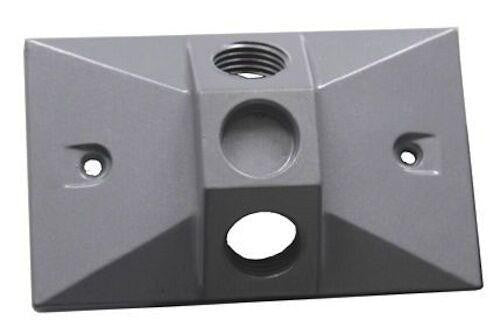

Some weatherproof extension rings provide threaded openings for additional conduit connections. The number of hubs and their trade sizes are separate specifications. A ring with several 1/2-inch hubs does not become equivalent to one using 3/4-inch hubs simply because both have the same outside dimensions.

Sketch the conduit paths before choosing a hubbed ring. Note where the incoming and outgoing raceways will enter, then check the manufacturer-approved fittings and closure plugs. Unused threaded entries must be closed as instructed to maintain the protection of the assembly. If the required conduit layout cannot be made with the available hub positions, choose a different compatible box-and-ring arrangement instead of altering a factory opening without authorization.

Coordinate Gaskets, Covers, and Outdoor Exposure

Adding an extension ring creates another joint in an outdoor electrical enclosure. The box-to-ring connection and the ring-to-cover connection both need suitable mating surfaces and sealing components. A properly rated ring cannot compensate for a cracked box flange, missing gasket, open conduit hub, or incompatible cover.

For a receptacle exposed to rain with a cord left connected, the final arrangement may require a listed while-in-use cover that can close over the plug and cord. Compare compatible weatherproof and in-use covers by device opening, gang count, mounting orientation, and usable plug clearance. A conventional flip lid and an in-use cover do not serve the same purpose under every exposure condition. Confirm what comes with the selected ring; gaskets, plugs, and fasteners are not necessarily included with every product.

Inspect Material, Mounting Support, and Bonding

Metal weatherproof rings are often used with compatible cast-metal boxes, but matching materials alone does not demonstrate approval for the entire installation. Check the product's construction, finish, environmental suitability, and specified hardware. At a coastal property or another corrosive site, the exact rating and fastener compatibility deserve particular attention.

The original box must also be properly secured. An added extension changes the distance between the enclosure and its cover or mounted device, so verify mechanical support and the manufacturer's permitted assembly. Where metal boxes or raceways form part of the equipment grounding path, confirm the required bonding method. Painted surfaces, loose screws, or incompatible hardware should never be assumed to provide reliable electrical continuity.

Extension Rings for Siding Changes and Exterior Retrofits

A renovation can leave a previously accessible outdoor box set back behind new siding or another finished surface. A compatible extension ring may help bring the front of the assembly to the intended position without removing the original enclosure. This works only when the existing box remains sound and the extension is approved for the mounting arrangement.

Do not assume that multiple rings can be stacked to reach any depth. Each additional interface can complicate mounting, alignment, bonding, and sealing. If the required projection exceeds what the approved ring arrangement can provide, a correctly sized replacement box may be the better solution. Record the existing box model and wall build-up before ordering retrofit parts.

Weatherproof Extension Ring Ordering Checklist

• Base box: Manufacturer or model, one-gang or two-gang configuration, or round format.
• Mounting interface: Flange dimensions, screw-hole pattern, and approved ring compatibility.
• Required depth: Actual device clearance and any eligible box-fill volume.
• Conduit connections: Threaded hub size, quantity, position, fittings, and closure plugs.
• Environmental protection: Appropriate location rating, gaskets, seals, and complete cover assembly.
• Grounding and support: Approved fastening and bonding provisions.
• Order contents: Check whether the required gasket, plugs, screws, and other accessories are included.

For repairs across multiple exterior locations, group the required rings by box shape, depth, and hub arrangement rather than ordering every location under a single part number. Installation and any required electrical modifications should be checked by a qualified electrician against manufacturer instructions and locally applicable requirements.

Weatherproof Extension Ring FAQs

Does an extension ring add usable electrical box volume?

It can, provided the ring's volume is eligible to be included in the box-fill calculation under the applicable rules. The added outside depth is not a substitute for a recognized volume figure. Calculate the complete assembly using the appropriate allowances for conductors, equipment grounds, devices, and clamps before relying on the extension for additional wiring space.

Will every one-gang weatherproof ring fit a one-gang box?

No. Gang count describes the general device arrangement, not the complete mounting interface. A ring still needs the correct flange, screw pattern, gasket seat, and approved relationship to the base box and cover. Compare the manufacturer's part information instead of assuming that two one-gang products are interchangeable.

Are gaskets and threaded hub plugs included?

Included accessories vary by product. Some rings are supplied with sealing or grounding components, while others require separate parts. Check the exact SKU and installation instructions, particularly when the ring has threaded hubs that will remain unused. Any required closure plugs must match the intended openings and exposure conditions.

Can a two-gang extension ring convert a one-gang box into two gangs?

Not as a general retrofit method. A larger ring does not create an approved two-gang mounting flange, suitable device support, or additional wiring volume in an incompatible base box. If two devices are required, specify a complete arrangement designed for that configuration rather than forcing a two-gang ring onto a one-gang enclosure.

Does adding a weatherproof extension ring make an outdoor outlet waterproof?

No. The ring is only one component of the enclosure. The final installation may also require a suitable weather-resistant receptacle, GFCI protection, compatible gasket and fittings, and a cover selected for the actual exposure and plugged-in condition. Every joint and opening in the completed assembly must be handled correctly.

Can two weatherproof extension rings be stacked?

Only when the manufacturer and applicable approval permit that exact arrangement. Stacking adds joints and can affect support, sealing, and bonding. If one compatible ring cannot provide enough depth or capacity, review a larger or deeper replacement enclosure instead of assuming that additional rings will be acceptable.
