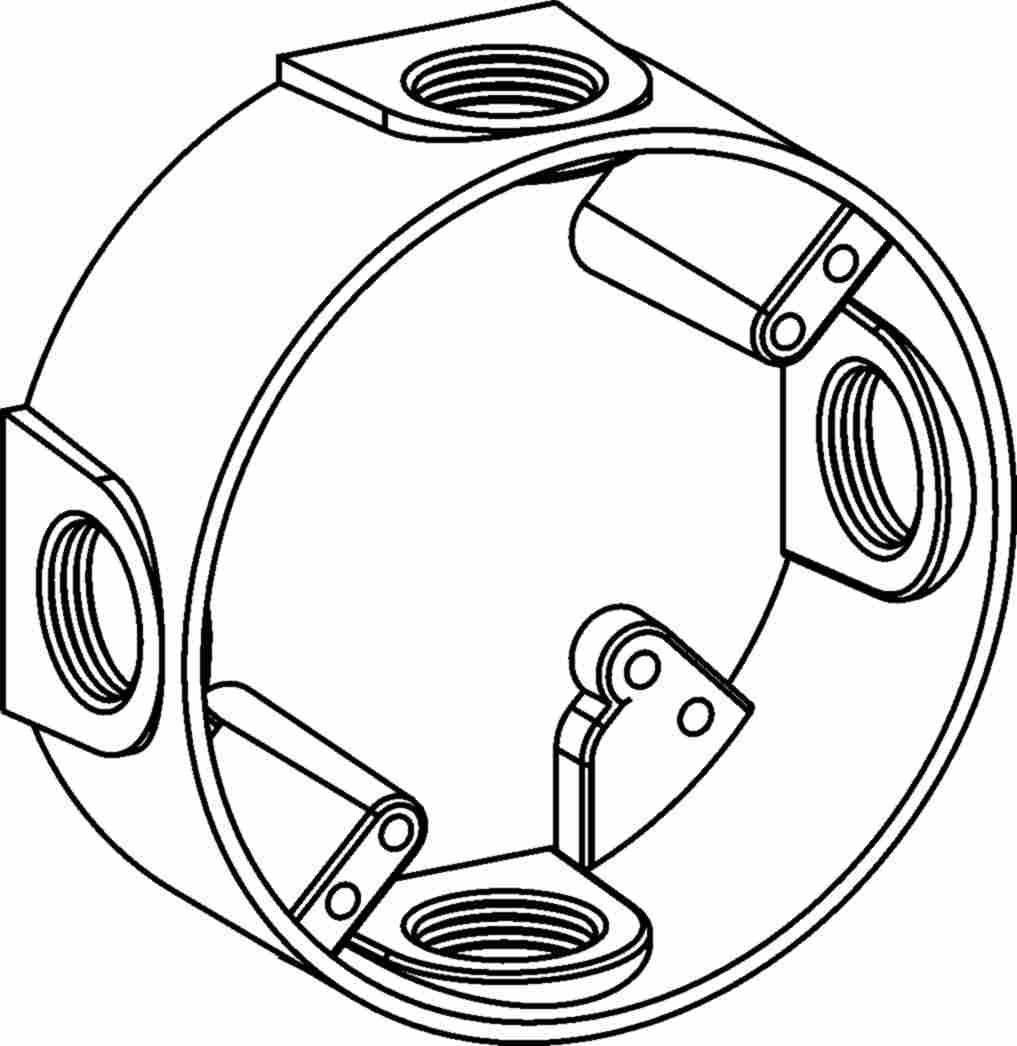

Orbit 4 in 4 in Round Weatherproof Extension Ring EXR504

Product Overview

The Orbit EXR504 is a 4 in round weatherproof extension ring for use with exterior weatherproof box assemblies. It is offered as a matching 4 in round extension or replacement component for outdoor device locations.

Constructed of die-cast copper-free aluminum with a gray powder-coat finish, the EXR504 includes four 4 in hubs.

Key Features

• 4 in round form factor
• Four 4 in hubs
• Die-cast copper-free aluminum construction
• Gray powder-coat finish
• Intended for weatherproof box or extension ring installations

What this part does

The EXR504 is a weatherproof extension ring sized for 4 in round box configurations. It provides an extension or replacement component intended to be used with exterior weatherproof box assemblies.

• Extends or replaces the cover/enclosure area of a 4 in round weatherproof box
• Supplied as a 4 in round extension ring with four 4 in hubs

Where to use it

The extension ring is intended for outdoor weatherproof box assemblies and exterior device locations where a 4 in round extension or replacement is required.

• Exterior device or receptacle locations using 4 in round boxes
• Replacement component for compatible weatherproof box assemblies
• Contractor stock for 4 in round weatherproof applications

Construction and finish

The EXR504 is die-cast from copper-free aluminum and finished with a gray powder coat, as specified by the product data.

• Die-cast copper-free aluminum body
• Gray powder-coat finish

Size and hub configuration

This part is specified as a 4 in round extension ring with four 4 in hubs. Confirm that the 4 in round gang shape and hub arrangement match the existing box and conduit layout before selection.

• Gang / shape: 4 in round
• Hub size: 4 in
• Hub count: 4 hubs

Installation and verification

Have qualified electrical personnel verify compatibility with the existing box, conduit, and local electrical codes prior to installation. Confirm model number, trade size, and mounting method before ordering.

• Confirm model: EXR504 and required quantity
• Verify physical compatibility with the existing weatherproof box and conduit layout
• Installation should be performed by qualified electrical personnel

Before You Order

Confirm the model number and that the 4 in round size and hub arrangement match your existing weatherproof box before ordering.

• Confirm model: EXR504
• Verify 4 in round size and hub alignment with project needs

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4 in 4 in Round Weatherproof Extension Ring EXR504. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
