How to Choose Recessed Light Trims

Choosing a recessed light trim starts with the lighting system above the ceiling, not with the finish you see from below. Identify the housing, light engine, or recessed fixture family first, then confirm the compatible aperture and trim series. After fit is established, choose the trim style based on the light pattern you need: comfortable general lighting, higher-output downward light, adjustable accent lighting, or wall washing.

• Comfortable general downlighting with reduced aperture glare: start with a baffle trim.
• A smooth optical surface and efficient downward distribution: compare reflector trims.
• Artwork, displays, sloped ceilings, or other directional applications: use a compatible adjustable or gimbal trim.
• Even illumination on a vertical surface: choose a wall-wash trim designed for the matching recessed system.
• Still selecting the rough-in component: start with recessed housings and cans before finalizing the trim.

Housing and Trim Compatibility Comes First

A 4-inch trim is not automatically compatible with every 4-inch recessed housing. Recessed systems can use different attachment methods, collar dimensions, light engines, reflector assemblies, and manufacturer-specific series. Two components can share the same nominal aperture and still fail to seat correctly or form the intended lighting assembly.

For a replacement project, identify the existing housing manufacturer, model or series, and aperture before shopping by appearance. For new construction, select the housing and light engine first and use their compatibility information to determine which trims belong with the system.

Decision rule: treat aperture as the first compatibility check, not the final one. Match by product family or explicit manufacturer compatibility before choosing finish or trim style.

Baffle vs. Reflector Trims

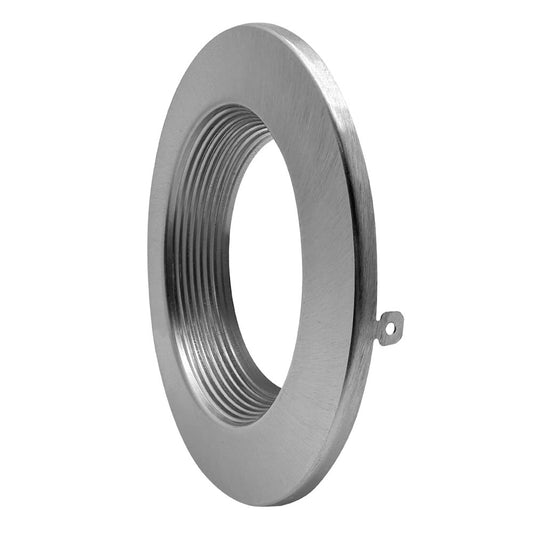

Baffle and reflector trims both create fixed downlighting, but they manage the visible aperture differently. Baffle trims use a ribbed or stepped interior surface that helps reduce perceived glare from the opening. They are a common choice where visual comfort and a softer ceiling appearance matter.

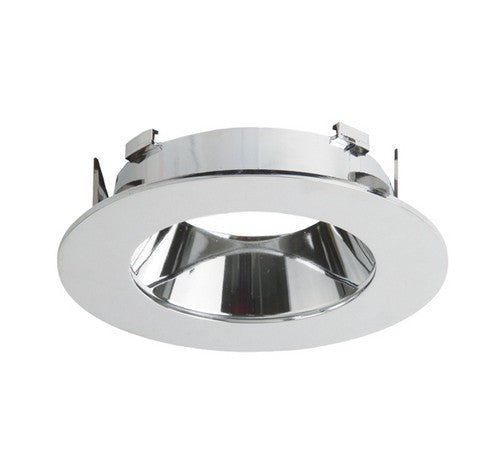

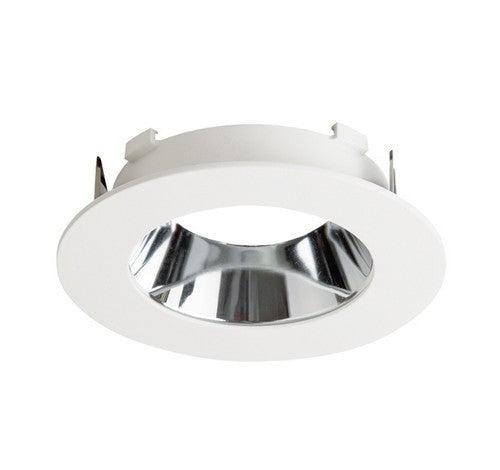

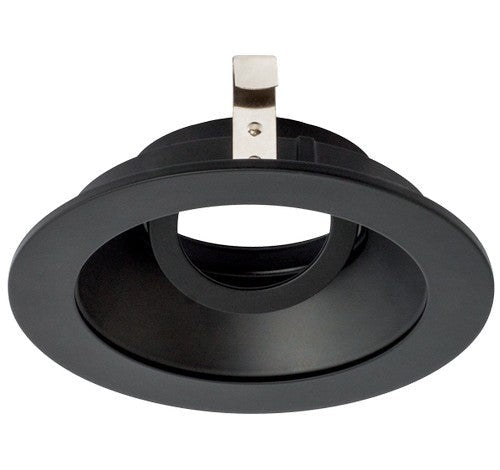

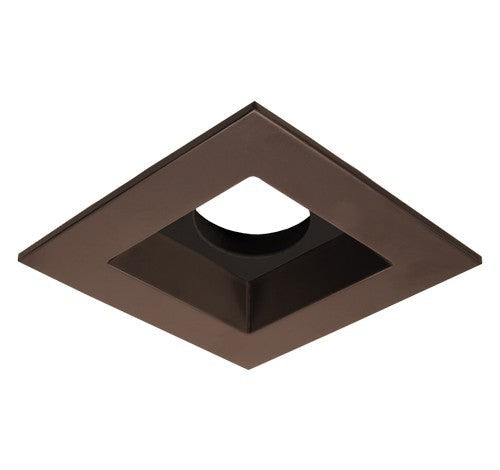

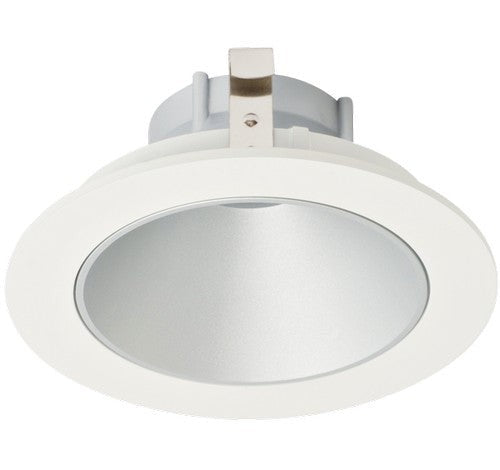

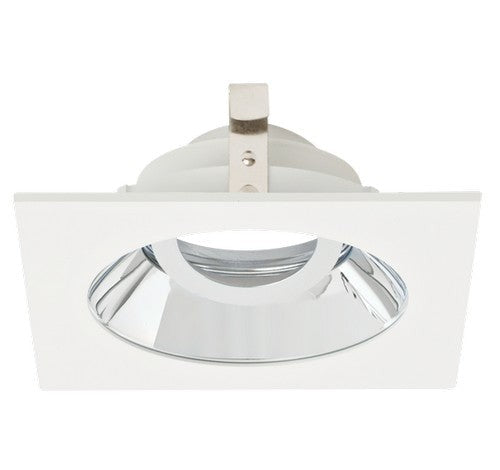

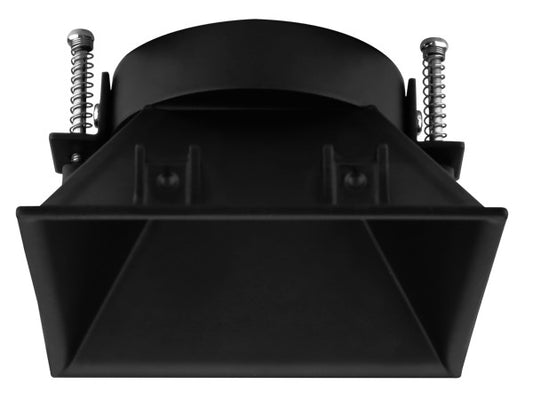

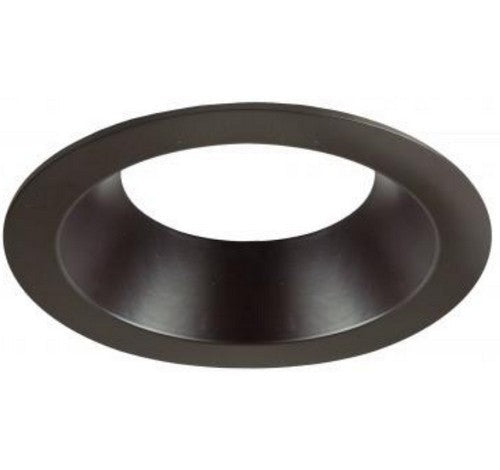

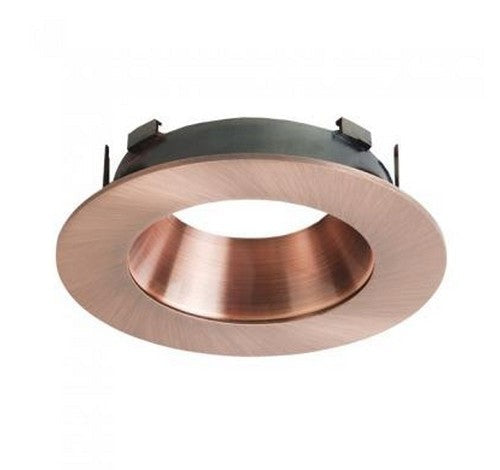

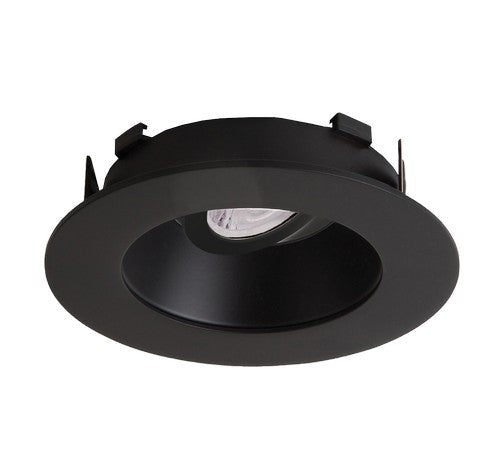

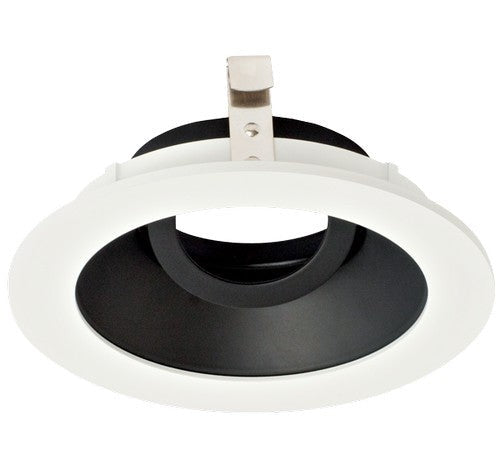

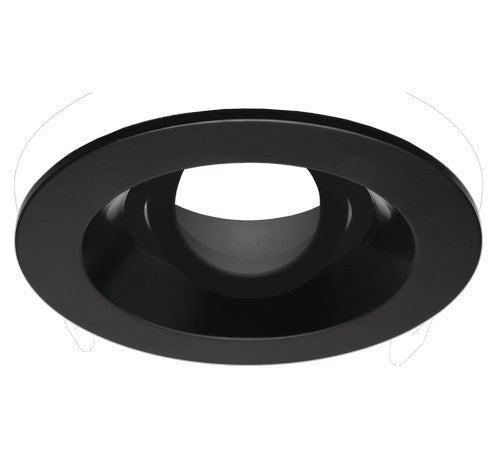

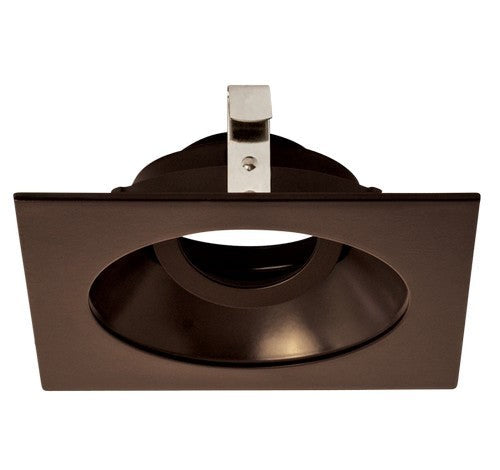

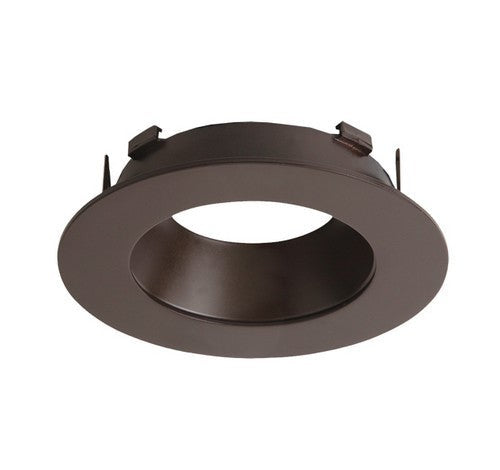

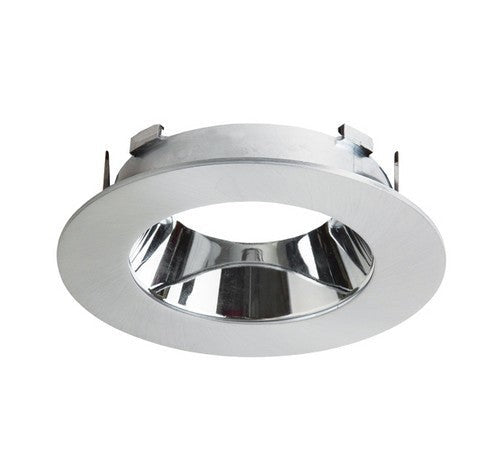

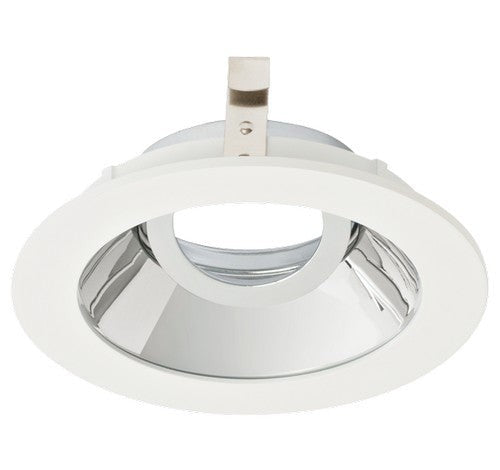

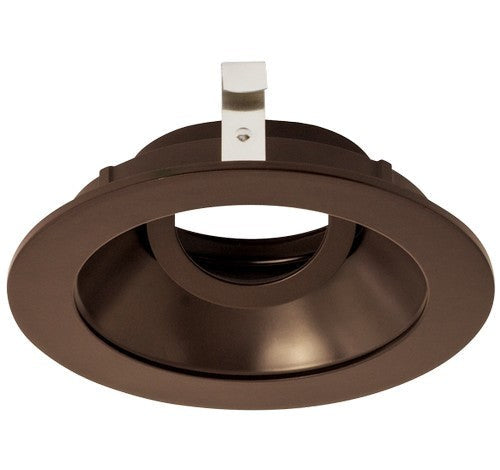

Reflector trims use a smoother reflective cone. That optical surface can help direct more light downward and is often selected where stronger task or general illumination is the goal. Reflectors may also be offered in white, clear, black, bronze, or other finishes depending on the compatible series.

Decision rule: choose a baffle when glare control is the priority; choose a reflector when the system calls for a smoother optical cone and efficient downward distribution.

Use Adjustable or Gimbal Trims When the Beam Needs Direction

A fixed trim sends the beam primarily downward. Adjustable and gimbal trims allow the lighting element or aperture to tilt so light can be aimed toward a specific feature instead.

That makes directional trims useful for artwork, retail displays, architectural details, counters, and sloped ceilings. The available tilt angle and beam direction vary by product, so the fixture location still needs to work with the intended target. A trim placed directly above the object may not have enough adjustment to create the desired angle.

Decision rule: if the lighting target is not directly below the ceiling opening, establish the aiming angle before choosing the trim and verify the adjustment range of the exact recessed system.

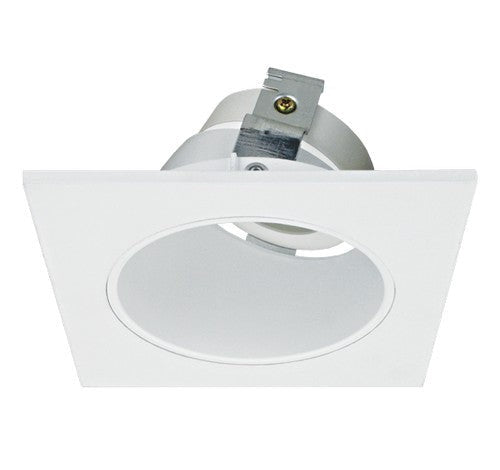

Wall-Wash Trims Need to Be Planned From the Wall

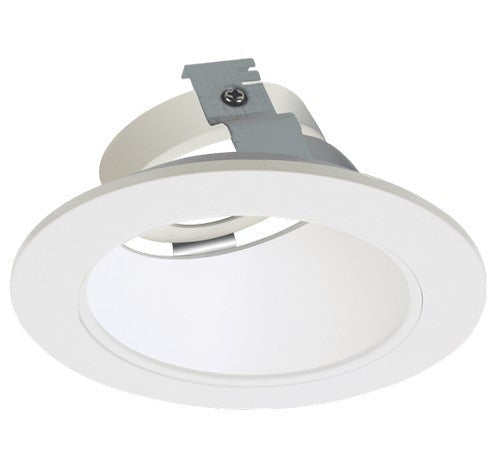

Wall-wash trims are designed to redirect light toward a vertical surface rather than producing a symmetrical pool directly below the fixture. Lumera's current recessed-trim assortment includes dedicated wall-wash products in multiple aperture sizes and finishes.

Placement matters as much as trim selection. The distance between the fixture and wall, spacing between adjacent fixtures, ceiling height, beam characteristics, and the surface being illuminated all affect uniformity. A wall-wash trim installed in a layout designed for standard downlights may create an uneven result.

Decision rule: choose wall-wash trims as part of the lighting layout rather than swapping them into completed downlight positions after the spacing has been established.

Trim Size, Aperture and Outside Diameter Are Different Measurements

Recessed lighting descriptions often use a nominal size such as 2-inch, 4-inch, 5-inch, or 6-inch. That size generally describes the recessed-lighting system or aperture class, not every physical dimension of the finished trim.

The outside flange can be wider than the nominal opening, and trimless systems use a different finished-ceiling detail altogether. On replacement work, measuring only the visible outside ring can therefore lead to the wrong part.

Decision rule: identify the housing or fixture aperture from the model information whenever possible. If measurements are necessary, distinguish the ceiling opening, aperture, and outside trim diameter instead of recording a single dimension.

Trimmed vs. Trimless Recessed Lighting

A conventional trim leaves a visible flange around the ceiling opening. It can simplify finishing and provides a clear visual transition between the fixture and ceiling. Trimless systems are detailed so the surrounding ceiling finish meets the aperture with little or no visible flange, creating a more integrated architectural appearance.

Trimless construction usually requires earlier coordination because the appropriate frame or mud-in component may need to be incorporated before the ceiling finish is complete. It isn't simply a decorative ring that can always be substituted at the end of a project.

Decision rule: if the design calls for a trimless aperture, establish that system during rough-in. For open-ceiling projects, coordinate the finish with the appropriate new-construction recessed components.

Finish Changes Both Appearance and the Perceived Aperture

White trims tend to blend into light-colored ceilings, allowing the opening to recede visually. Black or dark interiors create stronger contrast and can make the light source less visually prominent at certain viewing angles. Metallic and decorative finishes can instead make the recessed opening part of the room's design language.

The inside reflector and the outer flange may also use different finishes, so check the complete product configuration rather than selecting by one color name. On projects with dozens of fixtures, keeping trim series and finishes consistent helps the ceiling read as one coordinated system.

Decision rule: choose optical function first, then finish. Don't switch to an incompatible trim family solely to obtain a preferred color.

Retrofit, Canless and Traditional Housing Systems Are Different Paths

A traditional recessed assembly can consist of a housing, light source or LED engine, and separate trim. Retrofit and canless products can combine more of those functions into one assembly, which changes what needs to be ordered.

If an existing housing is staying in the ceiling and only its visible component needs replacement, a compatible trim is the right path. If the existing can is being converted to an integrated LED module, or the project does not need a conventional housing, browse retrofit and canless downlights instead.

Decision rule: determine whether you are replacing only the trim or changing the complete light source and mounting system before ordering.

Light Output and Dimming May Come From the Module, Not the Trim

A passive trim does not necessarily determine lumen output, color temperature, voltage, or dimming behavior. In multi-component recessed systems, those specifications may belong to the lamp, LED light engine, housing, or driver. Some products described as recessed trims, however, incorporate an LED source or other active components, so the exact product configuration matters.

For LED systems, verify the light engine and driver together with the trim. If dimming is required, match the driver or fixture to the correct control technology before selecting from compatible ELV and 0-10V dimmers.

Decision rule: don't assume changing a decorative trim changes electrical performance. Check which component actually establishes output, CCT, voltage, and dimming.

What to Confirm Before Ordering Recessed Light Trims

• Existing system: record the housing, fixture, light-engine, or manufacturer series.
• Aperture: verify the nominal recessed-lighting size.
• Compatibility: confirm the exact trim is approved or specified for the system.
• Trim style: baffle, reflector, adjustable/gimbal, wall wash, trimless, or another supported configuration.
• Light direction: fixed downlight, adjustable accent, or vertical-surface illumination.
• Attachment: verify the clips, springs, collar, or other mounting method used by the system.
• Finish: coordinate the aperture and flange with the ceiling and other fixtures.
• Location: verify any damp- or wet-location requirements on the complete fixture assembly.
• Light source: determine whether the trim is passive or includes a lamp, module, or LED light engine.
• Controls: where applicable, confirm the LED source and driver are compatible with the planned dimming method.

Recessed-light components should be treated as a complete system. Before a project quantity is ordered, verify the trim, housing, light engine, driver, and installation requirements together. This is particularly important on replacement jobs where the visible aperture may be the only part of the original fixture that can be inspected without opening the ceiling.

Recessed Light Trim FAQs

What is the difference between a baffle and reflector recessed trim?

A baffle trim uses a ribbed interior to reduce perceived aperture glare, while a reflector trim uses a smoother reflective cone to direct light downward efficiently. Both can work for general lighting, but the desired visual comfort and optical effect should guide the choice after housing compatibility is confirmed.

Can any 4-inch trim fit any 4-inch recessed housing?

No. Matching the nominal 4-inch size does not guarantee compatibility. Housing series, trim attachment, light engine, collar dimensions, and manufacturer design can differ. Identify the existing recessed housing and use a trim specifically listed or documented to work with it.

What is a gimbal recessed trim used for?

A gimbal or adjustable trim lets the beam tilt away from straight down. It is useful for accent lighting, sloped ceilings, artwork, displays, and architectural features. Check the exact adjustment range and beam characteristics because the fixture still needs to be positioned where it can aim effectively at the target.

What does a wall-wash recessed trim do?

A wall-wash trim redirects the recessed light toward a vertical surface to create more even illumination across walls, displays, shelving, or artwork. It should be specified with the fixture spacing and setback from the wall in mind rather than installed as a direct replacement for a standard downlight trim without checking the layout.

Can I change only the trim on an existing recessed light?

Yes, when the replacement trim is compatible with the existing housing, aperture, attachment system, and light source. If you also want to replace the light engine or convert the existing can to an integrated LED unit, a retrofit downlight may be the more appropriate product path.

Does the recessed trim determine the color temperature or brightness?

Not always. With traditional multi-component systems, lumen output and color temperature usually come from the lamp or LED light engine rather than the passive trim. Some integrated products combine trim and LED components, so check the exact listing to see which part establishes output, CCT, voltage, and dimming behavior.
