How to Choose LED Canopy Lights for Gas Stations, Parking Garages, and Covered Areas

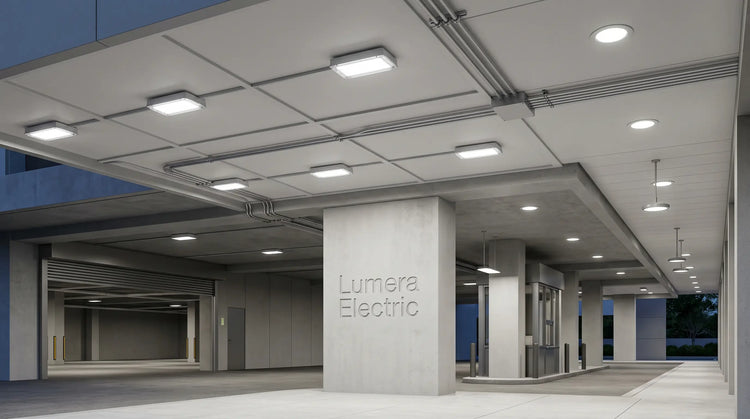

LED canopy lights belong under overhead structures, but the correct fixture depends on more than the square footage below. A fueling island needs usable light around pumps and payment terminals; a parking deck needs consistent coverage between bays, without harsh bright spots. The important buying decisions are mounting compatibility, photometric distribution, environmental exposure, and the controls or backup operation required by the project. Use these checks before choosing a model or replacing a group of older canopy fixtures.

Quick Picker: Match the Lighting Problem to the Right Fixture

• 12-foot garage ceiling with no recess: Check low-profile surface-mount compatibility and beam spread.
• 16-foot fuel-pump canopy: Start with downward coverage and the approved mounting arrangement.
• 10-foot covered drive-through: Compare glare and overlap between adjacent fixtures.
• Long building perimeter: Begin with LED wall pack lights rather than overhead canopies.
• Open parking lot beyond the roof: Plan LED area and parking lot lights.
• Sign beyond the covered structure: Consider aimable LED flood lights.

Recessed vs. Surface-Mount Canopy Lights: Start With the Ceiling

A fixture that fits a recessed fuel canopy may not fit under a concrete garage slab. Recessed designs require a compatible opening and space above the mounting plane; surface-mounted designs attach below a suitable structural surface, subject to the manufacturer's mounting instructions. A 12-foot parking-deck ceiling with no accessible cavity is a different installation from a metal canopy with an existing cutout.

Decision rule: If there is no verified recess or overhead clearance, shortlist a compatible surface-mount arrangement rather than ordering a recessed fixture on appearance alone. For replacements, record the old cutout, junction-box location, fixture footprint, support points, and available depth. Confirm the selected SKU's mounting method and hardware before purchasing.

Canopy Light Lumens and Distribution: Eliminate Dark Gaps

A 14-foot-high canopy covering six fueling positions needs light between pumps, not just directly beneath each luminaire. Watts measure electrical demand; delivered lumens and optical distribution help determine what reaches the working plane. Fixture spacing, canopy height, and shielding also affect uniformity and glare. Doubling wattage without examining the beam can leave the same shadows while making bright spots uncomfortable.

If an initial layout produces dark lanes between fixture positions, revise spacing or distribution before selecting more wattage. For a multi-bay project, request an IES photometric file and review maintained illuminance, uniformity, and glare against the approved lighting plan. Use that layout to select output and quantity instead of a generic HID-to-LED wattage chart.

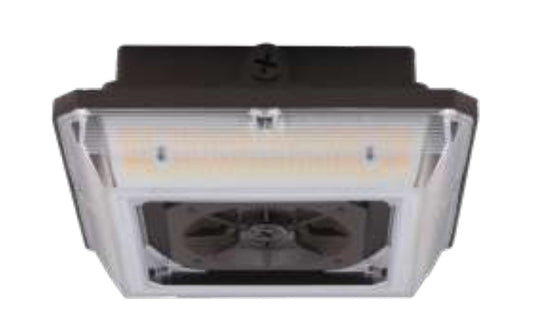

Selectable Wattage and CCT: Check the Settings That Actually Matter

On a 20-fixture parking-deck retrofit, adjustable output can help align light levels across bays with different heights or spacing. Lumera's current canopy listings include models with selectable wattage, selectable color temperature, or both, but those features do not apply to every fixture. An installer-set wattage switch is not the same thing as continuous dimming.

• Delivered lumens: Check output at the selected wattage.
• CCT: Match the intended light appearance across the zone.
• Voltage: Verify the driver's accepted input range.
• Dimming: Confirm protocol and driver compatibility.
• DLC qualification: Verify the precise model if a utility rebate depends on it.

If the project requires different fixed light levels by zone, choose a model with verified settings and document each position on the fixture schedule.

Wet-Location, Washdown, and Fuel-Canopy Safety Ratings

The underside of a 16-foot fuel canopy can receive wind-driven rain, while a parking structure may also face spray during cleaning. A covered ceiling is not automatically a dry location. Dry, damp, and wet classifications have different installation limits; an IP number provides additional ingress information but does not replace a required US location listing. Pressure washing can create conditions beyond an ordinary wet-location rating.

If the fixture can be struck by rain or cleaning water, specify a luminaire listed for the actual exposure and permitted orientation. Fuel dispensing sites also require a separate review of hazardous-location classifications: standard canopy lights are not substitutes for equipment approved for a classified area. Have the electrical designer or local authority confirm the site classification before the final order.

Photocells, Dimming, and Emergency Backup: Separate the Functions

In a 28-space parking garage, lighting may need to follow a nighttime schedule, dim during low occupancy, and maintain specified emergency illumination during an outage. Those are separate requirements. A photocell responds to daylight; an occupancy sensor responds to activity; a compatible dimming driver adjusts output. Some canopy models have dedicated emergency-backup variants, but an emergency option does not by itself establish compliance with an egress plan.

Decision rule: If the approved project drawings require emergency illumination, select and verify the specified backup solution before finalizing the normal-lighting controls. Check the model's emergency output, duration, testing provisions, and listing with the electrical professional. Record sensor and driver requirements for each lighting circuit.

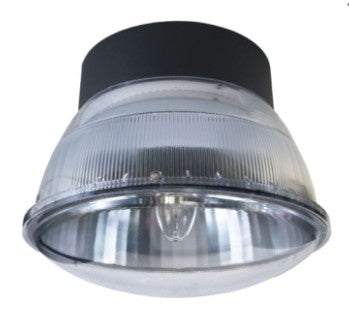

Replacing Metal-Halide Canopy Fixtures: Measure Before You Order

For an 18-fixture retrofit under an 11-foot canopy, take one representative fixture down only after documenting its wiring, supply voltage, mounting arrangement, and opening dimensions. A direct watt-for-watt replacement is unreliable: older metal-halide output and LED distribution differ, and existing ballasts or control components may require removal or changes under the replacement instructions. Look for corrosion, damaged boxes, and limited access to fasteners.

If the existing recess, support, or electrical connection cannot accept the proposed LED unit, change the fixture or approved mounting method rather than improvising an adapter. A licensed electrician should verify line-voltage work, grounding, appropriately rated mounting hardware, and applicable code requirements. Add the required installation accessories to the job schedule before ordering.

Ordering LED Canopy Fixtures for a Multi-Site Project

For a 30-location retrofit, group quantities by mounting method, voltage, output setting, controls, wet-location rating, and emergency requirement. Lumera offers trade accounts for business buyers and volume or project quotes. Approved businesses may separately apply for Net-30 credit terms. When the schedule is coordinated, submit your canopy fixture schedule for a project quote.

Request an LED Canopy Lighting Quote

For parking decks, fuel canopies, or repeated covered entrances, request a canopy lighting quote with details that distinguish similar-looking fixtures. Have these ready:

• Fixture locations, canopy heights, and quantities
• Recessed openings or surface-mount requirements
• Supply voltage and target light levels
• Wet-location, control, and emergency-backup requirements
• Preferred SKU or an existing fixture schedule

This gives the project team a usable basis for comparing the correct configurations.

LED Canopy Light FAQs

What is the difference between recessed and surface-mount LED canopy lights?

Recessed canopy lights sit within a suitable ceiling opening; surface-mount fixtures attach below the mounting surface. Recessed units need compatible cutout dimensions and clearance above the deck, while surface mounting can work where that cavity is unavailable. Neither mounting style automatically determines brightness. Verify the structural support, electrical connection, and the exact fixture's approved installation method before ordering.

How many lumens do I need for a gas station canopy or parking garage?

Choose lumen output from the mounting height, spacing, optical distribution, and required maintained light levels, not from the canopy area alone. A 12-foot deck and an 18-foot fueling canopy can require very different layouts. An IES-based photometric plan should account for illuminance, uniformity, and glare. A simple wattage chart cannot reliably establish the right fixture count.

Is selectable wattage the same as dimming on an LED canopy fixture?

No. Selectable wattage usually sets a fixed operating level using a switch or other approved adjustment, while dimming requires a compatible driver and control method. A model may offer one feature, both, or neither. Check the fixture specification before selecting a control; Lumera's dimmer compatibility guide explains why 0-10V and phase-cut methods are not interchangeable.

Can a damp-rated canopy light be used where wind-driven rain reaches it?

No. If water can drip, splash, or flow onto the luminaire, select a model listed for the applicable wet-location conditions. A roof does not always protect the underside from wind-driven rain. An IP rating may help assess sealing, but it does not replace the required location listing. See Lumera's IP ratings guide for the distinction.

Do LED canopy lights include a photocell or emergency battery backup?

Not all of them. Some fixtures include or accept a photocell, while others rely on a separate circuit control; emergency-backup versions are distinct configurations. A photocell does not provide emergency lighting during a power failure. When dusk-to-dawn operation is needed, review compatible photocells and the exact fixture's provisions. Emergency compliance must be checked against the approved design and product listing.
