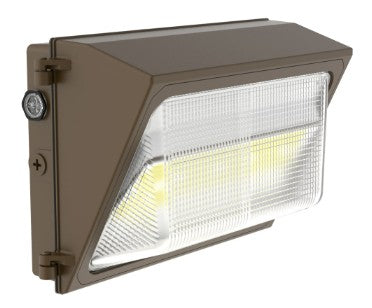

Westgate 80W/100W/120W 16,800LM Max 5000K LED Wall Pack WMXE-MD-80-120W-50K-P

Product Overview

The Westgate WMXE-MD-80-120W-50K-P is a commercial LED wall pack with selectable wattage (80W, 100W, 120W) and a rated efficacy of 140 lumens per watt. At the 120W setting, the fixture produces up to 16,800 lumens based on the stated efficacy and wattage.

The fixture accepts 120–277V input and supports 0–10V dimming for integration with compatible commercial lighting controls.

Key Features

• Selectable wattage: 80W / 100W / 120W from one SKU
• 140 LM/W efficacy
• 5000K color temperature
• Universal 120–277V input
• 0–10V dimming
• UPC: 845060087376

What this wall pack does

The WMXE-MD-80-120W-50K-P is a wall-mounted LED fixture intended for commercial exterior use. It provides selectable wattage to cover multiple output needs from a single stocked model.

• Selectable outputs: 80W, 100W, 120W
• Maximum lumen output stated as up to 16,800 lm at 120W (calculated from 140 LM/W × 120W)
• Color temperature: 5000K

Light output and efficacy

The fixture is specified at 140 lumens per watt. Selecting the 120W setting yields the stated maximum lumen output when multiplying wattage by efficacy.

• Efficacy: 140 LM/W
• Maximum lumen output (at 120W): up to 16,800 lm

Voltage and control compatibility

The fixture supports common commercial branch voltages and 0–10V dimming interfaces for compatible controls.

• Input voltage: 120–277V
• Dimming: 0–10V compatible

Typical applications

Typical uses listed for this product include building entrances and perimeters, parking-area edges, security and safety lighting, and retrofitting wall-mounted HID fixtures.

• Building entrances and perimeters
• Parking-area edges
• Security and safety lighting
• Wall-mounted HID retrofits

Before You Order

Verify the model, required quantity, mounting height, and whether a photocell or other control device is needed for your installation.

• Confirm desired selectable wattage setting before installation
• Determine if a photocell or other control is required for dusk-to-dawn operation
• Ensure compatibility with your 120–277V branch circuit and 0–10V control wiring

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Westgate 80W/100W/120W 16,800LM Max 5000K LED Wall Pack WMXE-MD-80-120W-50K-P. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
