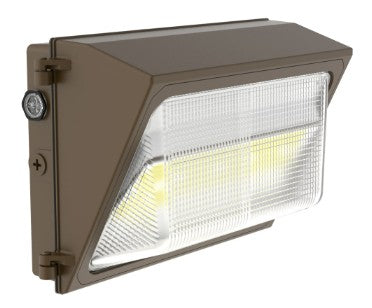

Westgate 25W/45W/65W 9,100LM Max 3000K/4000K/5000K LED Wall Pack WMXE-MD-25-65W-MCTP-P

Product Overview

The Westgate WMXE-MD-25-65W-MCTP-P is an LED wall pack with field-selectable wattage (25W, 45W, 65W) and color temperature (3000K, 4000K, 5000K). It delivers up to 9,100 lumens at 140 lumens per watt and operates on 120–277V with 0–10V dimming compatibility.

Designed for building exteriors, entrances, perimeters and HID retrofits, this fixture gives contractors a single SKU that covers multiple output and appearance requirements at install.

Key Features

• Selectable wattage: 25W / 45W / 65W (one fixture covers multiple output needs)
• Selectable CCT: 3000K / 4000K / 5000K set at installation
• High efficacy: 140 LM/W
• Electrical: 120–277V input and 0–10V dimming
• Application-ready for building perimeters, entrances, parking-area edges, security lighting, and wall-mounted HID retrofits

What this fixture does

The WMXE-MD-25-65W-MCTP-P is an exterior LED wall pack intended to provide security and area illumination for building exteriors, entrances and perimeter zones. It is also suitable for replacing wall-mounted HID fixtures where a sealed LED solution is preferred.

Light output and efficiency

The fixture offers selectable outputs that allow one SKU to serve multiple lumen requirements. At its highest setting it produces up to 9,100 lumens with a rated efficacy of 140 lumens per watt.

• Selectable wattages: 25W, 45W, 65W
• Efficacy: 140 LM/W
• Maximum lumen output: up to 9,100 lm (at highest wattage setting)

Voltage and controls

This wall pack accepts a wide commercial input range and integrates with standard 0–10V lighting controls for dimming and energy management.

• Input voltage: 120–277V
• Dimming: 0–10V compatible

Selectable settings and installation

Color temperature and power output are set at install rather than ordered separately, giving flexibility on job sites and reducing SKU complexity for contractors.

• Selectable color temperatures: 3000K, 4000K, 5000K
• Selectable wattage: 25W / 45W / 65W

Recommended applications

Use this wall pack where dependable exterior illumination is required for safety, security and visibility. It is appropriate for new installations and for retrofitting wall-mounted HID fixtures.

• Building entrances and perimeters
• Parking-area edges
• Security and safety lighting
• Wall-mounted HID retrofits

Before You Order

Confirm the model number and quantity required before ordering. Verify mounting height, mounting method and whether a photocell or dusk-to-dawn control is required for your installation.

• Confirm desired CCT (3000K / 4000K / 5000K) and wattage setting will be selected at install
• Check compatibility with existing branch circuit voltage (120–277V) and 0–10V control wiring if dimming is required
• For HID retrofits, confirm wall-back box and mounting details
