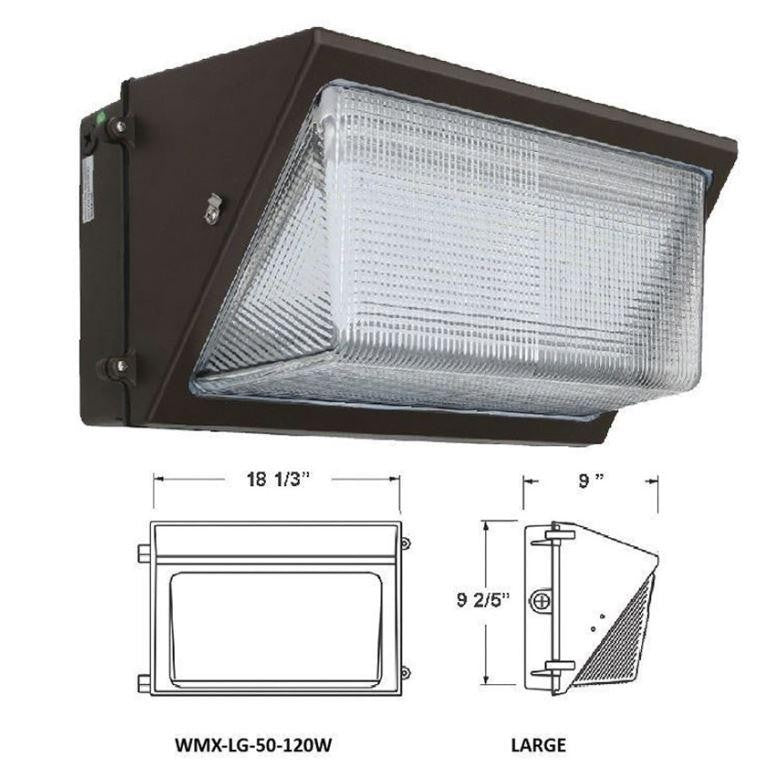

Westgate 50W/80W/100W/120W 4000K LED Non-Cutoff Wall Pack Dark Bronze WMX-LG-50-120W-40K

Product Overview

The Westgate WMX-LG-50-120W-40K is an LED non-cutoff wall pack in a dark bronze finish with field-selectable outputs of 50W, 80W, 100W and 120W. It provides 4000K color temperature, a reported efficacy of 130 lumens per watt, and operates on 120–277V.

Typical applications include exterior building entrances, perimeter and security lighting and retrofit replacements for wall-mounted HID fixtures.

Key Features

• Field-selectable wattage: 50W / 80W / 100W / 120W
• Listed efficacy: 130 lumens per watt
• 4000K color temperature
• 120–277V input
• Non-cutoff optics for broad forward and downward distribution

Function and intended use

The WMX-LG-50-120W-40K is a non-cutoff wall pack intended for exterior wall-mounted illumination where broad forward and downward light distribution is desired. Common uses include building entrances, perimeter lighting and security illumination; it is also used as a retrofit option for wall-mounted HID fixtures.

• Non-cutoff optics provide wide forward and downward distribution for area coverage
• Dark bronze finish for typical commercial exteriors

Light output and efficiency

This model offers four field-selectable wattage settings. The product listing specifies an efficacy of 130 lumens per watt and a 4000K color temperature.

• Selectable wattages: 50W / 80W / 100W / 120W
• Efficacy: 130 lm/W (as listed)
• Color temperature: 4000K

Electrical requirements and controls

The fixture is specified for 120–277V input. If you require photocell or other control devices, confirm those needs as they are not listed as included with this SKU.

• Input voltage: 120–277V
• Photocell or dusk-to-dawn controls are not listed as included — verify and source separately if required

Mounting and installation considerations

Plan mounting location and height to achieve the desired coverage. The selectable-wattage feature allows one SKU to serve different lumen requirements, which can simplify staging and replacements.

• Confirm mounting height to achieve required light levels
• Suitable for wall-mounted installations and HID retrofit replacements

Key specifications

Reference the core product identifiers and attributes for ordering or specification.

• Brand: Westgate
• Model / SKU: WMX-LG-50-120W-40K
• Product type: LED Non-Cutoff Wall Pack
• Wattage (selectable): 50W / 80W / 100W / 120W
• Efficacy: 130 lm/W
• Color temperature: 4000K
• Voltage: 120–277V
• UPC: 845060074383

Before You Order

Confirm model number, quantity and preferred wattage setting before ordering.

• Verify required wattage setting for each location (50W / 80W / 100W / 120W)
• Confirm mounting height and coverage needs
• Determine if a photocell or other control device is required (not listed as included)
