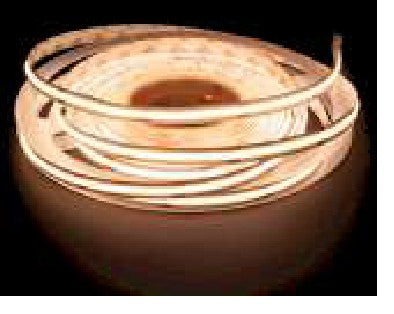

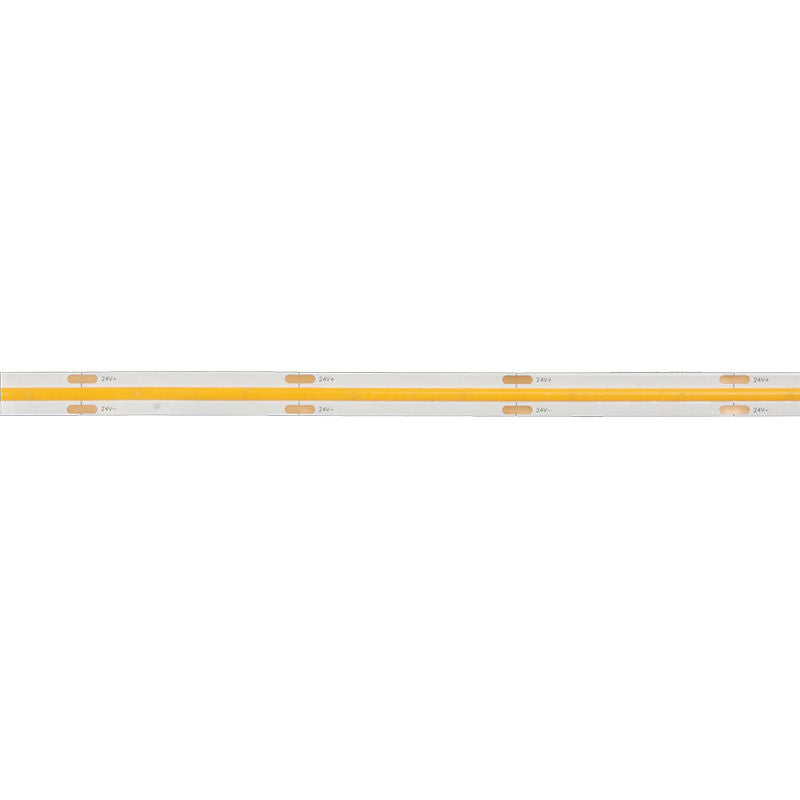

Westgate 3W per ft 290~340LM per ft 2700K/3000K/3500K/4000K/5000K/6500K COB LED Tape Light ULR-OT-98F-HO-COB-27K

Product Overview

The Westgate ULR-OT-98F-HO-COB-27K is a high-output COB LED tape light delivering 3W per foot and 290–340 lumens per foot. It provides selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K, 6500K) and CRI 90 for accurate color rendering.

Engineered for wet and washdown environments, the tape is IP67 rated and operates at 24VDC (LED driver required). It is dimmable using a magnetic driver and offers 120° beam spread for linear accent and task lighting.

Key Features

• 3W per ft; 290–340 LM per ft output
• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K / 6500K
• High color rendering: CRI 90
• IP67 rated for wet locations
• 24VDC low-voltage operation (LED driver required)
• Dimmable using a magnetic driver
• Efficacy: 96–113 LM/W per ft
• 120° beam angle; COB LED construction

What this product does

The ULR-OT-98F-HO-COB-27K is a continuous COB (chip-on-board) LED tape designed to provide uniform linear illumination with high output. At 3 watts per foot it produces between 290 and 340 lumens per foot and a 120° beam angle, suitable for accent, task, and architectural runs where consistent, bright linear light is required.

Selectable color temperature hardware lets you set the installation to warm or cool white (2700K through 6500K) without changing fixtures.

• COB construction for continuous line-of-light appearance
• Selectable CCT across six preset temperatures

Typical applications

This tape light is specified for cove and under‑cabinet lighting, millwork and shelving, architectural accent runs, and display or task lighting. The IP67 rating also makes it appropriate for wet locations and washdown areas where a protected linear light is needed.

• Cove and indirect lighting
• Under-cabinet and task illumination
• Millwork, shelving, and display lighting
• Outdoor accents and washdown-capable installations

Electrical and dimming requirements

The product is low-voltage 24VDC and requires a compatible LED driver. Dimming is supported when paired with a magnetic driver as specified by the manufacturer.

Confirm driver capacity and control method for length and run configuration to ensure proper voltage drop management and dimming performance.

• Operating voltage: 24VDC (LED driver required)
• Dimmable using a magnetic driver (per manufacturer recommendation)

Environmental and ingress protection

The tape carries an IP67 rating, indicating it is sealed against ingress from dust and can withstand temporary immersion in water. That rating supports installations in wet or exposed environments when mounted and connected according to project requirements.

• IP67 — dust-tight and protected against immersion
• Suitable for outdoor or washdown-capable linear lighting applications

Technical specifications

Key measured and identification details for specifying and ordering the ULR-OT-98F-HO-COB-27K are listed below.

• Wattage: 3W per ft
• Lumens: 290–340 LM per ft
• Efficacy: 96–113 LM/W per ft
• Color temperatures: 2700K / 3000K / 3500K / 4000K / 5000K / 6500K (switchable)
• CRI: 90
• Beam angle: 120°
• IP rating: IP67
• Voltage: 24VDC (driver required)
• Dimming: Dimmable with magnetic driver
• LED type: COB

Before You Order

Confirm the model number and required quantity before ordering. Verify channel or surface fit, driver and controller compatibility, and run length/voltage drop considerations for your installation.

• Confirm LED driver selection (24VDC) and dimming method
• Verify mounting channel or surface compatibility with COB tape profile
• Plan run lengths to account for voltage drop and required power

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Westgate 3W per ft 290~340LM per ft 2700K/3000K/3500K/4000K/5000K/6500K COB LED Tape Light ULR-OT-98F-HO-COB-27K. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
