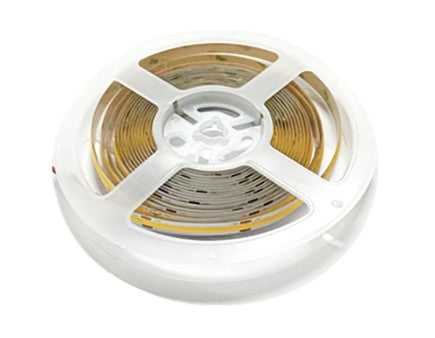

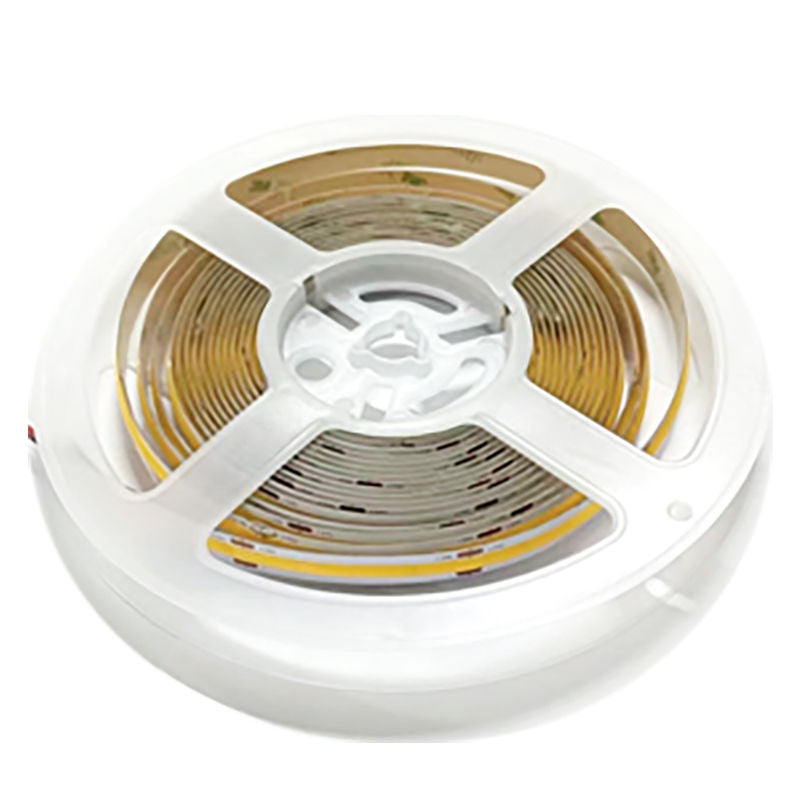

Westgate 3W per ft 290~340LM per ft 2700K/3000K/4000K/5000K/6500K COB LED Tape Light ULR-IN-98F-HO-COB-65K

Product Overview

The Westgate ULR-IN-98F-HO-COB-65K is a COB LED tape light that produces 3 watts per foot and 290–340 lumens per foot with selectable color temperatures (2700K, 3000K, 4000K, 5000K, 6500K).

It is rated IP20 for indoor protected locations, operates at 24VDC (requires a separate LED driver), and is dimmable when used with a compatible magnetic driver.

Key Features

• 3W per ft; 290–340 LM per ft
• Selectable CCT: 2700K / 3000K / 4000K / 5000K / 6500K
• High color rendering: CRI 90
• Efficacy: 96–113 LM/W per ft
• 24VDC operation — LED driver required
• Dimmable with a compatible magnetic driver
• 120° beam angle
• Indoor use: IP20

What this product is for

The ULR-IN-98F-HO-COB-65K is a continuous COB (chip-on-board) LED tape light intended for indoor accent and task lighting where a narrow linear source is desired. Typical uses include cove lighting, under-cabinet illumination, millwork and shelving, architectural accent lines, and display or task lighting.

• Cove and under-cabinet applications
• Millwork, shelving, and display lighting
• Situations requiring selectable CCT and CRI 90

Performance and light output

The strip produces 290–340 lumens per foot at 3 watts per foot, with an efficacy range listed as 96–113 LM/W per ft. It offers a 120° beam angle and a CRI of 90 for color-critical applications.

• Lumen output: 290–340 LM/ft
• Power: 3W/ft
• Efficacy: 96–113 LM/W per ft
• CRI: 90
• Beam angle: 120°

Electrical and dimming requirements

This product operates at 24VDC and requires an external LED driver. The manufacturer specifies dimming compatibility with a magnetic driver; confirm the chosen driver and control method match the project's dimming requirements.

• Voltage: 24VDC — LED driver required
• Dimming: compatible with a magnetic driver (confirm controller compatibility)

Installation and compatibility notes

Verify the tape’s width and profile for your mounting channel or surface. Check driver sizing for total run length and ensure installation is in protected indoor locations because the strip carries an IP20 rating.

• IP rating: IP20 — intended for protected indoor use
• Confirm channel/profile fit before ordering
• Verify driver capacity for planned run length

Key specifications

Use these SKU-specific technical points when specifying or ordering the ULR-IN-98F-HO-COB-65K.

• Model / SKU: ULR-IN-98F-HO-COB-65K
• Series: ULR-IN-98F-HO-COB
• LED type: COB
• Selectable CCT: 2700K, 3000K, 4000K, 5000K, 6500K
• Wattage: 3W per ft
• Lumens: 290–340 LM per ft
• CRI: 90
• Voltage: 24VDC (LED driver required)
• Efficacy: 96–113 LM/W per ft
• Beam angle: 120°
• IP Rating: IP20
• UPC: 845060085754

Before You Order

Confirm model, required quantity, channel/profile fit, and select a compatible 24VDC LED driver sized for the total run.

• Confirm channel or surface fit for the tape light
• Specify a 24VDC driver sized for total run length and load
• Confirm dimmer/controller compatibility with magnetic driver dimming
