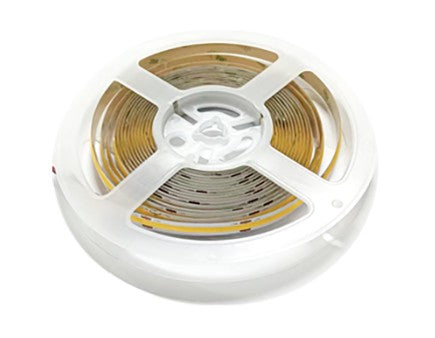

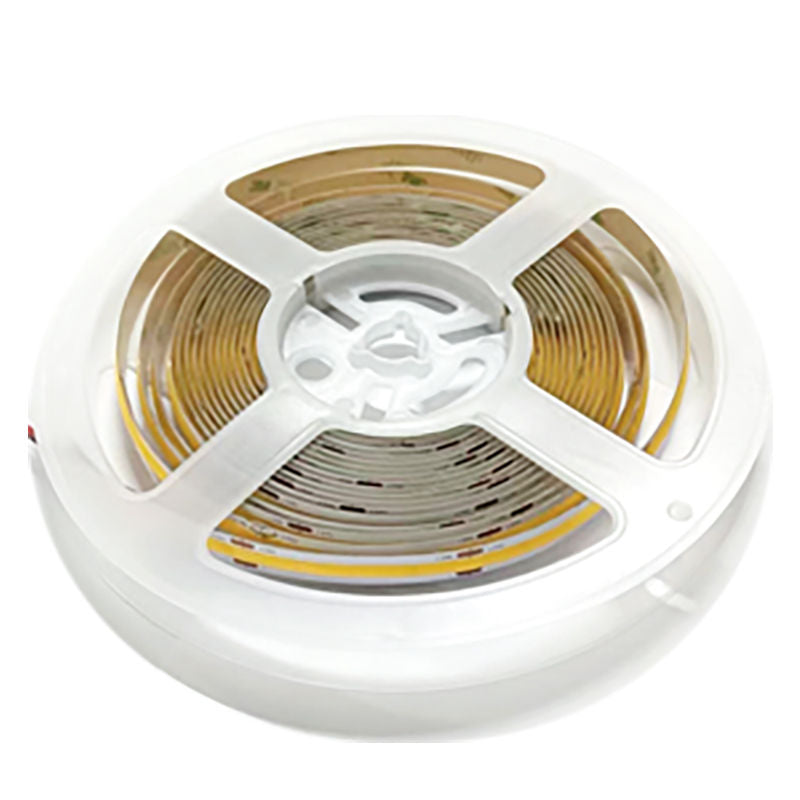

Westgate 3W per ft 290~340LM per ft 2700K/3000K/4000K/5000K/6500K COB LED Tape Light ULR-IN-98F-HO-COB-50K

Product Overview

The Westgate ULR-IN-98F-HO-COB-50K is a COB LED tape light that delivers 3 watts per foot and 290–340 lumens per foot with selectable CCT (2700K, 3000K, 4000K, 5000K, 6500K).

It is rated IP20 for protected indoor locations, operates on 24V DC (an LED driver is required), and has a listed CRI of 90.

Key Features

• 3W per ft output delivering 290–340 lm per ft
• Selectable color temperature: 2700K / 3000K / 4000K / 5000K / 6500K
• 90 CRI for accurate color rendering
• 24V DC operation (LED driver required); dimmable when using a compatible magnetic driver per product notes
• Efficacy: 96–113 lm/W per ft
• Beam angle: 120°; IP20 for protected indoor installations

What this product is and where it’s used

The ULR-IN-98F-HO-COB-50K is a COB (chip-on-board) LED tape designed for protected indoor lighting runs where a continuous, uniform line of light is desired.

• Common applications: cove lighting, under-cabinet runs, millwork, shelving and displays (protected indoor locations)

Light output and color performance

This tape produces 3W per foot with a lumen output range of 290–340 lm/ft. Color temperature is selectable at installation between 2700K, 3000K, 4000K, 5000K and 6500K to accommodate different visual preferences.

The product lists a CRI of 90 and an efficacy range of 96–113 lm/W per ft.

• Lumen range: 290–340 lm/ft
• Efficacy: 96–113 lm/W per ft
• Selectable CCT: 2700K / 3000K / 4000K / 5000K / 6500K
• CRI: 90
• Beam angle: 120°

Voltage, driver and dimming requirements

The tape operates on 24V DC and requires a compatible LED driver. The product notes indicate dimming is supported when using a magnetic dimming driver; select drivers and control methods that match the installation requirements.

• Input: 24V DC (LED driver required)
• Dimming: stated compatible with magnetic drivers

Mounting and environment suitability

The strip is rated IP20, suitable for protected indoor environments and not intended for wet locations. Verify physical fit with any mounting channel or surface before ordering.

• IP rating: IP20 — for protected indoor use
• Confirm channel or surface fit and mounting details before installation

Technical specifications and identifiers

Key technical details and ordering identifiers are listed below for specification and purchasing.

• Brand: Westgate
• Model / SKU: ULR-IN-98F-HO-COB-50K
• Series: ULR-IN-98F-HO-COB
• LED type: COB
• Wattage: 3W per ft
• Lumens: 290–340 lm per ft
• Color temperatures: 2700K / 3000K / 4000K / 5000K / 6500K
• CRI: 90
• Voltage: 24V DC (LED driver required)
• Efficacy: 96–113 lm/W per ft
• Beam angle: 120°
• IP Rating: IP20
• UPC: 845060085747

Before You Order

Verify required length, quantity, and that the 24V driver and mounting method you plan to use are compatible with this IP20-rated tape.

• Requires a 24V DC LED driver — choose a driver with appropriate output and dimming method.
• IP20 rated — suitable for protected indoor locations only.
