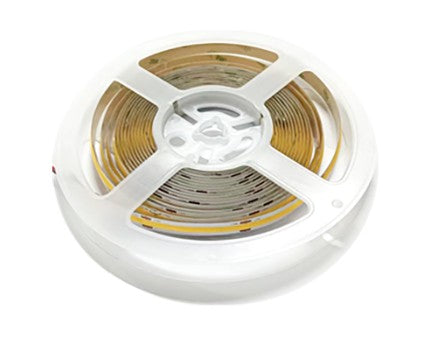

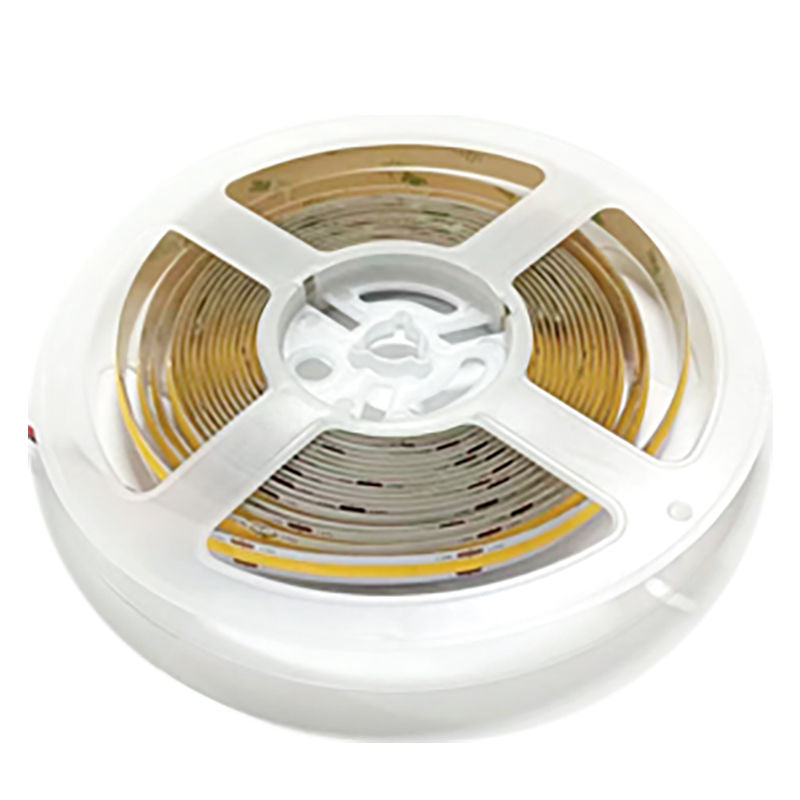

Westgate 3W per ft 290~340LM per ft 2700K/3000K/4000K/5000K/6500K COB LED Tape Light ULR-IN-98F-HO-COB-40K

Product Overview

The Westgate ULR-IN-98F-HO-COB-40K is a COB LED tape light that delivers 3W per foot and 290–340 lumens per foot with selectable color temperatures (2700K, 3000K, 4000K, 5000K, 6500K).

It operates at 24VDC (LED driver required), has a CRI of 90, and carries an IP20 rating for protected indoor installations such as cove and under‑cabinet lighting.

Key Features

• 3W per ft output producing 290–340 lm/ft
• Selectable color temperature: 2700K / 3000K / 4000K / 5000K / 6500K (set at install)
• CRI 90
• Efficacy: 96–113 lm/W per ft
• 24VDC operation (LED driver required)
• Dimmable when used with a compatible magnetic driver
• 120° beam angle
• IP20 rated for protected indoor use

What this product is for

This COB LED tape provides a continuous, uniform light line for protected interior accent and task applications. Typical uses include cove lighting, under‑cabinet illumination, millwork, shelving highlights and display runs.

Selectable CCT lets installers choose a warm-to-cool appearance on site without replacing the fixture.

• Common applications: cove, under‑cabinet, millwork, shelving, display and architectural accent runs
• COB construction reduces visible point-source hot spots for a smoother light line

Light output and color performance

Rated at 3W per foot, the tape produces 290–340 lumens per foot with an efficacy range of 96–113 lm/W per foot. It offers selectable CCT options (2700K, 3000K, 4000K, 5000K, 6500K) and a CRI of 90.

The specified beam angle is 120°, providing a broad distribution suitable for surface washes and accent illumination.

• Lumen output: 290–340 lm/ft
• Power: 3 W/ft
• Selectable CCT: 2700K, 3000K, 4000K, 5000K, 6500K
• CRI: 90
• Beam angle: 120°

Voltage, dimming and driver requirements

The tape operates on 24VDC and requires a compatible LED driver; a driver is not included. The product documentation indicates dimming is supported when used with a magnetic driver—confirm compatibility with the chosen driver and control system.

Verify the driver’s output and control method before installation to ensure proper operation.

• Operating voltage: 24VDC (LED driver required)
• Dimming: supported with a magnetic driver (confirm compatibility)

Mounting and environment suitability

This product has an IP20 rating and is intended for protected indoor environments. Use in dry interior locations or inside channels/profiles where it will not be exposed to moisture.

Confirm channel or surface fit for the COB tape dimensions prior to ordering.

• IP rating: IP20 — protected indoor use
• Intended mounting: channels, profiles or surface mounts compatible with COB tape

Before You Order

Verify channel/profile fit and select a compatible 24VDC LED driver and dimming control before ordering.

• Confirm channel or surface fit for COB tape dimensions
• Specify a compatible 24VDC LED driver (driver not included)
• Plan how the selectable CCT will be set at installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Westgate 3W per ft 290~340LM per ft 2700K/3000K/4000K/5000K/6500K COB LED Tape Light ULR-IN-98F-HO-COB-40K. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
