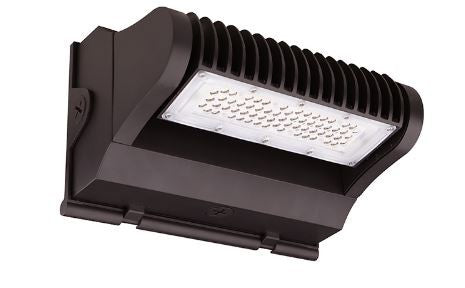

Westgate 40W 5,200LM 3000K 360 Degree LED Wall Pack LW360-40W-30K-G2

Product Overview

The Westgate LW360-40W-30K-G2 is a 360-degree exterior LED wall pack that produces 5,200 lumens from 40 watts (130 lm/W) at a 3000K color temperature and operates on 120–277V.

It is intended for building exteriors, entrances, perimeter and security lighting and can be used as a wall-mounted HID retrofit where a 360° distribution is required.

Key Features

• 40W nominal power with 5,200 lumens output (130 lm/W efficacy)
• Warm white 3000K color temperature for commercial exterior appearance
• 120–277V universal input for common commercial branch circuits
• 360-degree distribution suitable for entrances, perimeters and security areas
• UPC: 845060072235

Function and intended use

The LW360-40W-30K-G2 is a 360-degree LED wall pack designed for exterior wall mounting where wide-area, omni-directional illumination is required. It is suitable for building entrances, perimeter illumination and security-focused installations, and can serve as a direct replacement for wall-mounted HID fixtures where a 360° distribution is desired.

Light output and efficiency

This SKU produces 5,200 lumens from 40 watts, yielding an efficacy of 130 lumens per watt. The fixture's 3000K color temperature provides warm-white light consistent with many commercial exterior appearance standards.

• Lumen output: 5,200 lm
• Power: 40W
• Efficacy: 130 lm/W
• Color temperature: 3000K

Electrical requirements

The fixture accepts a 120–277V input, allowing connection to typical commercial branch circuits. Confirm compatibility with site wiring and any local control or code requirements prior to installation.

• Input voltage: 120–277V

Recommended applications

This wall pack is intended for exterior locations needing broad-area illumination and improved perimeter visibility. Typical applications called out for this model include building entrances, perimeter and security lighting, parking-area edges, and wall-mounted HID retrofits.

• Building entrances and perimeters
• Parking-area edges
• Security and safety lighting
• Wall-mounted HID retrofits

Installation and control considerations

Confirm the required mounting height and whether a photocell, dusk-to-dawn control or other lighting control device is required for your project. Verify local codes and control strategies before ordering to ensure the chosen fixture and any accessories meet site requirements.

• Confirm mounting height for desired light distribution
• Determine if a photocell or dusk-to-dawn control is required

Before You Order

Confirm the model number and quantity required before ordering. Verify mounting configuration, required control devices (photocell/dusk-to-dawn), and local code or specification requirements prior to purchase.

• Confirm model: LW360-40W-30K-G2
• Verify mounting height and mounting method
• Decide whether a photocell or other control is needed
