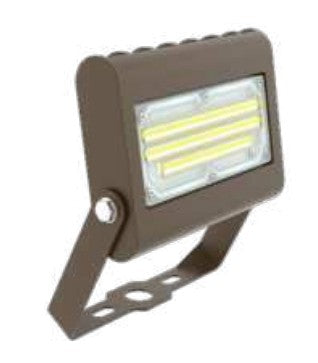

Westgate 30W/40W/50W 30K/40K/50K LED Flood Light LFX-MD-30-50W-MCTP-TR-P

Product Overview

The Westgate LFX-MD-30-50W-MCTP-TR-P is a versatile commercial LED flood light with field-selectable wattage (30W/40W/50W) and color temperature (3000K/4000K/5000K/5700K). It delivers 130 lumens per watt and operates on 120–277V.

Designed for building facades, signage, sports areas and retrofit of HID floods, this fixture provides installer flexibility by allowing output and CCT to be set at install rather than at order time.

Key Features

• Field-selectable wattage: 30W, 40W, 50W
• Field-selectable color temperature: 3000K, 4000K, 5000K, 5700K
• 130 lumens per watt efficacy
• 120–277V input for common commercial branch circuits
• Trunnion/knuckle aiming for targeted flood lighting

Function and intended use

This Westgate flood light is intended for commercial and site applications that require broad-area or targeted accent illumination. Common uses include building and facade lighting, signage and landscape floods, sports and yard lighting, and retrofits where an HID flood is being replaced with LED.

• Suitable for facade illumination, sign highlighting, sports and yard lighting
• Can be used as a retrofit solution for existing HID flood installations

Performance and light output

The fixture provides three selectable output levels—30W, 40W, and 50W—paired with an efficacy of 130 lumens per watt. Color temperature is selectable in the field from 3000K, 4000K, 5000K, or 5700K to match site appearance requirements.

• Selectable wattages: 30W / 40W / 50W
• Efficacy: 130 LM/W (basis for lumen output at each wattage)
• Selectable CCT: 3000K / 4000K / 5000K / 5700K

Electrical and compatibility

The LFX-MD-30-50W-MCTP-TR-P accepts 120–277V input, making it compatible with common commercial single-phase branch circuits.

• Input voltage: 120–277V
• Consult project electrical plans for circuit loading when selecting the fixture output setting

Mounting and installation notes

The fixture is supplied with aiming options using a trunnion or knuckle mount to set beam direction. Confirm the mounting surface and aiming requirements before installation so the fixture can be positioned correctly for the application.

• Aiming: trunnion or knuckle mount
• Set output and color temperature at install to match the application

Technical specifications

Reference the model-specific specifications below for ordering and design confirmation.

• Brand: Westgate
• Model / SKU: LFX-MD-30-50W-MCTP-TR-P
• Product type: LED Flood Light
• Wattage: 30W / 40W / 50W (selectable)
• Efficacy: 130 LM/W
• Color temperature: 3000K / 4000K / 5000K / 5700K (selectable)
• Voltage: 120–277V
• UPC: 840378331647

Before You Order

Confirm the model number and the quantity required before ordering. Choose the desired output and color temperature at installation, and verify the mounting surface and aiming method for proper placement.

• Confirm model: LFX-MD-30-50W-MCTP-TR-P
• Decide which selectable wattage and CCT setting you will use on site
• Verify mounting surface and aiming requirements

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Westgate 30W/40W/50W 30K/40K/50K LED Flood Light LFX-MD-30-50W-MCTP-TR-P. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
