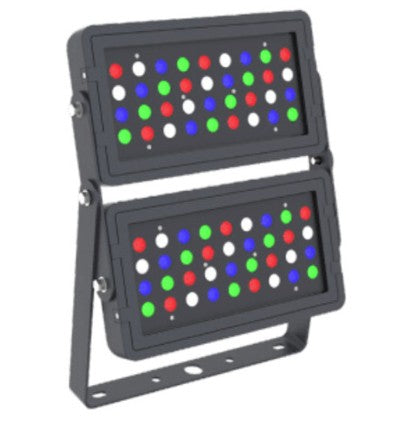

Westgate 192W RGBW RGBW DMX LED Flood Light Black DMX-FLS-192W-RGBW-BT-BK

Product Overview

The Westgate DMX-FLS-192W-RGBW-BT-BK is a 192W RGBW DMX-controlled LED flood light designed for commercial exterior applications. It provides multi-channel RGBW color output and accepts 120–277V input.

Intended for building facades, signage, sports areas, landscape floods and HID flood retrofits, this fixture mounts via a trunnion or knuckle and is supplied in a black finish.

Key Features

• 192 watts nominal RGBW LED output
• DMX-compatible color control for RGBW scenes
• 120–277V line voltage for common commercial circuits
• Trunnion or knuckle mount aiming
• Black exterior finish (BK) — model DMX-FLS-192W-RGBW-BT-BK
• UPC: 845060093629

What this fixture does

The DMX-FLS-192W-RGBW-BT-BK supplies 192 watts of RGBW LED output for full-color and white light scenes under DMX control. It is designed to illuminate building facades, signage, sports fields, landscapes and other outdoor areas where color mixing and dynamic control are required.

• RGBW output for mixed-color and dedicated white channels
• DMX control enables integration with stage or architectural control systems

Recommended applications

This Westgate flood is specified for commercial-scale exterior lighting where color capability and DMX control are needed.

• Building and facade lighting
• Signage and architectural accents
• Sports and yard floodlighting
• HID flood retrofit projects

Electrical and control requirements

The fixture accepts 120–277V AC input for compatibility with common commercial branch circuits and uses DMX for color and scene control. Confirm DMX addressing, cabling and controller compatibility as part of system design.

• Input voltage: 120–277V
• Control: DMX (RGBW channels)

Mounting and aiming

Aiming is set using the included trunnion or optional knuckle mount. Confirm the mounting surface and hardware required for the chosen mounting method before installation.

• Mount options: trunnion or knuckle
• Finish: black (BK)

Before You Order

Confirm the model number and quantity required before ordering. Verify DMX addressing and controller compatibility, and confirm mounting method (trunnion or knuckle) and the structural suitability of the mounting surface.

• Confirm DMX controller and cabling plan
• Confirm mounting surface and hardware requirements
• Verify 120–277V branch circuit availability

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Westgate 192W RGBW RGBW DMX LED Flood Light Black DMX-FLS-192W-RGBW-BT-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
