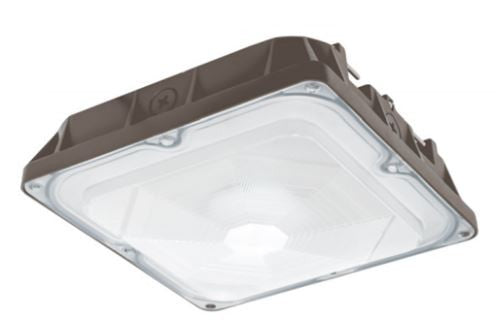

Westgate 5W/10W/15W/25W 3,000LM Max 3000K/ 4000K/ 5000K LED Canopy Light Dark Bronze CDLX-SM-5-25W-50K

Product Overview

The Westgate CDLX-SM-5-25W-50K is a compact LED canopy fixture with field-selectable outputs (5W, 10W, 15W, 25W) and 120 lumens per watt efficacy. It provides a fixed 5000K color temperature and is designed to operate on 120–277V branch circuits.

This SKU is intended for canopy-mounted commercial applications and retrofit of HID canopy luminaires where a single stocked unit covering multiple output levels simplifies specification and inventory.

Key Features

• Field-selectable wattage: 5W / 10W / 15W / 25W
• Efficacy: 120 lumens per watt
• Color temperature: 5000K
• Input voltage: 120–277V
• UPC: 845060088908
• Finish: Dark Bronze

What this fixture does

The CDLX-SM-5-25W-50K provides field-selectable light output (5W, 10W, 15W, or 25W) with an efficacy of 120 lumens per watt and a fixed 5000K color temperature. It is a canopy-style LED intended to replace or upgrade HID canopy lighting and to provide energy-efficient illumination for covered exterior ceilings.

• Single SKU covers multiple lumen/output requirements
• Intended for canopy-mounted installations

Where to use it

Suitable for commercial canopy and low-ceiling exterior locations. Typical applications include fuel-station canopies, parking-structure ceilings, drive-through lanes, and loading canopies where compact, efficient canopy luminaires are used.

• Fuel-station canopies
• Parking-structure ceilings
• Drive-through and loading canopies
• HID canopy retrofit projects

Light output and efficiency

The fixture is rated at 120 lumens per watt. Because wattage is selectable in the field, a single unit can be configured to different output levels to match design targets or reduce connected load.

• Selectable wattage: 5W / 10W / 15W / 25W
• Efficacy: 120 lm/W
• Color temperature: 5000K

Voltage and electrical connection

The CDLX-SM-5-25W-50K is specified for 120–277V input, allowing connection to common commercial branch circuits.

• Input voltage: 120–277V

Mounting and installation checks

Confirm canopy mounting type and any required cutout or surface-mount provisions before installation. Verify mounting surface, clearance and wiring access at the installation site.

• Verify canopy mounting (surface or recessed) and cutout size
• Confirm wiring access and branch-circuit voltage

Before You Order

Verify mounting type, canopy cutout dimensions and branch-circuit voltage at the installation site to ensure compatibility.

• Confirm canopy mounting (surface or recessed) and cutout size
• Verify available branch-circuit voltage is within 120–277V range
• Confirm required wattage setting for each location

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Westgate 5W/10W/15W/25W 3,000LM Max 3000K/ 4000K/ 5000K LED Canopy Light Dark Bronze CDLX-SM-5-25W-50K. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
