Westgate 8W 600LM 27K/30K/35K/40K/50K LED Recessed Downlight RDL1

Product Overview

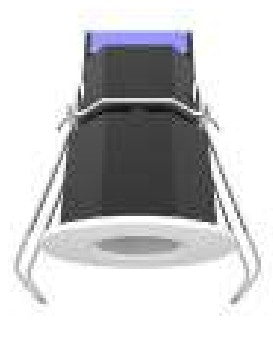

The Westgate RDL1S-ST-MCT5 is an 8W LED recessed downlight that produces 600 lumens with selectable color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K.

Offered in Black (RDL1S-ST-MCT5-BK) and White (RDL1S-ST-MCT5-WH) trims, the fixture is intended for recessed general and accent lighting in commercial and residential ceilings.

Key Features

• 8W nominal power, 600 lumens (listed efficacy 75 lm/W)
• Selectable color temperature: 2700K, 3000K, 3500K, 4000K, 5000K (set at install)
• Trim finish options: Black (RDL1S-ST-MCT5-BK) and White (RDL1S-ST-MCT5-WH)
• Intended for recessed general and accent lighting in commercial and residential ceilings

Intended uses

The Westgate RDL1S-ST-MCT5 is designed for recessed general and accent lighting in commercial and residential ceilings. The product listing cites corridor and lobby grids, recessed retrofits, and general ceiling downlighting as common applications.

• General recessed ceiling lighting
• Accent lighting in residential or commercial interiors
• Corridors, lobbies, and retrofit installations

Light output and efficiency

Rated at 600 lumens and 8W, the listing shows an efficacy value of 75 lm/W. Color temperature is selectable at install among 2700K, 3000K, 3500K, 4000K and 5000K.

• Lumen output: 600 lm
• Power: 8W
• Efficacy: 75 lm/W
• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K

Installation and compatibility notes

Confirm the ceiling cutout size and the rough‑in or retrofit housing required for this downlight prior to ordering and installation. The color temperature is configured at install rather than at order time.

• Verify cutout and housing compatibility before installation
• Selectable CCT is set at install

Finishes and SKUs

Select the trim finish that matches the installation. Each finish corresponds to a distinct SKU.

• Black — SKU: RDL1S-ST-MCT5-BK (UPC 840378314084)
• White — SKU: RDL1S-ST-MCT5-WH

Before You Order

Confirm the required SKU and verify ceiling cutout and housing compatibility for recessed or retrofit installations.

• Select Black (RDL1S-ST-MCT5-BK) or White (RDL1S-ST-MCT5-WH).
• Verify rough‑in or retrofit housing and cutout size for this downlight.
