Westgate 40W 3,720LM 27K/30K/35K/40K/50K IP66 LED Strip Light TSR-IP66-80D-6FT-MCT5-D

Product Overview

The Westgate TSR-IP66-80D-6FT-MCT5-D IP66 LED Strip Light is offered as one product with 2 manufacturer SKUs. Choose the finish to select the exact version; every option keeps its original manufacturer SKU, price and stock.

Available options: Finish: Black, White.

Available Options and SKUs

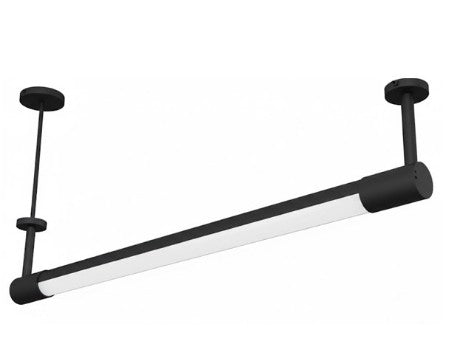

• Black: SKU TSR-IP66-80D-6FT-MCT5-D-BK

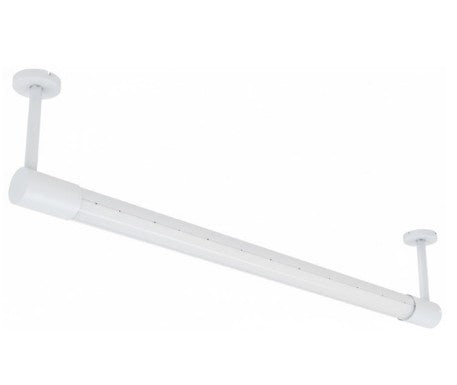

• White: SKU TSR-IP66-80D-6FT-MCT5-D-WH

Specifications Shared by All Options

• Wattage: 40W
• Lumens: 3,720 LM
• Efficacy: 93 LM/W

Purpose and typical applications

This Westgate LED strip light is designed for general commercial strip lighting where a sealed, durable fixture is needed. Common applications include utility and equipment rooms, corridors and back‑of‑house areas, and locations where fluorescent strip fixtures are being retrofitted.

• Utility and equipment rooms
• Back‑of‑house corridors and service areas
• Commercial strip lighting and fluorescent strip retrofits

Light output and efficacy

The fixture produces 3,720 lumens while consuming 40 watts, yielding an efficacy of 93 lumens per watt. Use these values when performing lighting design calculations or estimating energy usage.

• Lumens: 3,720 LM
• Wattage: 40W
• Efficacy: 93 LM/W

IP66 rating and environment suitability

An IP66 enclosure provides protection against dust ingress and high‑pressure water jets, making the strip light suitable for areas that require moisture resistance or routine washdown. Install the fixture only in locations consistent with the product's rated environment and applicable electrical code.

• IP rating: IP66 (dust tight; protection from powerful water jets)
• Appropriate for wet and washdown-prone commercial areas

Color temperature selection

Color temperature is selectable at the time of installation. The multi‑CCT feature lets installers set the appearance on site rather than specifying a single CCT at the order stage.

• Selectable CCT options: 2700K, 3000K, 3500K, 4000K, 5000K
• Set CCT during installation to match the space requirements

Ordering from Lumera Electric

Select the finish on this page to confirm the exact SKU before ordering. For project quantities or additional ordering requirements, use Request a Quote and include the SKU and quantity you need.
