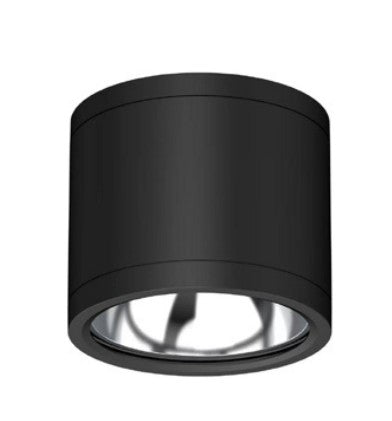

Westgate 25W 2,300LM 30K/35K/40K LED Wall Cylinder Light CMCW5

Product Overview

Westgate CMCW5 series LED wall cylinder, 25W producing 2,300 lumens with a reported efficacy of 92 lm/W.

Field-selectable color temperatures (3000K, 3500K, 4000K). Available in White (CMCW5-SMD-25W-MCT-75D-DT-WH) and Black (CMCW5-SMD-25W-MCT-75D-DT-BK) finishes.

Key Features

• 25W, 2,300 lumens (listed efficacy: 92 lm/W)
• Field-selectable CCT: 3000K / 3500K / 4000K
• Architectural wall sconce form factor for accent and decorative wall lighting
• Available in two finish SKUs: White and Black

Function and intended use

The Westgate CMCW5 25W LED wall cylinder is described as an architectural wall sconce for accent and decorative wall lighting. The source lists typical applications such as entry and façade accenting, architectural wall lighting, corridors and lobbies, and decorative exteriors.

This product is presented for accent and architectural wall illumination rather than for general-purpose high-bay or wide-area flood lighting.

• Typical applications: entry and façade accenting, architectural wall lighting, corridors and lobbies, decorative exteriors
• Directional, wall-mounted cylindrical form for accent/architectural use

Light output and efficacy

The listing specifies 2,300 lumens from a 25W LED module with a reported efficacy of 92 lumens per watt. Use these values as listed by the product information for comparative planning.

• Lumen output: 2,300 lm
• Input power: 25W
• Reported efficacy: 92 lm/W

Color temperature and finish options

Color temperature is field-selectable at installation among 3000K, 3500K, and 4000K according to the product notes. Select the SKU for the desired finish: separate SKUs are provided for White and Black finishes.

• Field-selectable CCT: 3000K / 3500K / 4000K
• Finish SKUs: White — CMCW5-SMD-25W-MCT-75D-DT-WH; Black — CMCW5-SMD-25W-MCT-75D-DT-BK

Mounting and installation notes

The source advises confirming the wall mounting pattern and whether the fixture will be installed as up- or down-distribution prior to installation. Observe applicable local electrical code during installation.

• Confirm mounting pattern and intended up/down distribution before install
• Follow local electrical code and controls requirements

Product specifications

Core model identifiers and basic specifications are provided for ordering and reference.

• Brand: Westgate
• Model / SKU (White): CMCW5-SMD-25W-MCT-75D-DT-WH — UPC 840378332460
• Model / SKU (Black): CMCW5-SMD-25W-MCT-75D-DT-BK
• Product type: LED Wall Cylinder Light
• Wattage: 25W
• Lumens: 2,300 lm
• Efficacy: 92 lm/W
• Color temperature: 3000K / 3500K / 4000K (field-selectable)

Before You Order

Confirm the desired finish SKU and the mounting pattern and up/down distribution for the installation before ordering.

• Verify finish SKU: White (CMCW5-SMD-25W-MCT-75D-DT-WH) or Black (CMCW5-SMD-25W-MCT-75D-DT-BK).
• Confirm mounting pattern and intended up vs. down distribution with site plans.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Westgate 25W 2,300LM 30K/35K/40K LED Wall Cylinder Light CMCW5. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
