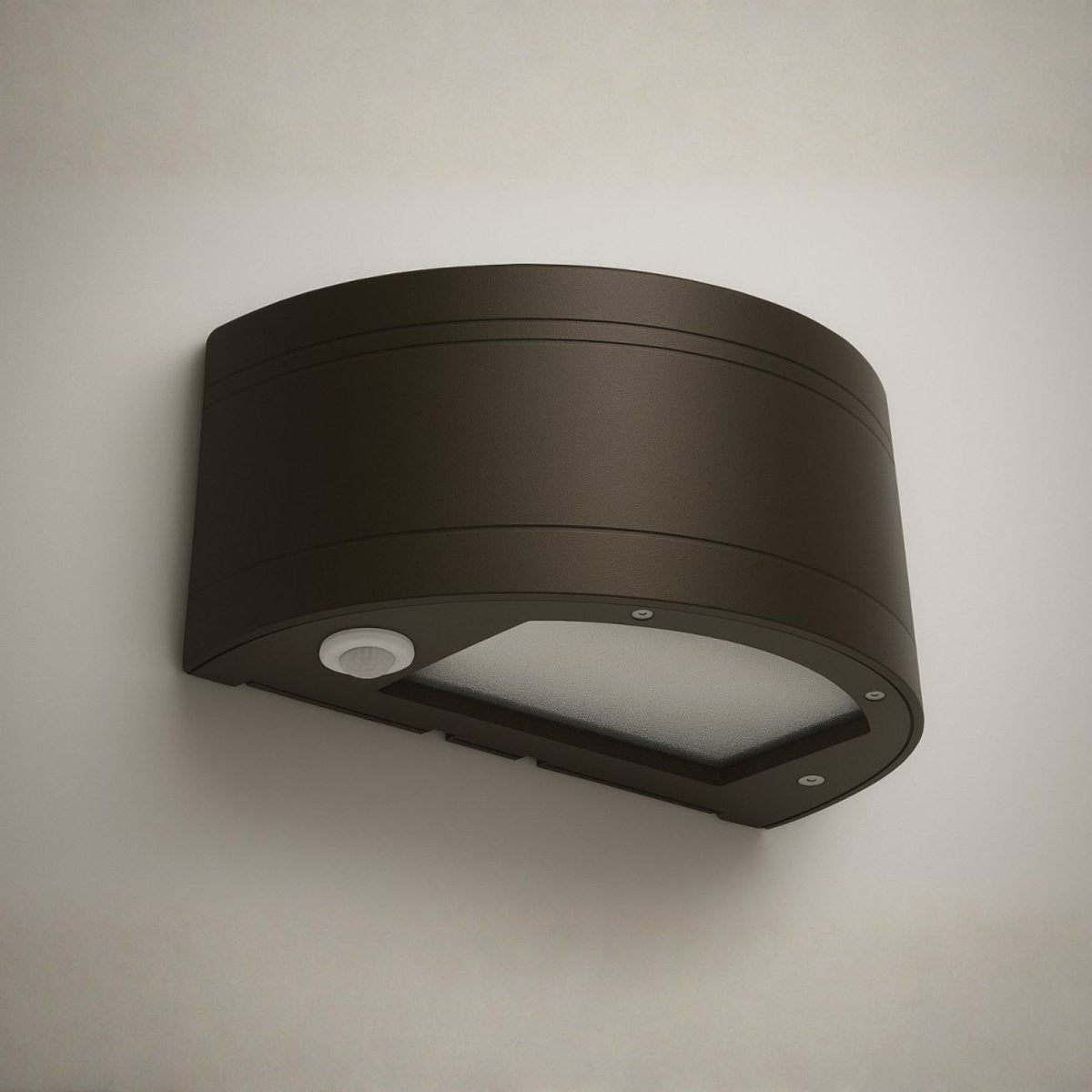

Utopia Lighting WML LED Half Sphere Wall Pack

Product Overview

The Utopia Lighting WML LED Half Sphere Wall Pack is an architectural outdoor wall sconce designed for building exteriors, entryways, walkways and perimeter lighting. It is a full cut‑off fixture available in down (forward or wide throw) and up/down distributions.

Available options include field‑adjustable LED output for certain down units, multiple CCT choices, die‑cast aluminum construction with UV‑stable powder coat, and an impact‑resistant tempered glass lens. The product is listed for wet locations and has DLC-qualified configurations.

Key Features

• Field‑adjustable LED wattage for certain down units (selectable SLED 25/45/65W shown in manufacturer data); separate up/down models offered in lower wattages
• Color temperatures: 3000K, 4000K, 5000K
• Input voltage: 120–277V standard; 480V available with step‑down transformer option
• Construction: die‑cast aluminum housing, UV‑stabilized powder coat finish (dark bronze standard), tempered clear glass lens
• Listings and certifications: UL/CUL wet‑location listings, UL 1598, UL 8750, DLC (qualifying configurations), ANSI C136.31 vibration testing
• Optional accessories: occupancy sensor, photocell, emergency battery packs, 10 kV surge protector, marine grade finish, BAA/BABA compliance (options listed by manufacturer)

What this fixture is used for

The WML half‑sphere wall pack is intended for exterior illumination of building walls, entrances, walkways, parking perimeters, underpasses, loading docks and similar areas. Manufacturer guidance cites typical wall mounting heights between 8 and 15 feet.

• Distributions available: Down only (Forward Throw or Wide Throw) and Up/Down (50% up / 50% down)
• Common uses: entryways, walkways, perimeter security lighting and façade illumination

Lumen and efficacy options

The WML family includes several LED configurations. Down‑only and up/down variants have different reported lumen outputs and efficacies in manufacturer data; values depend on selected model, wattage and CCT.

• Selectable SLED down unit examples: 25W, 45W, 65W (manufacturer configuration table)
• Up/Down variants shown in manufacturer materials at 6W and 40W examples
• Manufacturer examples: down‑only outputs up to 8,568 lm (65W selectable) and reported efficacy values up to 151 lm/W for certain up/down models and up to 119 lm/W for some down‑only configurations; actual output depends on chosen configuration and CCT

Voltage, surge and emergency options

Standard input voltage is 120–277V, 50/60 Hz. A 480V option is available when ordered with a step‑down transformer. Electrical accessory options are listed by the manufacturer.

• Standard: 120–277V (UNV)
• Optional: 480V available with step‑down transformer
• Accessory options shown by manufacturer: 10 kV surge protector (SP10), 8W emergency battery (EM8), 10W cold‑weather EM pack (CWEM10)

Sensors, controls and compliance options

The WML supports optional controls and compliance features to meet site requirements. Some control options require factory configuration or additional accessories.

• Photocell (PC3) and occupancy sensor (MS) options; MS includes DIP‑switch adjustable settings per manufacturer notes
• Remote control for sensor (RC‑100) and CASAMBI readiness available (contact factory)
• Certifications/claims listed by manufacturer: UL/CUL wet‑location listings, DLC (product family has qualifying configurations), UL 1598, UL 8750, ANSI C136.31 vibration testing, 5‑year limited warranty, BAA and BABA compliance options

Mounting method and physical size

The WML mounts to recessed junction boxes or directly to a wall using the supplied quick‑mount plate and offers feed‑through conduit access. The fixture uses an impact‑resistant tempered glass lens and die‑cast aluminum housing.

• Mounting: wall mount with quick‑mount plate; compatible with recessed J‑box or direct mount
• Lens: tempered clear glass, low‑glare design
• Approximate dimensions (manufacturer): Height 7.1 in (180 mm), Width 18.1 in (460 mm), Depth 9.25 in (235 mm)

Before You Order

Confirm the exact model code and options required before ordering; not all configurations are DLC qualified.

• Specify distribution: Forward Throw (FT), Wide Throw (WT) or Up/Down (UD).
• Specify LED wattage/CCT and desired CRI where applicable.
• Confirm voltage: UNV 120–277V standard; 480V requires step‑down transformer option.
• Select any required accessories (sensor, photocell, emergency pack, surge protector) and request confirmation of DLC qualification for the chosen configuration.
