Utopia Lighting W LED Ceiling-Mount Wraparound

Product Overview

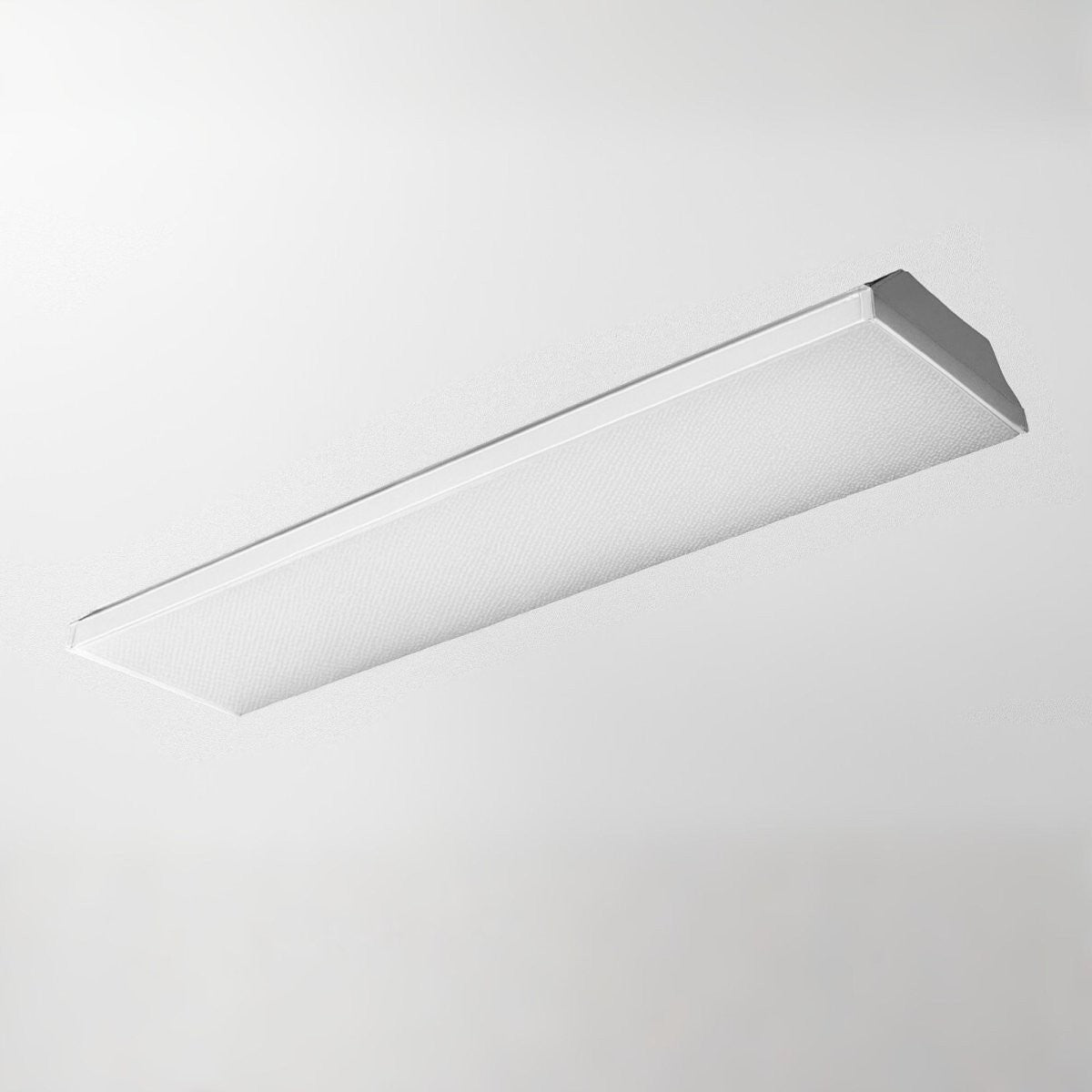

The Utopia Lighting W LED is a surface-mount ceiling wraparound with an injection-molded acrylic prismatic diffuser. The lens can hinge from either side for cleaning and service.

It is offered in 2-foot and 4-foot lengths with different LED packages and ordering options. The listing does not identify a specific configuration.

Key Features

• Ceiling surface mount or optional stem mount; continuous-row mounting option.
• Color temperature choices: 2700K, 3000K, 3500K, 4000K or 5000K.
• Standard 120–277V input and generic 0–10V dimming to 10%.
• Acrylic prismatic diffuser and die-formed, cold-rolled steel housing.

W LED Design and Applications

The Utopia Lighting W LED is a specification-grade surface ceiling-mount wraparound designed to deliver diffuse, moderate light. Manufacturer-identified applications include small to medium offices, retail spaces, classrooms and storage rooms.

Its injection-molded acrylic prismatic diffuser has a flat bottom and vertical sides, and can hinge from either side for cleaning and service. The steel housing has a high-gloss baked white enamel finish over a rust-inhibiting phosphate coating.

• The fixture is specified with 5% uplight.

Lengths, LED Packages and Light Output

The W LED is available in 2-foot and 4-foot lengths. The 2-foot version has 18LED, 25LED and 36LED package options; the 4-foot version also offers 54LED and 72LED. The manufacturer gives maximum outputs of 4,253 lumens for 2-foot models and 8,506 lumens for 4-foot models.

The configuration table lists electrical input powers of 19.8W, 27.5W and 39.6W for the 18LED, 25LED and 36LED packages, and 59.4W and 79.2W for the 54LED and 72LED packages. Listed lumen outputs are based on 3500K.

Voltage, Color Temperature and Dimming

The standard voltage option is 120–277V. Ordering options also include 120V, 277V and 347V.

Color temperature choices are 2700K, 3000K, 3500K, 4000K and 5000K. Generic 0–10V dimming to 10% is the standard driver option; other dimming drivers are available by ordered configuration. CRI options are 80+ and 90+.

Mounting Options

The W LED supports ceiling surface mounting and optional stem mounting. Stem options are 1/2-inch standard or 3/8-inch optional; pipe is by others unless ordered. Steel end plates with 7/8-inch knockouts are specified for the continuous-row mounting option. The manufacturer states that the fixture is compatible with most ceiling types.

Listings and Damp-Location Suitability

The manufacturer lists the W LED as UL/CUL listed, listed to UL 1598 and UL 8750, and suitable for damp locations. DLC qualification depends on the product version.

Before You Order

Confirm the required length, LED package, color temperature, CRI, voltage, driver and mounting options when selecting a configuration.

• DLC qualification depends on the product version.
