Utopia Lighting TCEX LED Exit Sign

Product Overview

The Utopia Lighting TCEX is a low-profile thermoplastic LED exit sign designed for code-required egress signage.

This model provides a minimum 90-minute emergency runtime with a rechargeable NiCd battery and is UL 924 listed for damp locations.

Key Features

• Thin, low-profile injection-molded thermoplastic housing available in white or black
• Minimum 90-minute emergency operation with maintenance-free rechargeable NiCd battery
• Dual-voltage 120/277V operation with push-to-test switch and charge indicator
• Red or Green LED legends with long rated life (manufacturer lists minimum rated LED life of 100,000 hours)
• UL listed for damp locations and meets UL 924 and referenced codes
• Snap-together design and included mounting canopy for top or end mount

What this exit sign does

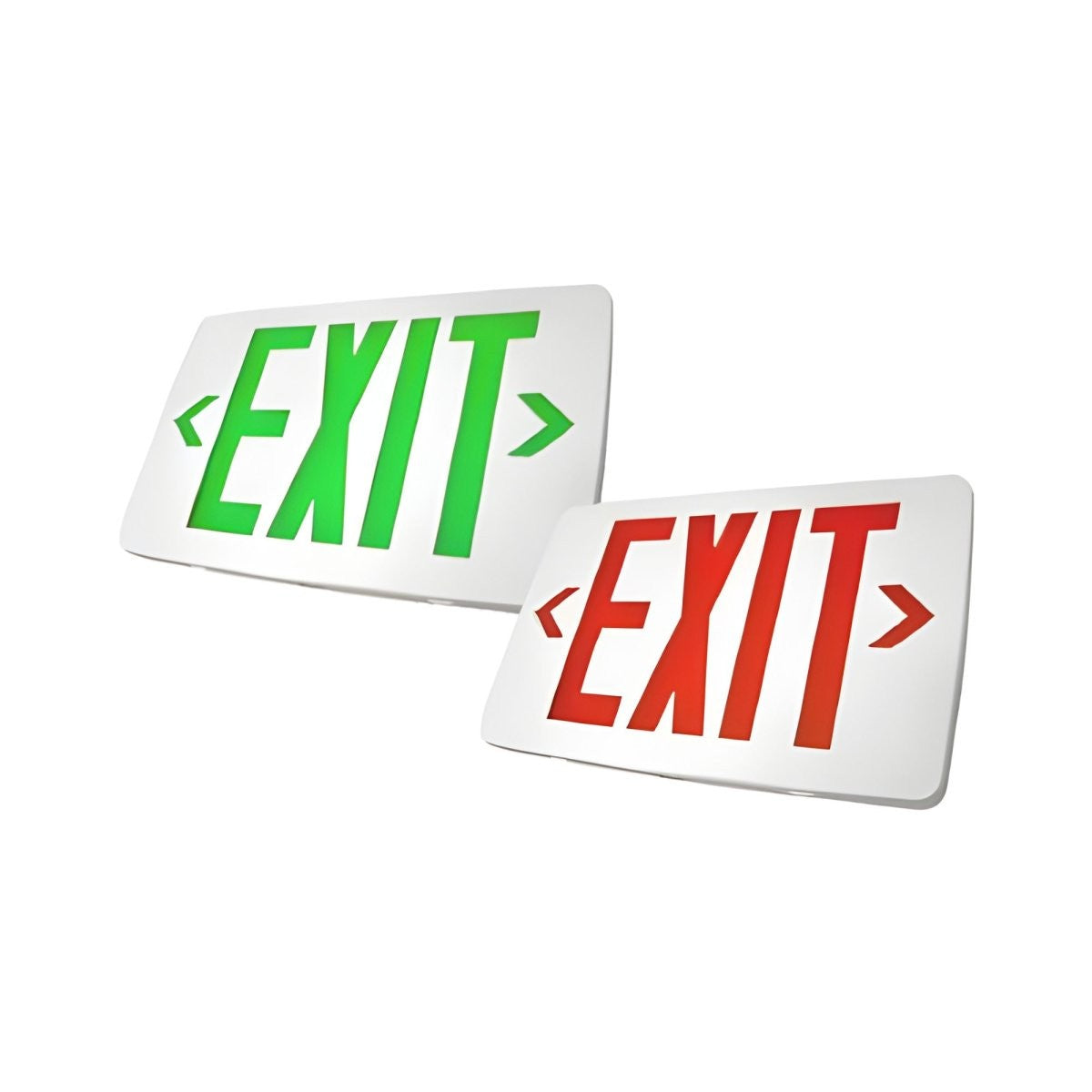

The TCEX provides visible egress identification using Red or Green LEDs and supplies at least 90 minutes of emergency illumination when AC power is interrupted. It is intended for code-required exit signage in commercial and institutional applications.

• Letters: 6-inch height with 3/4-inch stroke; snap-out chevrons for directional indication
• Compact, low-profile appearance for areas where a slim fixture is preferred

Electrical and battery information

The TCEX operates on 120/277V AC. Manufacturer electrical data lists an input of approximately 1.0W (0.010A) at both 120V and 277V. Emergency operation is provided by a maintenance-free NiCd battery rated for a minimum of 90 minutes.

• Battery: rechargeable NiCd with fully automatic two-rate charger; manufacturer states recharge of a discharged battery in 24 hours
• Includes charge-rate/power ON indicator LED and push-to-test switch to support required testing

Ordering and configuration options

The TCEX is configurable by face count, legend color, operation type and housing finish. Ordering codes indicate single or double face, Red or Green legend, AC-only or battery backup, and white or black housings.

• Face: Single (S) or Double (D)
• Letter color: Red (R) or Green (G)
• Operation: AC-only (blank) or Battery backup (1)
• Housing/face color: White (WH) or Black (BK)
• Optional accessories: WG-1 steel wire guard; PCS-1 polycarbonate guard; BG-1 polycarbonate vandal shield
• Example ordering format: TCEX-S-R-1-WH

Mounting, dimensions and construction

The TCEX is injection-molded from engineering-grade thermoplastic (5VA flame retardant) and uses a snap-together design for service access. A mounting canopy is included for top or end mount installation.

• Housing colors: white or black
• Mounting: top or end mount (canopy included)
• Manufacturer dimensions (inches): width 11-7/8, height 7-3/4, depth 7/8

Listings, environment and warranty

The TCEX is UL listed for damp locations and is designed to meet the referenced life-safety standards cited by the manufacturer. A limited warranty is provided by the manufacturer.

• Meets UL 924; manufacturer also lists compliance with NFPA 70, NFPA 101, NEC and OSHA references
• UL listed for damp locations with rated operating range 32°F to 122°F (0°C to 50°C)
• Warranty: 5 years limited on materials and electronics; battery prorated; LED lamps carry a manufacturer-limited warranty

Before You Order

Confirm the exact TCEX ordering code to include face count, legend color, operation type, housing color and any guard or ARRA assembly option before placing an order.

• Provide the ordering format (example: TCEX-S-R-1-WH) to ensure the correct configuration
• Request ARRA/BAA assembly option if your project requires it
