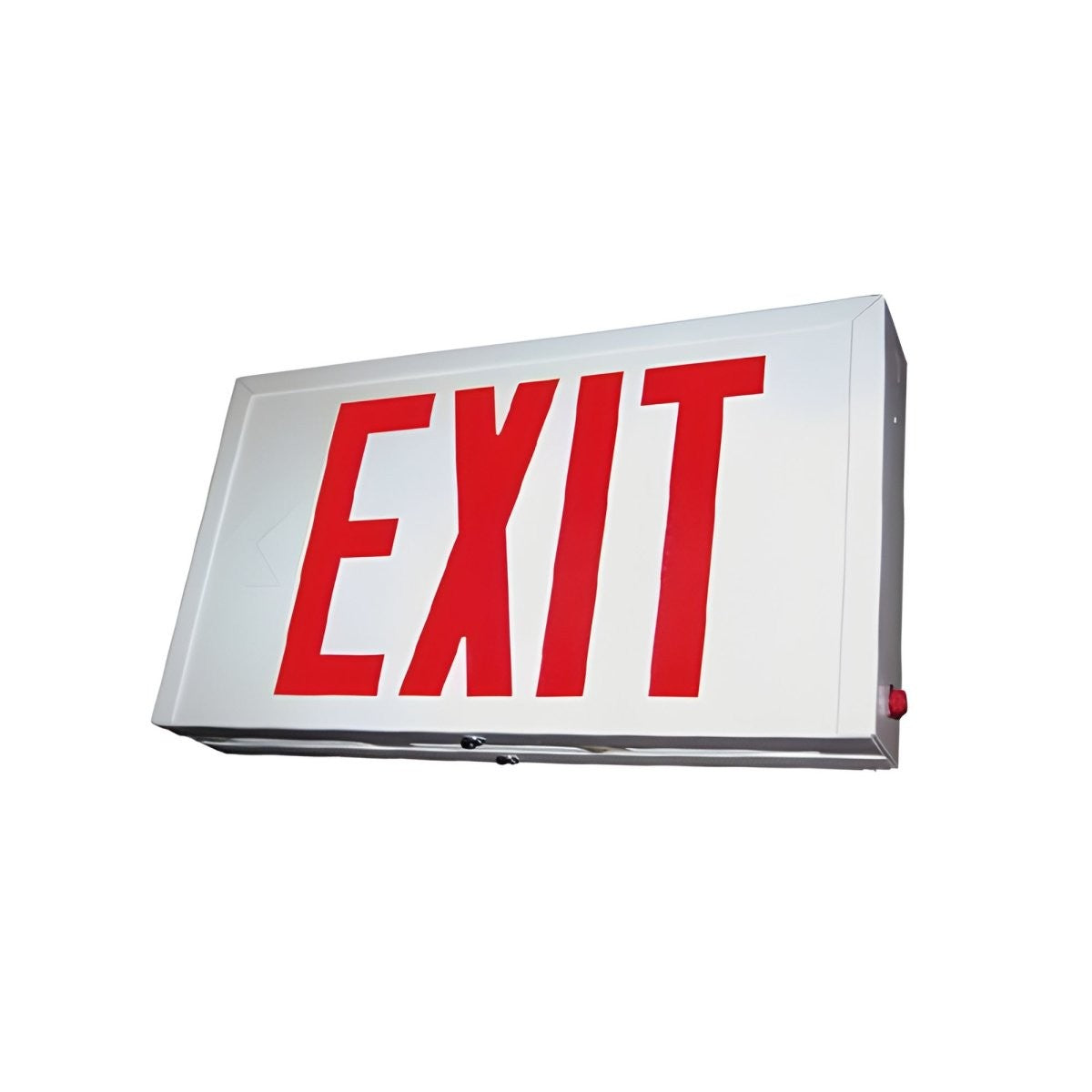

Utopia Lighting SXTE Steel Emergency Exit with Battery

Product Overview

The Utopia Lighting SXTE is a steel LED exit sign available in single- or double-face configurations. Its LED lamps operate on AC input during normal operation; an emergency battery-backup option provides illumination during emergency operation.

The SXTE operates at 120/277V. With the battery-backup configuration, it provides a minimum of 90 minutes of emergency illumination. Face, letter color, housing color and operation are ordering choices.

Key Features

• Powder-coated 20-gauge steel housing
• Single- or double-face configurations with red or green LED letters
• 120/277V dual-voltage operation
• Optional battery backup provides a minimum of 90 minutes of emergency illumination
• UL listed for damp locations; meets UL 924

LED Exit Sign and Emergency Battery Option

The Utopia Lighting SXTE provides illuminated exit signage. Its LED lamps operate on AC input in normal mode and DC input in emergency mode. The EM battery-backup configuration provides a minimum of 90 minutes of emergency illumination; AC-only operation is also available.

SXTE Configuration and Accessory Options

The SXTE can be ordered with the following face, letter, housing and operation choices:

• Face: single or double
• Letter color: red or green
• Housing color: white or black
• Operation: AC-only or battery backup
• Options: steel wire guard, polycarbonate guard, polycarbonate vandal shield guard, self-diagnostics or ARRA assembly

Mounting Provisions and Test Features

A mounting canopy is included for top or end mounting. The back plate has a universal knockout pattern for wall mounting, and steel knockout chevron directional indicators are provided.

Electrical features include a charge-rate and power-on LED indicator and a push-to-test switch. Self-diagnostics is an available ordering option.

Listings and Warranty

The SXTE is UL listed for damp locations and meets UL 924, the National Electrical Code (NFPA 70) and the Life Safety Code (NFPA 101). The stated warranty is five years limited on materials and electronics; the battery is prorated for five years.

Before You Order

Confirm the face, letter color, housing color and operation option; guards and self-diagnostics are optional.
