Utopia Lighting SIOL LED Curved Linear Pendant

Product Overview

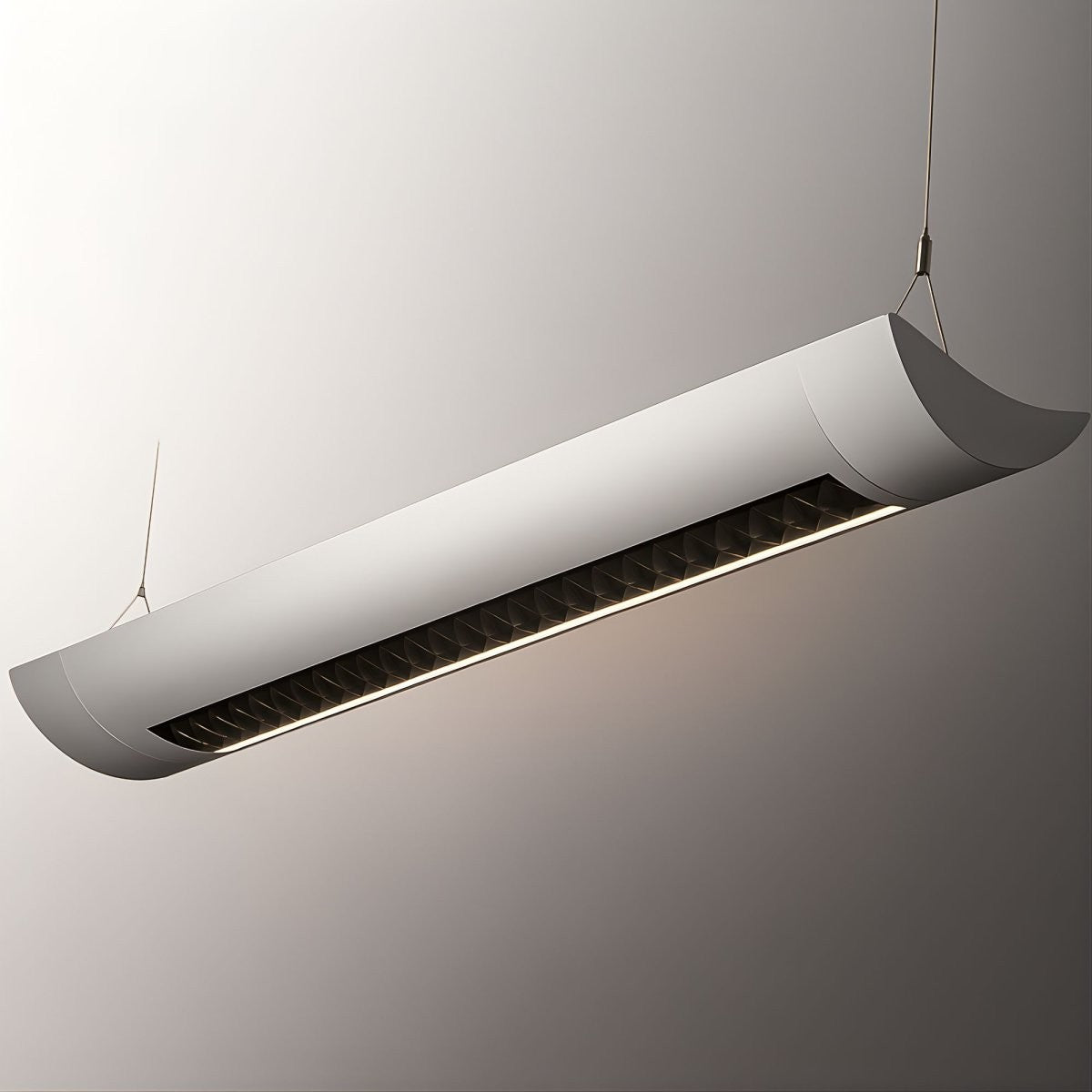

The Utopia Lighting SIOL LED Curved Linear Pendant is a suspended architectural LED linear fixture for commercial interiors. It provides direct/indirect light distribution, multiple nominal lengths and lumen packages, and factory-configurable options for reflectors, shielding, and controls.

This fixture family covers a wide range of outputs (2–243W, 750–22,096 lm) and selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K). Standard construction uses a powder-coated cold-rolled steel housing with white finish and parabolic semi‑specular louvers or optional diffusers.

Key Features

• Wattage range: 2–243W and lumen range: 750–22,096 lm depending on configuration
• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K; LEDs are LM-80 tested
• 0–10V dimmable drivers standard (typical dim to 1%) with high power factor (typical >0.95)
• Direct/indirect distribution (typical split ~39.4% down / 60.6% up) and continuous-run capability
• UL and CUL listings; listed to UL 1598 and UL 8750; suitable for damp locations
• Textured matte white powder coat standard; optional finishes, end caps, canopies and control options available

Function and typical applications

The SIOL LED is a suspended architectural linear designed for balanced visual comfort using both uplight and downlight. It is intended for architectural interiors such as offices, retail, banks, and educational spaces where continuous or individual suspended linear runs are required.

• Direct/indirect distribution produces ceiling reflection and balanced shadows.
• Can be installed individually or joined for continuous runs.

Lengths, lumen packages and ordering options

The SIOL family is modular and offered in nominal 2', 4', 8', and 12' sections which can be combined into longer continuous runs. Multiple LED lumen packages and wattages are available per section; specific combinations are selected via model code.

• Nominal lengths (in): 24, 48, 96, 144 (609 / 1220 / 2439 / 3657 mm).
• Example 2' section packages: 30L — 32.4W, 2,891 lm; 36L — 38.4W, 3,426 lm; 40L — 42.9W, 3,827 lm.
• Example 4' packages: 32L — 32W, 3,000 lm; 60L — 64.8W, 5,783 lm; 81L — 85.8W, 7,655 lm.
• 8' and 12' section options scale to higher lumen/watt packages up to 243L — 247.8W, 22,096 lm.
• Shielding and reflector options include semi‑specular louvers with white blade (WBL), perforated blade (WPL), opal overlay (OP), and frosted/prismatic lenses.

Electrical, dimming and controls

Standard drivers operate on 120–277 VAC (50/60 Hz) with high power factor and protections for surge, short-circuit and overload. A 0–10V dimmable driver is standard.

• Input voltage: 120–277V standard; other voltages available as ordering options (per model code).
• 0–10V dimming standard; multiple driver and control options offered (examples: eldoLED, Lutron Hi-lume, Philips Xitanium, DALI-ready, Bluetooth Mesh, Enlighted).
• Emergency battery backup and emergency interface options are available; some emergency options are not compatible with certain voltages (consult ordering notes).

Construction, shielding and mounting

The SIOL housing is die-formed 20-gauge cold-rolled steel with textured matte white polyester powder coat finish as standard. Parabolic semi-specular aluminum louvers and white-painted steel baffles are standard; optional end caps, reflectors and diffusers are available.

• Standard suspension: 48" aircraft cable mount kit included; adjustable cable canopy lengths available.
• Standard reflector: high-reflective white; optional anodized specular aluminum reflector.
• Shielding options: semi-specular louver (WBL), perforated blade (WPL), opal overlay (OP), frosted or clear acrylic lenses.
• Suitable for damp locations.

Dimensions, weight and photometric split

Published nominal dimensions, section weights and photometric partition help plan mounting, continuous run joins and handling.

• Width: 9 in (229 mm); Depth: 3 in (76 mm).
• Section lengths: 2' (609 mm), 4' (1220 mm), 8' (2439 mm), 12' (3657 mm).
• Typical weights: 4' section — 13.61 lbs (6.18 kg); 8' section — 23.24 lbs (10.54 kg); 12' section — 34.49 lbs (15.65 kg).
• Typical photometric split: ~39.4% down / ~60.6% up (total 100%).

Before You Order

Confirm model code, section lengths, lumen package, CCT, driver and required control or emergency options before ordering.

• Specify nominal section lengths (2', 4', 8', 12') and total run configuration.
• Select driver type and voltage per project requirements; some driver/control/emergency combinations are restricted by ordering notes.
• Include ARRA/BAA/TAA, emergency battery backup, or special finish options in the order code if required, and contact Lumera Electric for project pricing and submittals.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting SIOL LED Curved Linear Pendant. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
