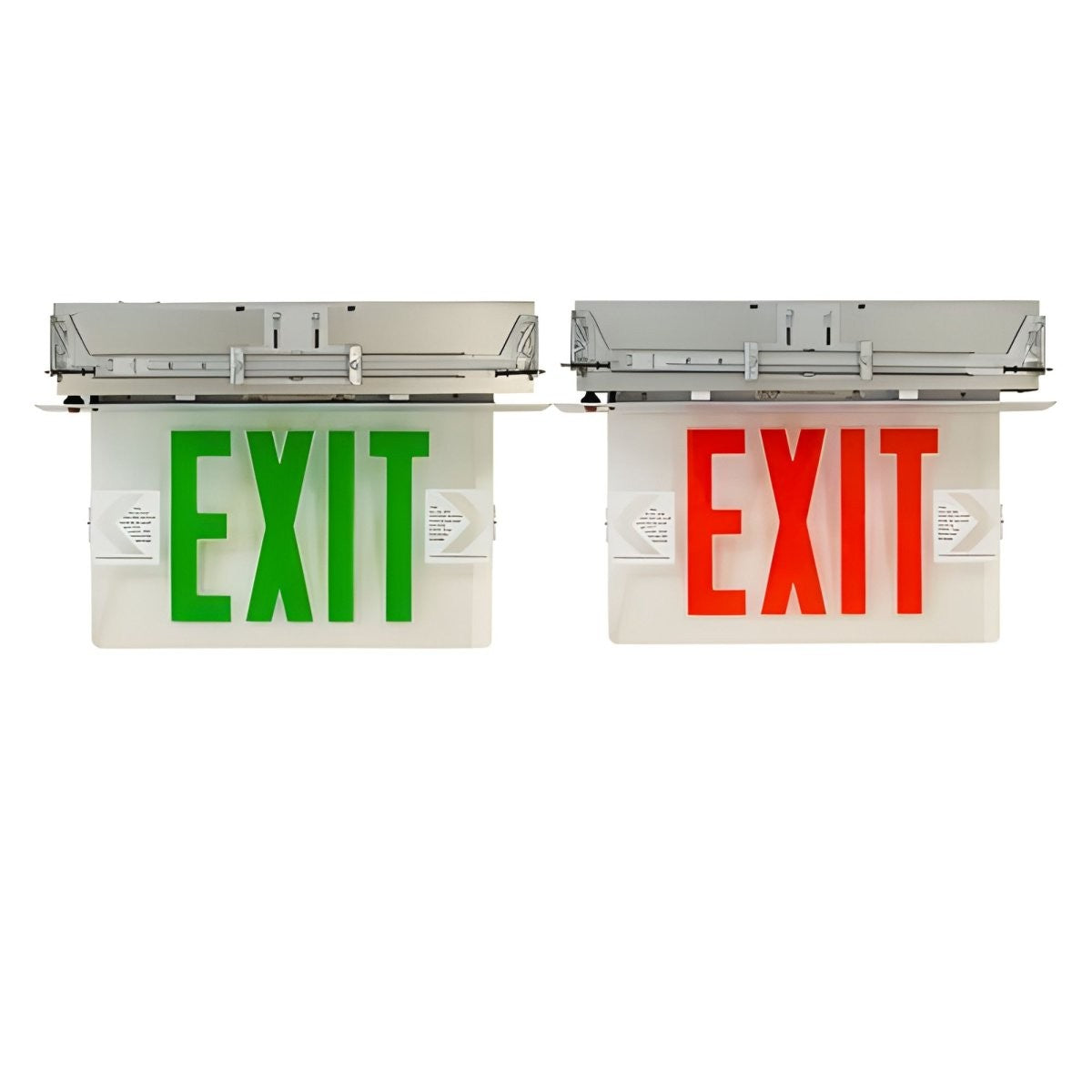

Utopia Lighting REL Edge-Lit Emergency Exit Sign with Battery

Product Overview

The Utopia Lighting REL is an edge‑lit LED exit sign combined with emergency egress lighting for commercial life‑safety applications.

It provides a 90-minute emergency runtime, includes self‑test/self‑diagnostic capability, and is listed to UL 924.

Key Features

• 90-minute emergency runtime (battery backup)
• Self‑Test / Self‑Diagnostic circuitry
• UL 924 listing
• Suitable for damp locations
• Available in single- or double-face configurations and multiple finish/option choices

Function and Intended Use

The REL combines edge‑lit LED exit signage with integrated emergency lighting to provide visible exit identification and emergency illumination for occupant egress.

• Designed for code-required exit signage with integrated emergency lighting in one assembly
• Typical installations include commercial buildings, schools, and healthcare facilities

Emergency Performance

The unit is provided with an internal battery that delivers a 90-minute emergency runtime and includes self‑test/self‑diagnostic functionality to monitor status.

• Emergency runtime: 90 minutes
• Self‑Test / Self‑Diagnostic for automatic status checks

Configuration and Ordering Options

The REL is configurable. Options cover face count, letter color, operation type, housing/trim finish, and optional features. Confirm the exact model code when ordering.

• Model base: REL
• Face: Single (S) or Double (D)
• Letter color: Red (R) or Green (G)
• Operation: AC‑only (blank) or Battery Backup (1)
• Housing/trim finishes and panel options: Clear, Mirror, Aluminum (AL), White (WH), Black (BK)
• Optional features: SDT (Self Diagnostics), SW (Special Wording sign)
• Two‑circuit operation options listed: 2-120V, 2-277V

Listings and Environmental Suitability

The REL is listed to UL 924 and is indicated for use in damp locations. Confirm local code requirements when specifying for a project.

• Safety listing: UL 924
• Other listings indicated in product data: UL, NFPA
• Location suitability: Damp locations

Before You Order

Confirm the complete model code and required options before ordering to ensure the unit meets project requirements.

• Verify face count (S or D) and letter color (R = Red, G = Green).
• Select operation (AC‑only or Battery Backup) and any optional SDT or SW features.
• Provide the full model code and quantity when requesting a quote from Lumera Electric.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting REL Edge-Lit Emergency Exit Sign with Battery. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
