Utopia Lighting LSP Recessed Lay-In Light

Product Overview

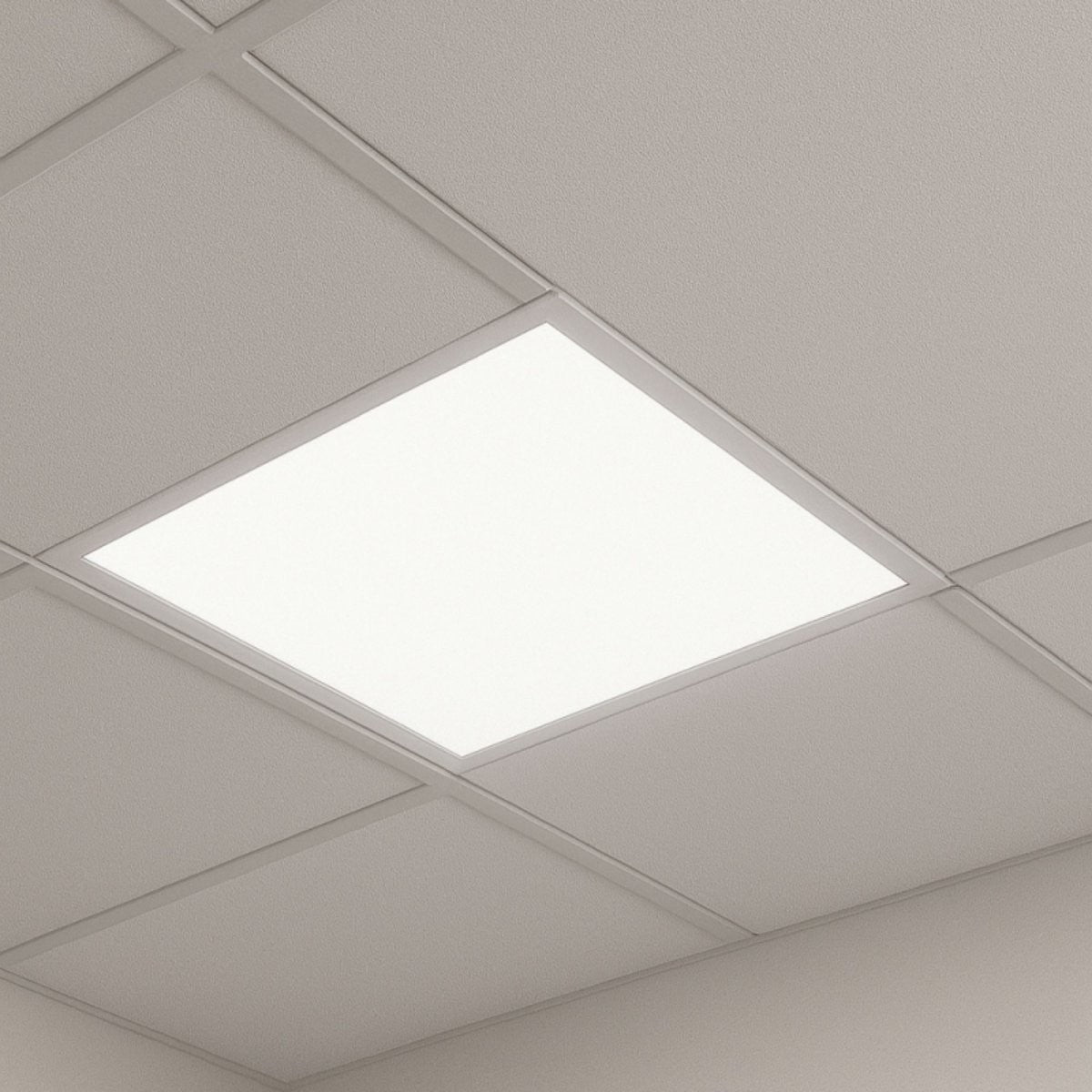

The Utopia Lighting LSP is a recessed LED back-lit panel designed to lay into drop ceilings. Listed applications include offices, schools, and healthcare spaces.

The LSP is available in 2' x 2' and 2' x 4' sizes. Wattage, lumen output, color temperature, dimming driver, and mounting options vary by configuration.

Key Features

• Back-lit LED panel with an aluminum body and white powder-coated finish.
• Impact-resistant frosted lens and slim profile.
• 3500K or 4000K color temperature options; CRI Ra>80.
• 120–277 VAC input and multiple dimming-driver options.
• UL listed; suitable for damp locations, Type IC.

LSP LED Back-Lit Panel for Lay-In Ceilings

The Utopia Lighting LSP is a recessed LED panel designed to lay into drop ceilings. Its back-lit design uses a frosted lens, and listed applications include offices, schools, and healthcare spaces.

Sizes, Wattages, and Light Output

The LSP comes in two sizes. The 2' x 2' configuration is listed at 36W and 4,500 lm; the 2' x 4' configuration is listed at 46W and 5,450 lm. Maximum LED wattage for the 2' x 4' size is listed as 65W.

• 2' x 2': 36W, 4,500 lm; maximum LED wattage 36W.
• 2' x 4': 46W, 5,450 lm; maximum LED wattage 65W.
• LED efficiency: up to 125 lm/W.

Color Temperature and Dimming Options

The LSP is available in 3500K or 4000K, with CRI Ra>80. Driver and dimming choices vary by configuration.

• The standard DM driver provides 0–10V dimming from 5% to 100%; DM1 provides 0–10V dimming from 1% to 100%.
• Other listed choices include step dimming, Triac, ELV, and Lutron EcoSystem options. Some options are limited to specific input voltages.

Mounting Options and Listings

Recessed T-bar mounting is standard for 9/16-inch and 15/16-inch grids. Other listed options include a flange kit for hard ceilings, a surface-mount kit, and a 66-inch aircraft cable.

• UL listed; suitable for damp locations, Type IC.
• ARRA and BAA compliance are available as options.

Before You Order

Specify the size, color temperature, driver, and mounting option required for your LSP configuration.

• Check that the selected mounting option suits the intended ceiling configuration.
• Select the required color temperature and dimming driver.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting LSP Recessed Lay-In Light. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
