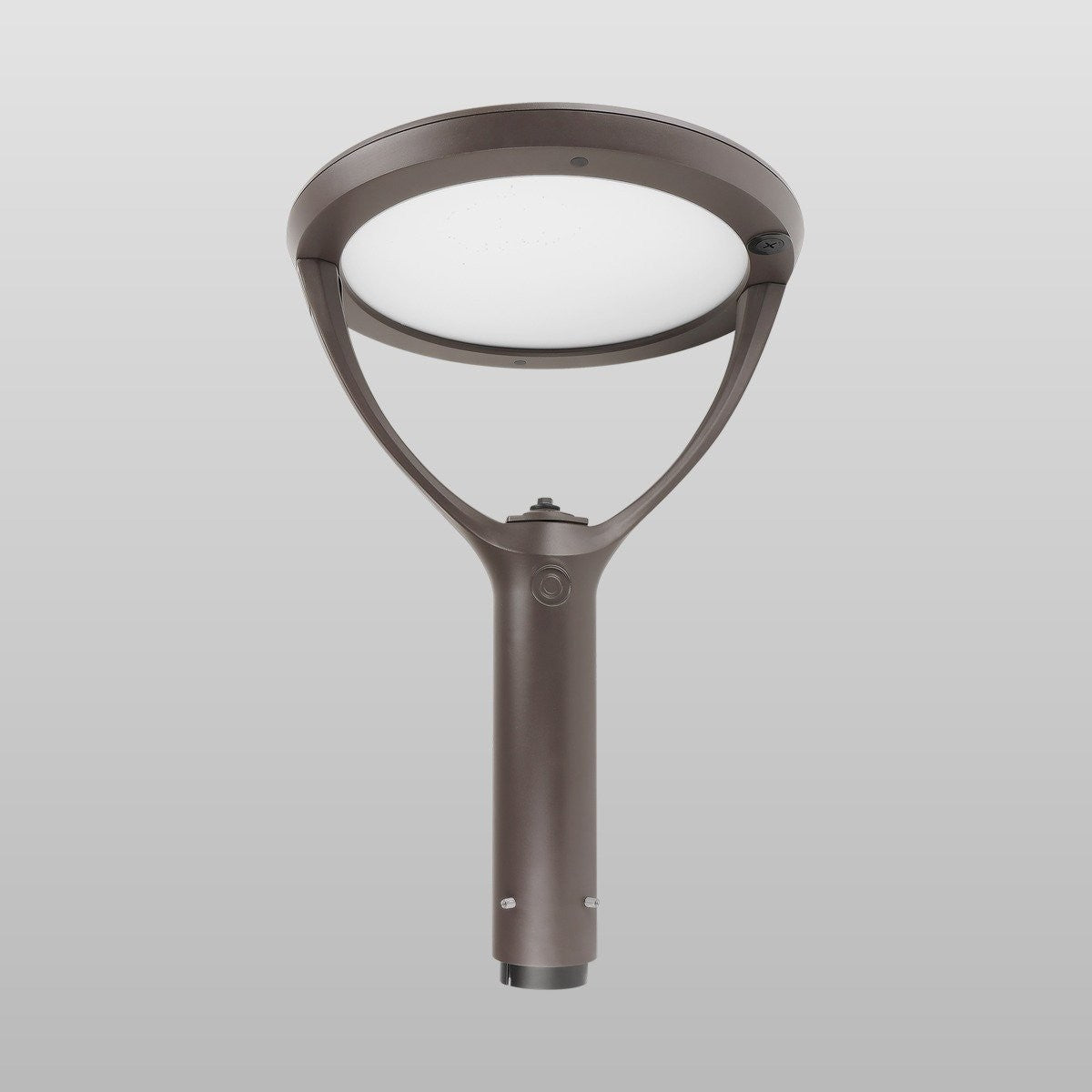

Utopia Lighting LPT1-2G LED Post Top Light

Product Overview

The Utopia Lighting LPT1-2G is a commercial-grade LED post-top fixture for exterior architectural and site lighting. It features a die-cast aluminum housing, field-selectable wattage, color temperature and distribution, and a built-in on/off photocell.

Configurations provide 52–130W input, lumen outputs up to 20,000 lm depending on wattage, distribution and CCT. Voltage options include 120–347V or 277–480V. The product is DLC Premium listed, Dark Sky compliant, and UL/cUL wet-location listed per the manufacturer.

Key Features

• Field adjustable wattage: 52W, 78W, 104W, 130W
• Field selectable CCT: 3000K, 4000K, 5000K
• Field selectable distributions: Type III, Type IV, Type V (BeamSelectable)
• Die-cast aluminum housing; frosted diffuser listed as standard
• Built-in on/off photocell; optional plug-and-play PIR and microwave sensors (including Bluetooth variants)
• 0–10V dimming to 10%; power factor >0.90; THD <20%
• DLC Premium listed; Dark Sky compliant; UL / cUL wet location listed
• Estimated LED life per manufacturer: 100,000 hours (LM-80 / TM-21); 5-year limited warranty

What this fixture does

The LPT1-2G is a post-top LED intended for walkways, parks, plazas and commercial exterior areas. It combines decorative daytime appearance with nighttime pedestrian illumination and uses optics that the manufacturer notes as Dark Sky compliant to help minimize glare and light pollution.

• Decorative post-top form factor with die-cast aluminum housing
• Standard frosted diffuser option for softened light distribution
• Built-in on/off photocell for dusk-to-dawn switching

Power, lumen output and efficacy

Four field-adjustable wattages are available; lumen output and efficacy vary by wattage, distribution and color temperature according to manufacturer photometric data.

• 130W (LV1): manufacturer photometric tables list Type IV lumen outputs up to 20,000 lm (4000K) and Type III/IV values varying by CCT and lens.
• 104W (LV2): manufacturer lists outputs up to about 16,500 lm (Type IV, 4000K) depending on distribution/CCT.
• 78W (LV3): manufacturer lists outputs up to about 13,500 lm (Type IV/III depending on CCT).
• 52W (LV4): manufacturer lists outputs up to about 9,500 lm (Type IV, 4000K).

Selectable options and ordering

The LPT1-2G is configurable in the field and at order: wattage, CCT, distribution, voltage and finish options are specified per the manufacturer. Some finishes and custom colors may incur additional charges or setup fees.

• Field-selectable wattage: 52 / 78 / 104 / 130W
• Field-selectable CCT: 3000K / 4000K / 5000K
• BeamSelectable distributions: Type III, Type IV, Type V; frosted diffuser available
• Finish options: Dark Bronze, Black, White, Gray, or custom color (custom color may incur additional charge)

Electrical and control features

Electrical ratings and control options from the manufacturer support commercial installations and energy-saving controls.

• Input voltage options: 120–347V (UNV) or 277–480V (HV)
• 0–10V dimming to 10%; power factor >0.90; THD <20%
• Ambient operating range: -40°C to 40°C (-40°F to 104°F)
• Standard surge protection: 6kV; optional 20kV available from factory
• Optional plug-and-play PIR and microwave sensors, including Bluetooth variants

Mounting and accessory options

Manufacturer documentation lists several mounting methods and accessories to fit common pole and wall installations.

• Standard post-top mount fits 2-3/8" to 3" diameter round pole tenons
• Other mounting options: wall, surface, gooseneck and conduit pendant; square and round pole brackets available
• Optional accessories: external glare shield, photocell, plug-and-play sensors, square/round pole mounts and various brackets

Listings and warranty

The LPT1-2G carries standard commercial listings and a manufacturer warranty as detailed in product documentation.

• DLC Premium listed
• Dark Sky compliant
• UL / cUL wet location listed
• Manufacturer-estimated LED life per LM-80 / TM-21; 5-year limited warranty

Before You Order

Confirm the exact model configuration required (wattage, CCT, distribution, voltage, finish and any accessories) before ordering; some options may have additional charges or setup fees.

• Specify wattage: LV1 (130W), LV2 (104W), LV3 (78W), LV4 (52W)
• Specify voltage: UNV (120–347V) or HV (277–480V)
• Specify distribution: Type III, IV or V, or frosted diffuser
• Confirm mounting type and any pole bracket or sensor accessories

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting LPT1-2G LED Post Top Light. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
