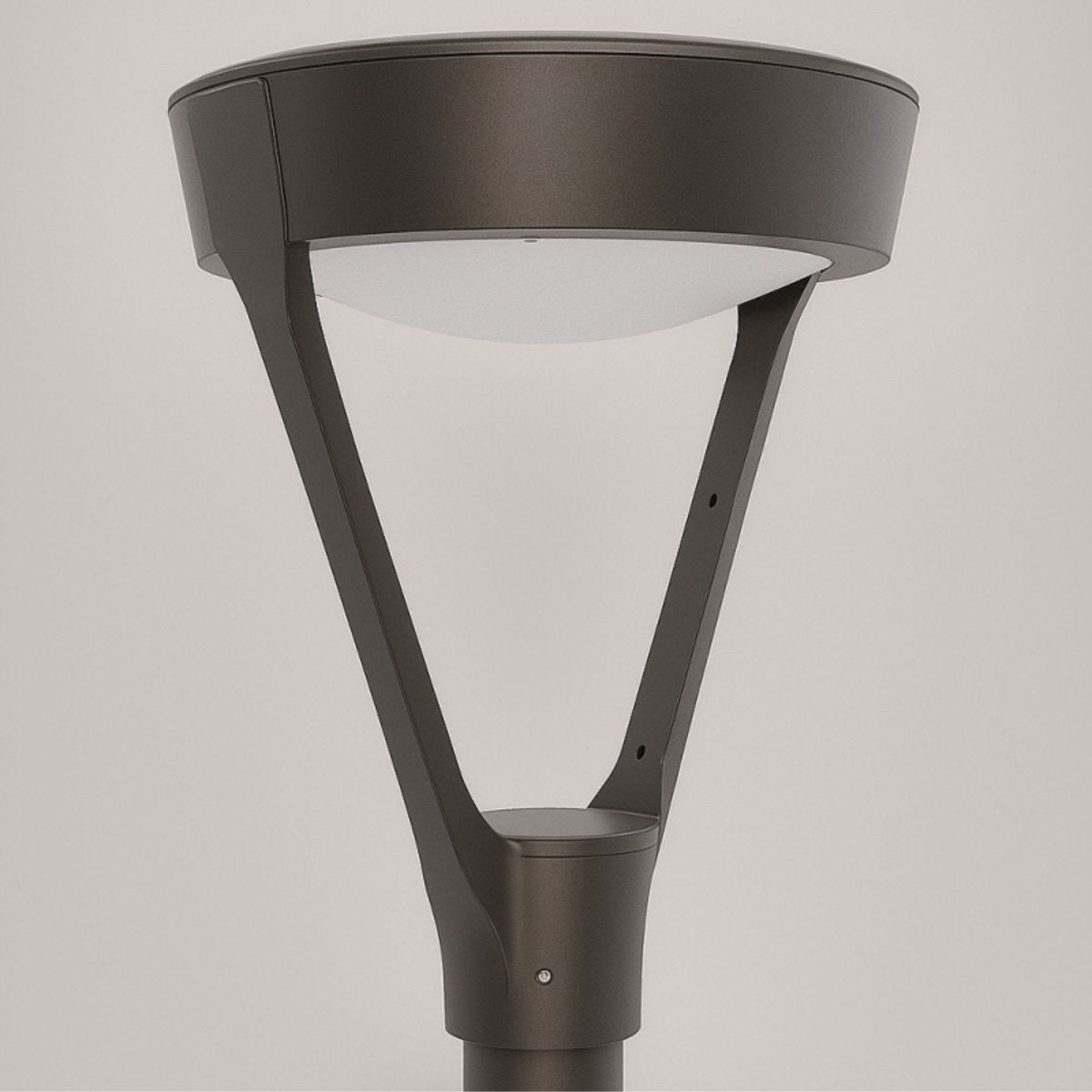

Utopia Lighting LPT-12 Post Top Light

Product Overview

The Utopia Lighting LPT-12 is a commercial-grade LED post-top outdoor fixture for perimeter and public-space illumination. It features a corrosion-resistant cast aluminum housing, UV polycarbonate lens, and a weather-resistant powder coat finish.

Available in multiple lumen packages and selectable color temperatures. Electrical features include 120–277V input, 1–10V dimming, power factor greater than 0.90, THD <20%, and an L70 rated at greater than 55,000 hours. The fixture is UL/cUL wet location listed and certain versions are DLC Premium listed.

Key Features

• Power range: 53–150W depending on configuration
• Lumen output range: 7,007–19,220 lm (model-dependent)
• Color temperatures: 3000K, 4000K, 5000K
• Corrosion‑resistant cast aluminum housing with powder‑coat finish
• Injection‑molded UV polycarbonate lens for uniform distribution
• Type VS distribution standard; EPA: 2.7 ft²
• Input voltage: 120–277V, 50/60Hz; 1–10V dimmable
• Listings: UL/cUL wet location; DLC Premium for qualifying configurations; 5‑year warranty

What this fixture is for

The LPT-12 is designed for commercial and architectural outdoor lighting applications such as building perimeters, public spaces, pathways, and plazas. Its optics and polycarbonate lens are intended to provide uniform light distribution with controlled spread.

• Intended for perimeter areas and public spaces
• Type VS distribution standard for controlled spread

Performance and lumen packages

Multiple LED packages and selectable options are available to match required output and efficiency for different projects.

• 53W (53LED): 7,007 lm, 132 lm/W
• 82W (82LED): 10,201 lm, 124 lm/W
• 136W (136LED): 14,555 lm, 107 lm/W
• 3SH selectable: 100/125/150W → 12,800 / 16,000 / 19,220 lm (listed efficacy ~128 lm/W for those settings)
• 3SL selectable: 45/60/80W → 5,355 / 7,140 / 9,567 lm (listed efficacy ~119 lm/W for those settings)
• Rated L70 > 55,000 hours

Electrical requirements and controls

Confirm electrical compatibility and control requirements for your installation.

• Input voltage: 120–277V, 50/60Hz (UNV)
• Dimming: 1–10V dimming (documentation notes 1–10V; electrical spec lists 1–10V dimmable)
• Power factor > 0.90; THD < 20%
• Operating temperature range: -40°F (-40°C) to 104°F (40°C)
• Factory options include integrated photocell (standard), optional HD401 microwave motion sensor, optional 3-pin receptacle and twist-lock photocell, optional 10 kV surge protector, and CASAMBI-ready options (contact factory for details)

Mounting and physical dimensions

The fixture is supplied for top-entry pole mounting and has optional mounting accessories for poles and wall applications.

• Standard pole adapter: 2-3/8" (60 mm); optional 3" (76 mm)
• Wall mount accessory (WM) available
• EPA: 2.7 ft²
• Key dimensions from manufacturer drawings include overall length up to 22.3" (567 mm); refer to factory drawings for full dimensional details

Listings and warranty

The LPT-12 carries safety and performance listings appropriate for exterior commercial use; verify specific configuration listings as needed.

• UL / cUL wet location listed
• DLC Premium listed for qualifying configurations — check the DLC Qualified Products List for specific SKUs
• 5‑year limited warranty

Before You Order

Confirm exact model configuration, lumen package, color temperature, finish, mounting option, and any factory-installed controls before ordering.

• Verify pole adapter size (2-3/8" standard or 3" optional) and required mounting accessory
• Check DLC Qualified Products List for specific SKUs if DLC qualification is required
• Specify required factory-installed controls (photocell, motion sensor, surge protector, CASAMBI options) when requesting a quote
