Utopia Lighting LEDCAEM Chicago Approved LED Emergency Light

Product Overview

The Utopia Lighting LEDCAEM is a City of Chicago–approved, self‑contained LED emergency light for commercial egress and path‑of‑egress illumination. It is UL 924 listed and suitable for damp locations.

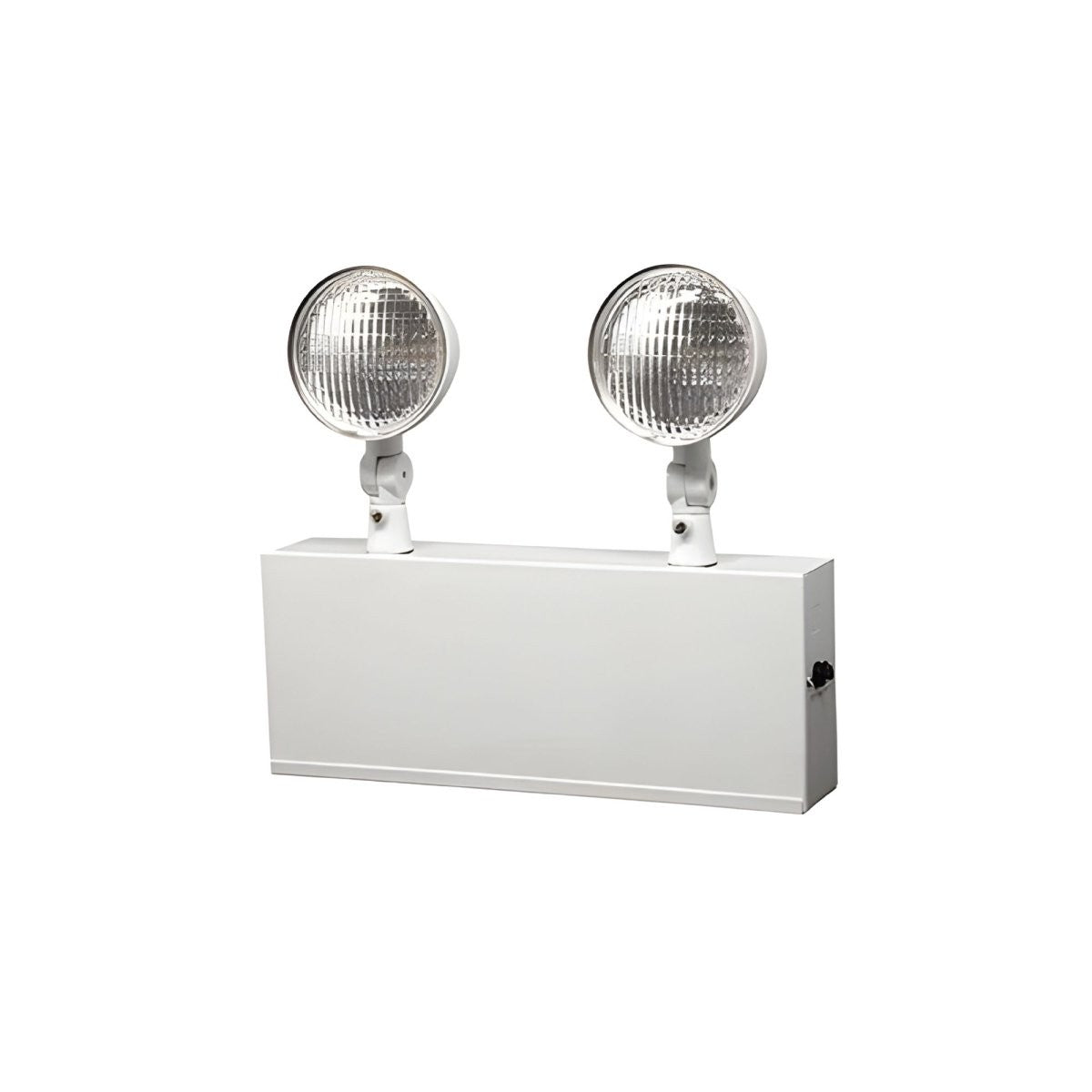

Constructed of 20‑gauge steel, the unit includes two adjustable LED lamp heads, a maintenance‑free 6V sealed lead‑acid battery, automatic transfer and charging circuitry, and is rated to provide a minimum of 120 minutes of emergency illumination.

Key Features

• City of Chicago approved; UL 924 listed
• Dual voltage: 120/277V
• Available configurations: 10W (LEDCAEM‑10) and 20W (LEDCAEM‑20)
• Durable 20‑gauge steel housing available in white or black
• Two adjustable 6V, 5.3W LED lamp heads
• 6V sealed lead‑acid battery with automatic two‑rate charger and low voltage disconnect
• Push‑to‑test switch and charge‑on LED indicator
• UL listed for damp locations; 5‑year warranty on electronics and housing (battery prorated 2 years)

What this unit does

The LEDCAEM is a self‑contained emergency lighting unit that automatically switches to battery power during a utility outage and provides at least 120 minutes of emergency illumination to its heads.

• Two adjustable LED heads provide directional emergency illumination.
• Includes push‑to‑test switch and charge indicator to support required testing.

Electrical and battery details

The unit features 120/277V dual‑voltage operation, a maintenance‑free 6V sealed lead‑acid battery, a solid‑state transfer switch, and a two‑rate charger to recharge a discharged battery within 24 hours per manufacturer data.

• Input voltage: 120/277V dual voltage.
• Available wattage configurations: 10W (LEDCAEM‑10) and 20W (LEDCAEM‑20).
• Manufacturer input power examples: LEDCAEM‑10 — 8.4W (120V), 9.4W (277V); LEDCAEM‑20 — 8.7W (120V), 10.0W (277V).
• Remote lamp capability: 10W remote capacity standard on 20W models.
• Low Voltage Disconnect (LVD) prevents deep battery discharge.

Mounting and conduit options

The LEDCAEM is intended for wall mounting and includes knockouts for conduit feed applications.

• Back knockouts for wall mount.
• Side and top knockouts for conduit feed.

Dimensions and construction

The housing is 20‑gauge steel and is offered in white or black finishes. Manufacturer drawings provide dimensional references for planning installations.

• Construction: 20‑gauge steel housing.
• Lamp heads: two steel‑material adjustable heads using 6V, 5.3W LEDs.
• Environmental rating: UL listed for damp locations; operating temperature range per manufacturer is 68°F (20°C) to 122°F (50°C).

Model configurations and ordering

The LEDCAEM is configurable by housing color and wattage. Confirm the model code and options when requesting a quote or ordering.

• Ordering example: LEDCAEM‑10 denotes the 10W configuration.
• Housing color code: (blank) = white, B = black.
• Wattage options: 10W or 20W (20W models include 10W remote capacity).

Before You Order

Confirm the exact model code, housing color, and wattage required for your project before requesting a quote.

• Verify whether you need the 10W (LEDCAEM‑10) or 20W (LEDCAEM‑20) configuration.
• Select housing color: blank = white, B = black.
• If remote lamp capability is required, note that 20W models include 10W remote capacity.
• Contact Lumera Electric for project pricing, specification support, and lead‑time details.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting LEDCAEM Chicago Approved LED Emergency Light. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
