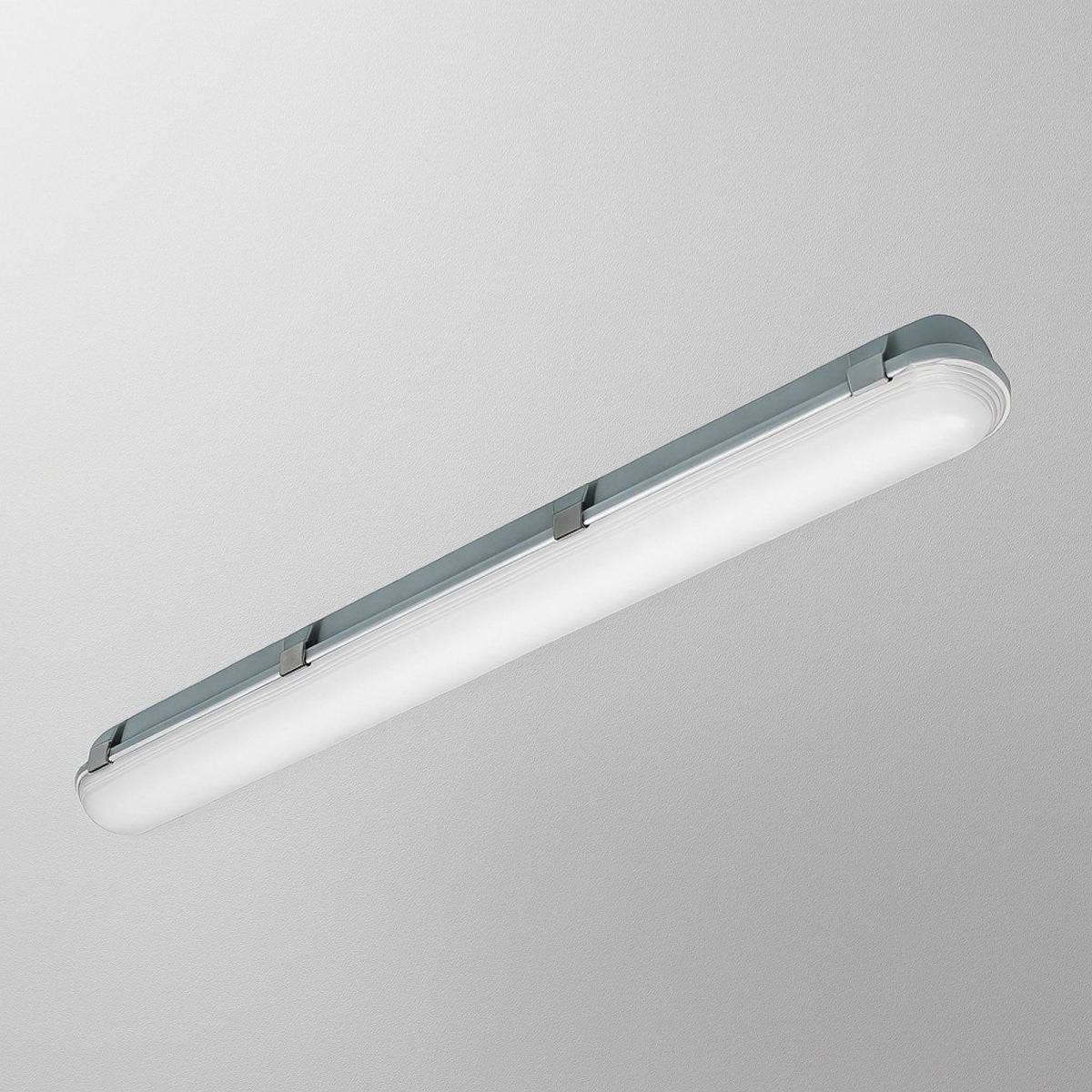

Utopia Lighting LDW-2G Enclosed and Gasket Fixture

Product Overview

The Utopia Lighting LDW-2G is an LED gasket enclosure fixture for indoor and outdoor applications where resistance to dust, moisture, and other non-hazardous contaminants is needed. It has a one-piece polycarbonate housing, a powder-coated steel gear tray, and a translucent acrylic diffuser.

The LDW-2G is available in 4 ft and 8 ft configurations, with selectable 3500K, 4000K, or 5000K color temperature and multiple wattage choices. Voltage, dimming, mounting, and optional features depend on the configuration ordered.

Key Features

• 4 ft models: 34W, 38W, or 45W; 8 ft models: 65W, 75W, or 90W.
• Selectable 3500K, 4000K, or 5000K color temperature.
• 120–277V AC input and 0-10V dimming.
• One-piece polycarbonate housing, powder-coated steel gear tray, and impact-resistant translucent acrylic diffuser.
• Chain or surface mounting; mounting bracket provided.
• UL listed and IP65 rated; suitable for damp and wet locations. DLC qualification varies by version.

Enclosure construction and applications

The LDW-2G is an LED gasket enclosure fixture for indoor and outdoor applications where resistance to dust, moisture, and other non-hazardous contaminants is needed. Identified applications include refrigerated areas, kitchens, parking garages, car washes, schools, government facilities, public areas, and industrial spaces with low to medium mounting heights.

Its enclosure uses a one-piece polycarbonate housing and powder-coated steel gear tray. A translucent, impact-resistant acrylic linear diffuser is secured with a captive stainless-steel snap-action latch.

Lengths, wattages, and light output

The LDW-2G is available in 4 ft and 8 ft versions. Wattage and lumen output vary by configuration and selected color temperature.

• 4 ft: 34W, 38W, or 45W; published outputs range from 4,658 to 5,940 lumens.
• 8 ft: 65W, 75W, or 90W; published outputs range from 8,905 to 11,880 lumens.
• Selectable color temperatures: 3500K, 4000K, or 5000K.
• Published efficacy varies by configuration from 130 to 139 lm/W.

Input voltage and dimming

The electronic driver operates on 120–277V AC at 50/60 Hz. The ordering information identifies 0-10V dimming, with dimming to 10%.

Mounting and dimensions

The LDW-2G supports chain or surface mounting, and a mounting bracket is provided. Wiring knockouts are located on the back and at each end of the housing; poke-in wire connectors are specified.

• 4 ft: 47.2 in long × 3.5 in wide × 3.1 in deep.
• 8 ft: 94.5 in long × 3.5 in wide × 3.1 in deep.

Ratings and optional configurations

The LDW-2G is UL listed and IP65 rated, and is suitable for damp and wet locations. DLC qualification varies by version; check the qualified-products listing for the specific configuration.

Optional configurations include emergency battery backup, occupancy sensors, fail-to-on emergency lighting, antimicrobial coating, and assembled-in-USA designation. These options are not included in every fixture.

Before You Order

Confirm the required length, wattage, color temperature, voltage, and options; DLC qualification varies by version.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting LDW-2G Enclosed and Gasket Fixture. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
