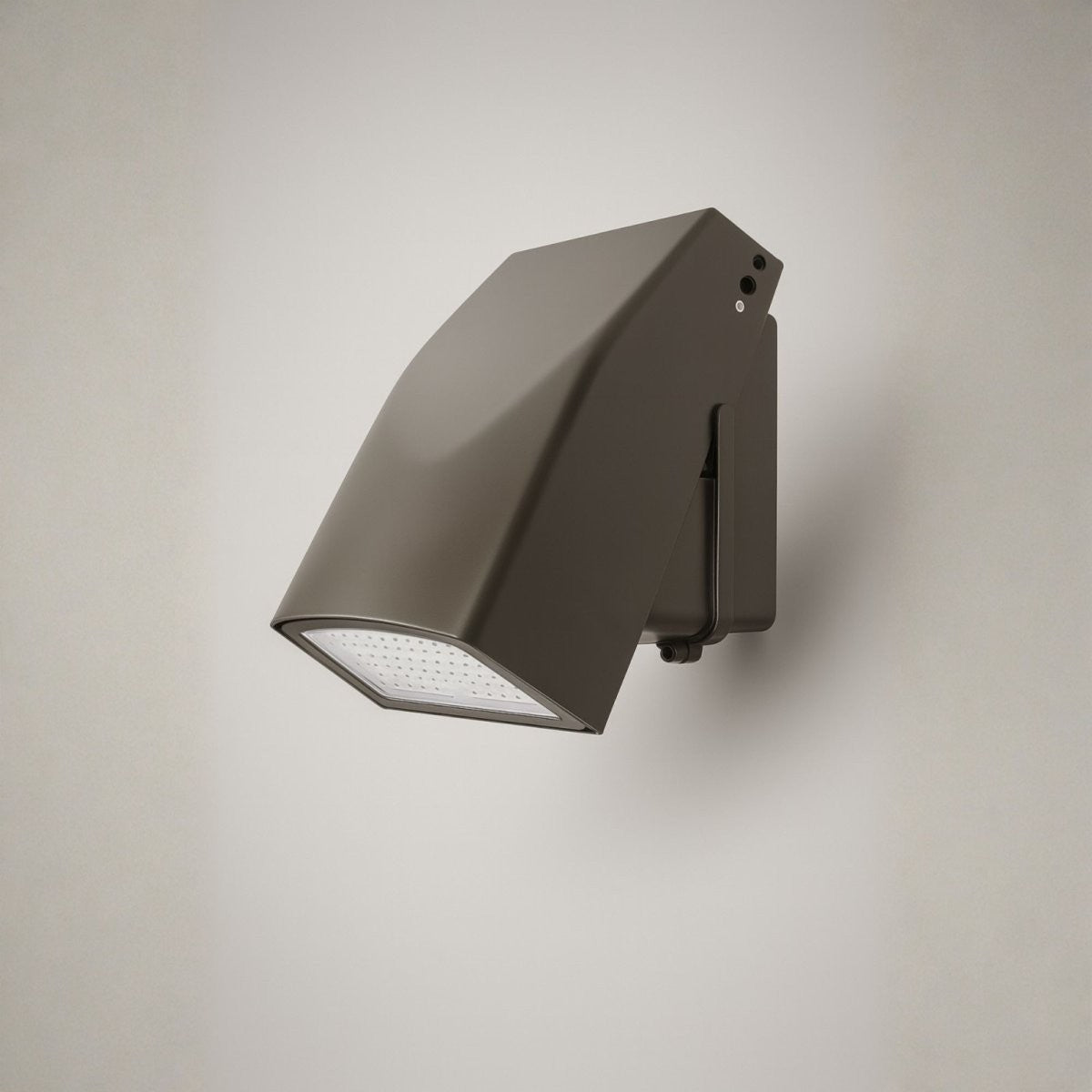

Utopia Lighting LCW-3G Adjustable Slim Wall Pack
Description
The Utopia Lighting LCW-3G Adjustable Slim Wall Pack is a commercial-grade led wall pack engineered for building exteriors, entryways, and perimeter security lighting. It delivers 16-88W, 175-12124 lm, 3000K/4000K/5000K with the durability and code compliance specifiers require for exterior applications.
This fixture is available in multiple configurations — see the ordering options below and request a quote for your project specification.
Key Features- Power: 16-88W
- Output: 175-12124 lm
- Efficacy: 175 lm/W
- Color temperature: 3000K/4000K/5000K
- Voltage: 120-277V
- Dimming: 0-10V
- Outdoor-rated commercial LED construction
| Brand | Utopia Lighting |
|---|---|
| Model | LCW-3G |
| Type | LED Wall Pack |
| Wattage | 16-88W |
| Lumens | 175-12124 lm |
| Efficacy | 175 lm/W |
| Color Temperature | 3000K/4000K/5000K |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Listings | UL, CUL, DLC, WET LOCATION |
- MODEL LED COLOR TEMP. DISTRIBUTION VOLTAGE LED DRIVER
- LCW-3G 3SL 40/32/24/16W field selectable 3T 3000/4000/5000K field selectable (Blank) Type III UNV 120-277V DM 0-10V dimmable
- 3SH 80/64/48/32W field selectable
- FINISH OPTIONS
- BZ Dark Bronze RAL#8019 (Std.) PC3 With Photocell - Button Type 120/277V
- *BK Black RAL#9011 ARRA Assembled in USA for Buy American act
- *WH White RAL#9016 CASAMBI Contact factory for CASAMBI READY options
- *GR Gray RAL#7045
Typical applications include building exteriors, entryways, and perimeter security lighting.
Request a Quote: This product is configurable. Select your options and request a quote, or contact Lumera Electric for project pricing and lead times.
Lumera Electric supplies Utopia Lighting commercial outdoor LED fixtures with full specifications and project support for contractors, distributors, and specifiers.
