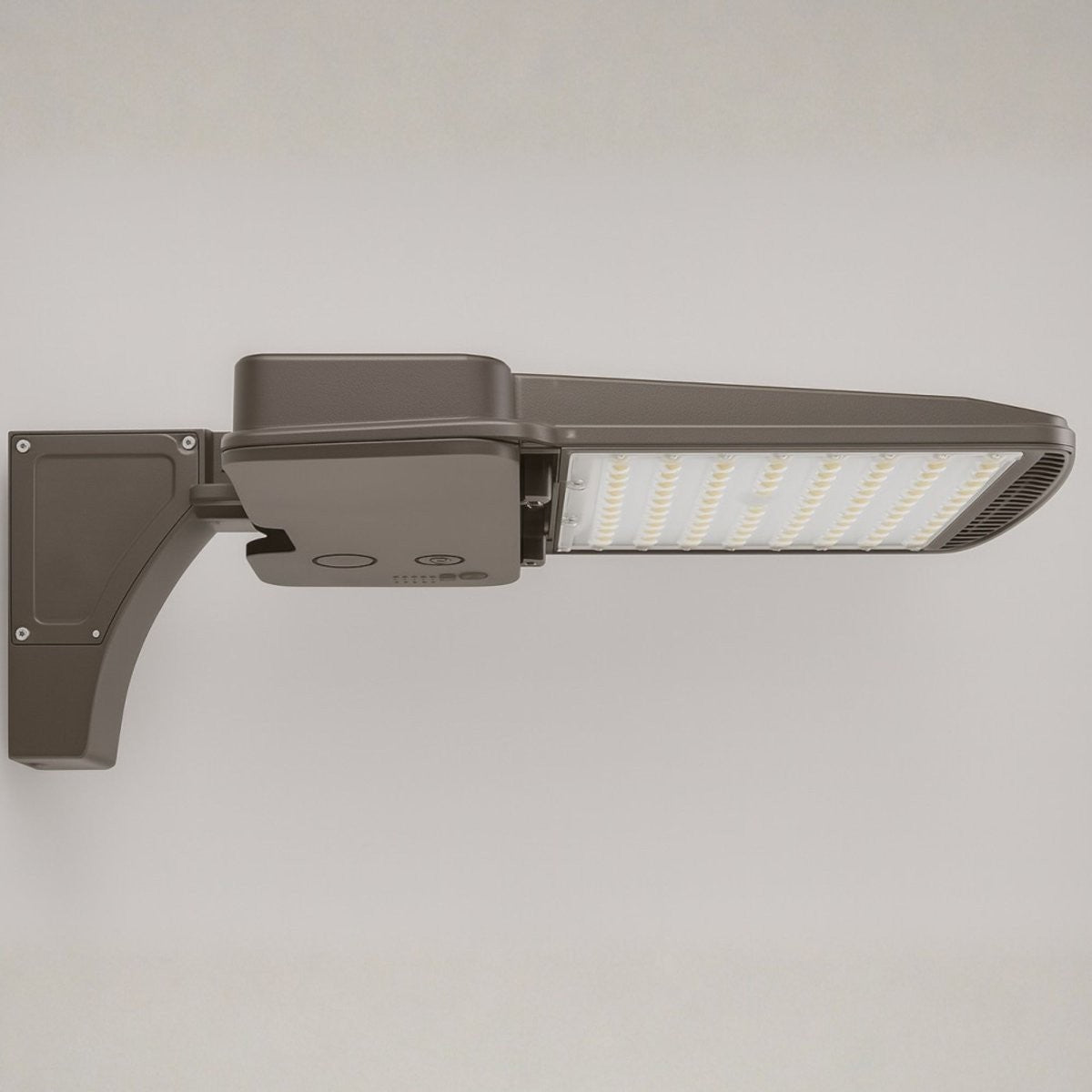

Utopia Lighting LAL LED Area Light

Product Overview

The Utopia Lighting LAL is a commercial-grade LED area light intended for outdoor commercial spaces such as parking lots, campuses, and large outdoor areas.

The fixture is configurable with field-selectable wattages and color temperatures and is offered in multiple distribution and voltage configurations. Contact Lumera Electric for project pricing and configuration assistance.

Key Features

• Field-selectable wattage configurations covering nominal 100–400W model groups
• Documented lumen range up to 41,000 lm depending on configuration
• Efficacy listed at 145 lm/W
• Field-selectable color temperatures: 3000K, 4000K, 5000K
• Standard voltage: 120–277V (UNV); higher-voltage options referenced for some configurations
• Dimming: 0–10V
• Listings: UL, DLC

Function and intended use

The LAL LED Area Light is intended for exterior commercial applications such as parking lots, campuses, and other large outdoor areas that require broad-area illumination.

• Typical applications listed: parking lots, campuses, large commercial outdoor areas
• Commercial outdoor-rated construction suitable for exterior installations (per product listing)

Performance and output

Performance varies by the selected configuration. The product data lists a lumen range up to 41,000 lm and an efficacy value of 145 lm/W.

• Wattage groups: nominal coverage across 100–400W model groupings (field-selectable within model codes)
• Lumen range: up to 41,000 lm depending on configuration
• Efficacy: 145 lm/W (stated)

Available configurations and options

The LAL series is offered in multiple model codes with field-selectable wattage groupings, distribution types, and color temperatures. Order by specifying the model code that matches required wattage, distribution, voltage, and CCT.

• Example field-selectable wattage groupings shown in product data include: 40/60/80/100W; 60/90/120/140W; 72/108/144/180W; 100/150/200/250W; 120/180/240/300W; and 300/320/360/400W
• Distribution types referenced in product data: Type II, Type III, Type IV, Type V (availability depends on model code)
• Field-selectable color temperatures: 3000K, 4000K, 5000K

Controls and electrical requirements

The fixture supports 0–10V dimming and is offered with standard universal voltage and select higher-voltage options. Verify the model code for exact electrical compatibility.

• Dimming: 0–10V
• Standard voltage: 120–277V (UNV)
• Higher-voltage options (e.g., 347–480V) are referenced for some model codes

Listings and specifier credentials

The product data lists UL and DLC as the included listings.

• Listings: UL, DLC

Before You Order

Confirm the exact model code and options (wattage grouping, distribution type, color temperature, and voltage) before ordering; the product is configurable and final performance depends on selected options.

• Select the specific model code that matches required wattage grouping and distribution
• Confirm line voltage requirement (standard UNV 120–277V or referenced HV options)
• Request a quote or contact Lumera Electric for configuration support

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting LAL LED Area Light. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
