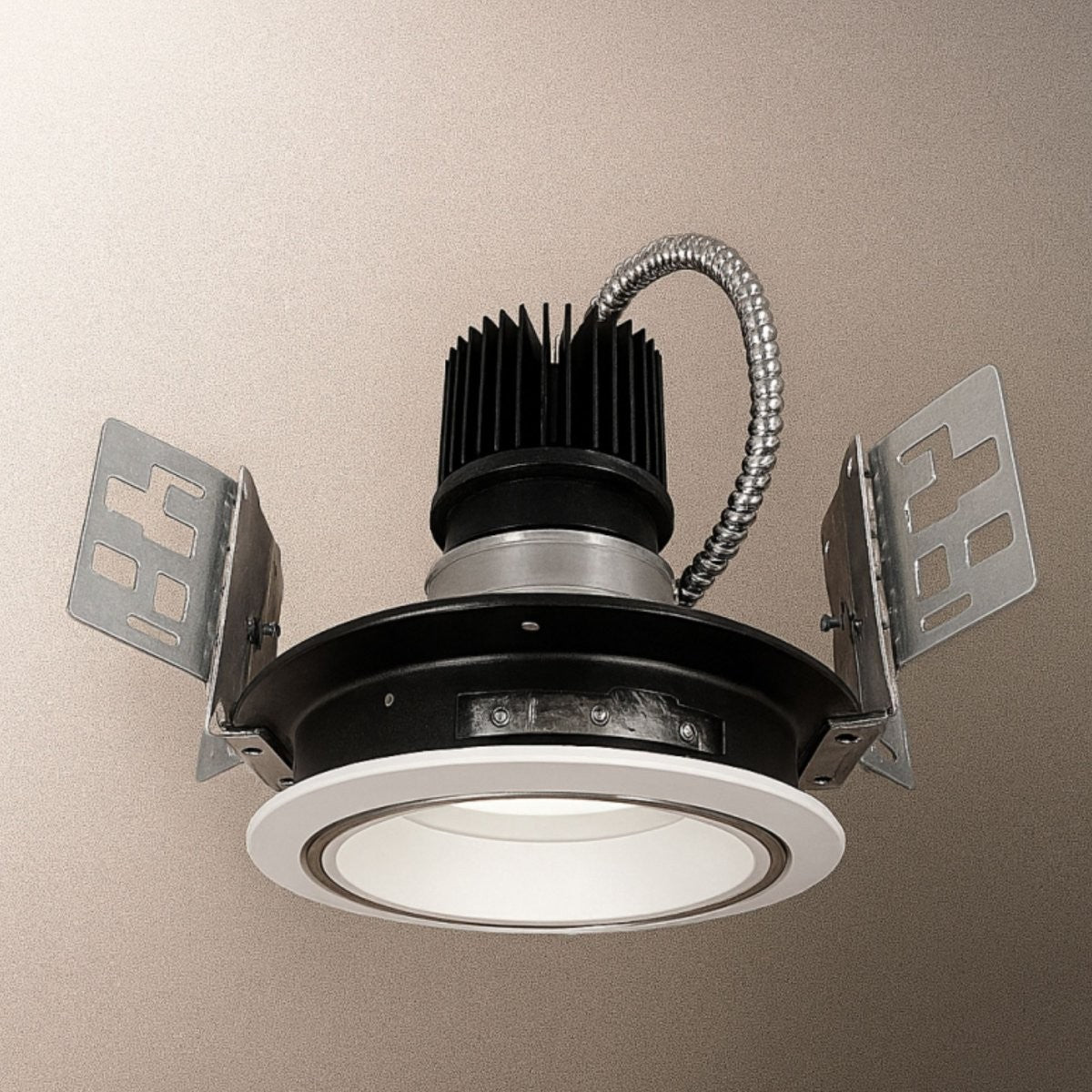

Utopia Lighting LAD6A 6-Inch LED Downlight

Product Overview

The Utopia Lighting LAD6A is a commercial-grade 6-inch LED downlight intended for commercial interiors such as lobbies, corridors, and retail spaces.

The LAD6A is offered in multiple configurable outputs and color temperatures to match project requirements.

Key Features

• Wattage range: 10–100W (catalog range)
• Lumen range: 2,490–8,550 lm (catalog range)
• Efficacy listed in catalog: 96 lm/W
• Selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
• Input voltage: 120–277V
• Dimming: 0–10V (catalog lists 0–10V dimming)
• Listings and location ratings included in catalog listings

What this fixture is for

The LAD6A is intended for commercial interior lighting applications; the catalog cites use in commercial ceilings, lobbies, corridors, and retail spaces.

• Designed for general commercial interior downlighting
• Multiple output and color-temperature configurations available to suit project needs

Light output and efficiency

The LAD6A family covers a range of wattages and lumen outputs so projects can select an appropriate package.

• Wattage (catalog): 10–100W
• Lumen range (catalog): 2,490–8,550 lm
• Efficacy: catalog lists 96 lm/W

Voltage and dimming options

The catalog lists 120–277V input and 0–10V dimming as standard; specific driver and dimming options are shown in the ordering information for particular configurations.

• Input voltage: 120–277V (catalog: UNV)
• Dimming: 0–10V listed in catalog
• Ordering information in the catalog shows additional driver options tied to specific configurations

Certifications and environment

Listings and location ratings are included in the catalog listings.

• Listings shown in catalog: UL, CUL, DLC
• Location ratings shown in catalog: Wet Location and Damp Location

Ordering configuration and options

The LAD6A is configurable. When requesting a quote, select the desired lumen package, color temperature, voltage, and driver/dimming option as indicated in the catalog.

• Color temperatures listed: 2700K, 3000K, 3500K, 4000K, 5000K
• Example catalog lumen/watt entries: 11W (~1,084 lm), 16W (~1,578 lm), 25W (2,490 lm), 38W (~4,007 lm), 50W (4,602 lm), 70W (6,874 lm) and higher-output options up to 8,550 lm
• Driver/dimming options are shown per configuration in the catalog (0–10V and other driver types listed for specific models)

Before You Order

Confirm the exact model configuration, lumen package, color temperature, voltage, and driver/dimming option before ordering.

• Specify required lumen output and CCT (2700K–5000K)
• Confirm voltage and driver/dimming option from the cataloged ordering choices
• Contact Lumera Electric to request a quote with selected options

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting LAD6A 6-Inch LED Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
