Utopia Lighting Frame LED T-Bar Light

Product Overview

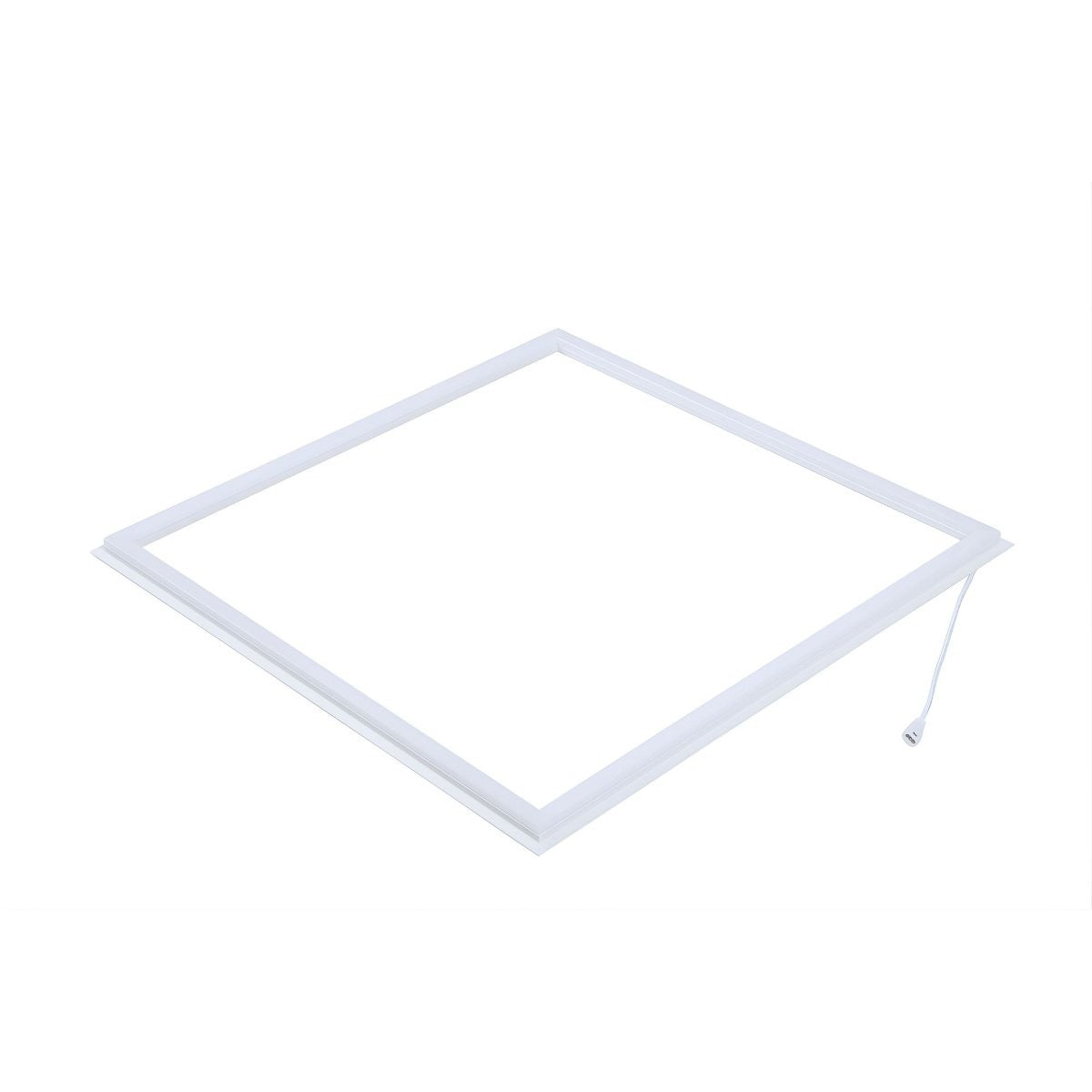

The Utopia Lighting Frame LED is an edge-lit indoor linear fixture for recessed grid mounting. It is available in 2′ × 2′ and 2′ × 4′ sizes, with selectable wattage and field-adjustable color temperature.

The Frame LED operates on 120–277V AC input and supports 0–10V dimming from 10% to 100%. Optional aircraft-cable suspension and a field-installable flange kit are listed as mounting configurations.

Key Features

• Edge-lit design with a 120° beam angle
• Field-adjustable 3000K, 3500K, 4000K, 5000K, or 6500K color temperature
• 0–10V dimming from 10% to 100%
• Aluminum construction with a white powder-coated finish
• ETL listed and DLC Premium listed; five-year warranty

Frame LED Design and Applications

The Utopia Lighting Frame LED uses an edge-lit design intended to provide even, consistent illumination. Listed applications include offices, retail spaces, schools, restaurants, healthcare, residential, and hospitality settings.

Sizes, Wattages, and Light Output

Frame LED configurations are available in 2′ × 2′ and 2′ × 4′ sizes. Wattage and lumen output depend on the selected size and LED configuration.

• 2′ × 2′: 20W, 30W, or 40W; 2,500, 3,750, or 5,000 lumens at 4000K
• 2′ × 4′: 40W, 50W, or 60W; 5,000, 6,250, or 7,500 lumens at 4000K
• Lumen efficiency: ≥125 lm/W

Electrical, Dimming, and Color Temperature

The fixture is specified for 120–277V AC input at 50/60 Hz. Its standard dimming option is 0–10V, adjustable from 10% to 100%.

• Field-adjustable color temperatures: 3000K, 3500K, 4000K, 5000K, and 6500K
• CRI: Ra >80
• Power factor: >0.9; total harmonic distortion: <10%

Mounting and Construction

The Frame LED is suitable for recessed T-bar mounting. Optional aircraft-cable suspension and a field-installable flange kit are also listed.

• Aluminum construction with a white powder-coated finish
• Dimensions: 23.75″ × 23.75″ for 2′ × 2′; 47.76″ × 23.75″ for 2′ × 4′
• IP40 rating; specified ambient operating temperature: -4°F to 113°F

Listings and Warranty

The Frame LED is ETL listed and DLC Premium listed. The warranty period is five years.

Before You Order

Select the fixture size, wattage, color-temperature setting, and mounting configuration for your project.
