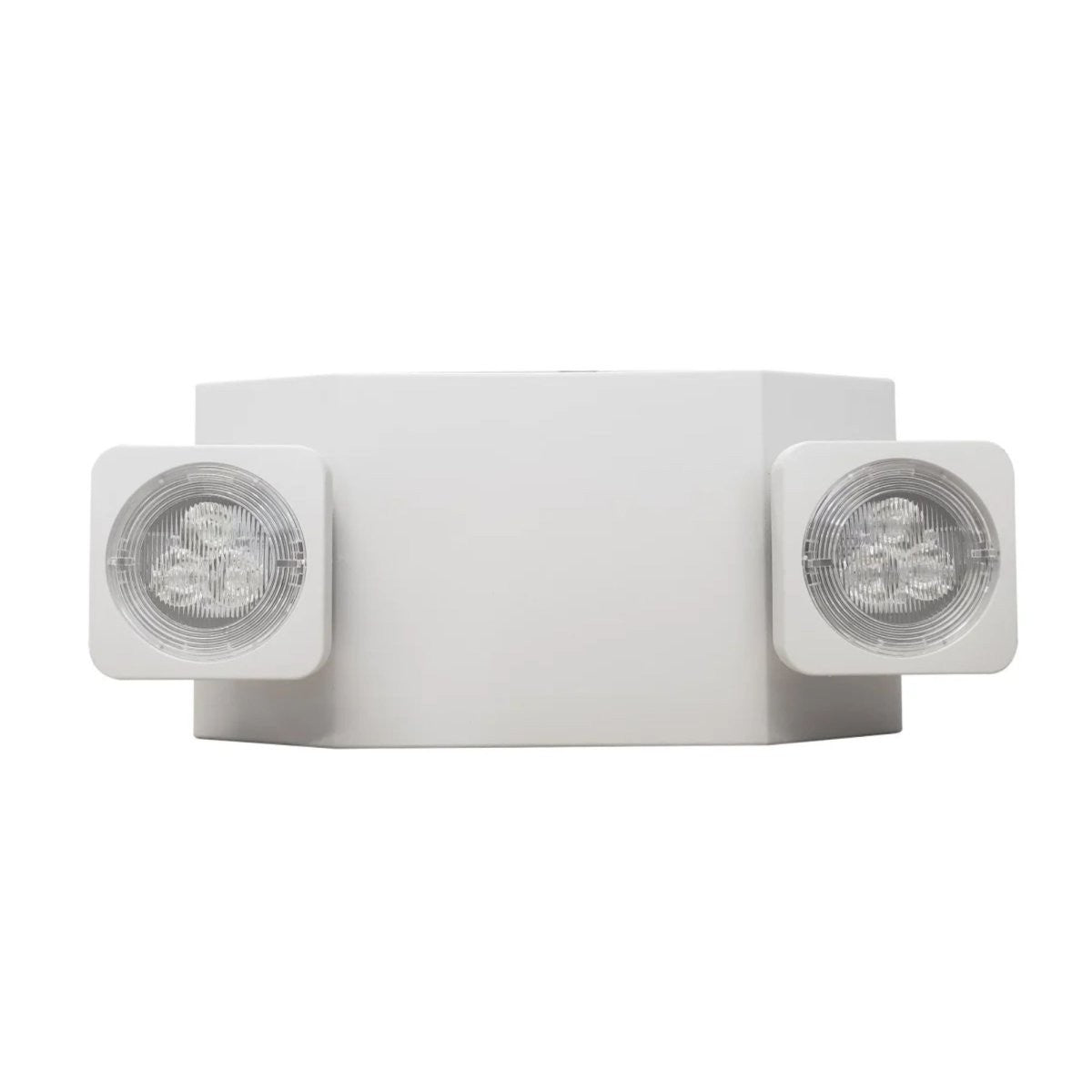

Utopia Lighting EM Emergency Light

Product Overview

The Utopia Lighting EM is a commercial LED emergency light intended for emergency egress and path-of-egress illumination. It provides a minimum 90 minutes of emergency runtime using an internal NiCd battery and is UL 924 listed.

Configurable with optional self-diagnostic testing (SDT), optional remote capacity (RC), and available finishes. Suitable for surface mounting on wall or ceiling and listed for damp locations.

Key Features

• Minimum 90-minute emergency runtime with maintenance-free NiCd battery
• Dual voltage: 120/277V with internal solid-state transfer switch
• Optional SDT self-diagnostic testing (monthly, biannual, annual)
• Optional RC remote capacity (2.5 W)
• UL 924 listed; meets NFPA 101, NEC, OSHA references in manufacturer listing; damp-location listing (0°C–50°C)
• Universal knockout pattern for surface mount; conduit knockout provided
• Five-year warranty on electronics and housing

What this unit does

The Utopia Lighting EM provides emergency illumination from its internal LED lamp heads when AC power is lost, supporting egress and path-of-egress lighting needs.

• Intended for emergency egress and path-of-egress applications in commercial occupancies.
• Adjustable LED heads provide targeted illumination; manufacturer notes up to 30 ft center-to-center spacing at a 10 ft mounting height for head performance.

Emergency runtime and battery

Equipped with a maintenance-free NiCd battery designed to supply a minimum of 90 minutes of emergency operation per UL 924 requirements.

• Battery: 3.6 V NiCd rechargeable.
• Fully automatic two-rate charger to recharge a discharged battery within 24 hours (manufacturer specification).

Electrical and controls

Includes the electrical features required for code-compliance testing and automatic emergency transfer.

• Input voltage: dual 120/277V.
• Charge-rate/power ON LED indicator and push-to-test switch provided.
• Internal solid-state transfer switch automatically connects the battery to the LED heads on AC failure.

Mounting and mechanical

Designed for surface installation with provisions for common mounting and conduit entry.

• Universal knockout pattern on back plate for surface mount.
• Suitable for wall or ceiling mounting; includes a conduit knockout.
• Reduced-profile thermoplastic housing with adjustable LED heads.

Available options and finishes

Selectable options let you match finish and functional requirements for a project.

• Finishes: Off White (EM W) and Black (B).
• SDT: Self-diagnostic option performing monthly, biannual, and annual tests.
• RC: Remote capacity option — 2.5 W remote load capability.
• BAA/ARRA compliance available as an optional configuration.

Listings and warranty

The unit carries safety listings and a manufacturer warranty appropriate for life-safety emergency fixtures.

• UL listed to UL 924 and listed for damp locations (0°C–50°C).
• Manufacturer references compliance with NFPA 101, NEC and OSHA requirements.
• Five-year warranty on electronics and housing.

Before You Order

Confirm the exact model/options required (finish, SDT, RC, BAA) and project quantity before requesting a quote.

• Use proper ordering suffixes (for example: EM-W-SDT for Off White with self-diagnostics).

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting EM Emergency Light. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
