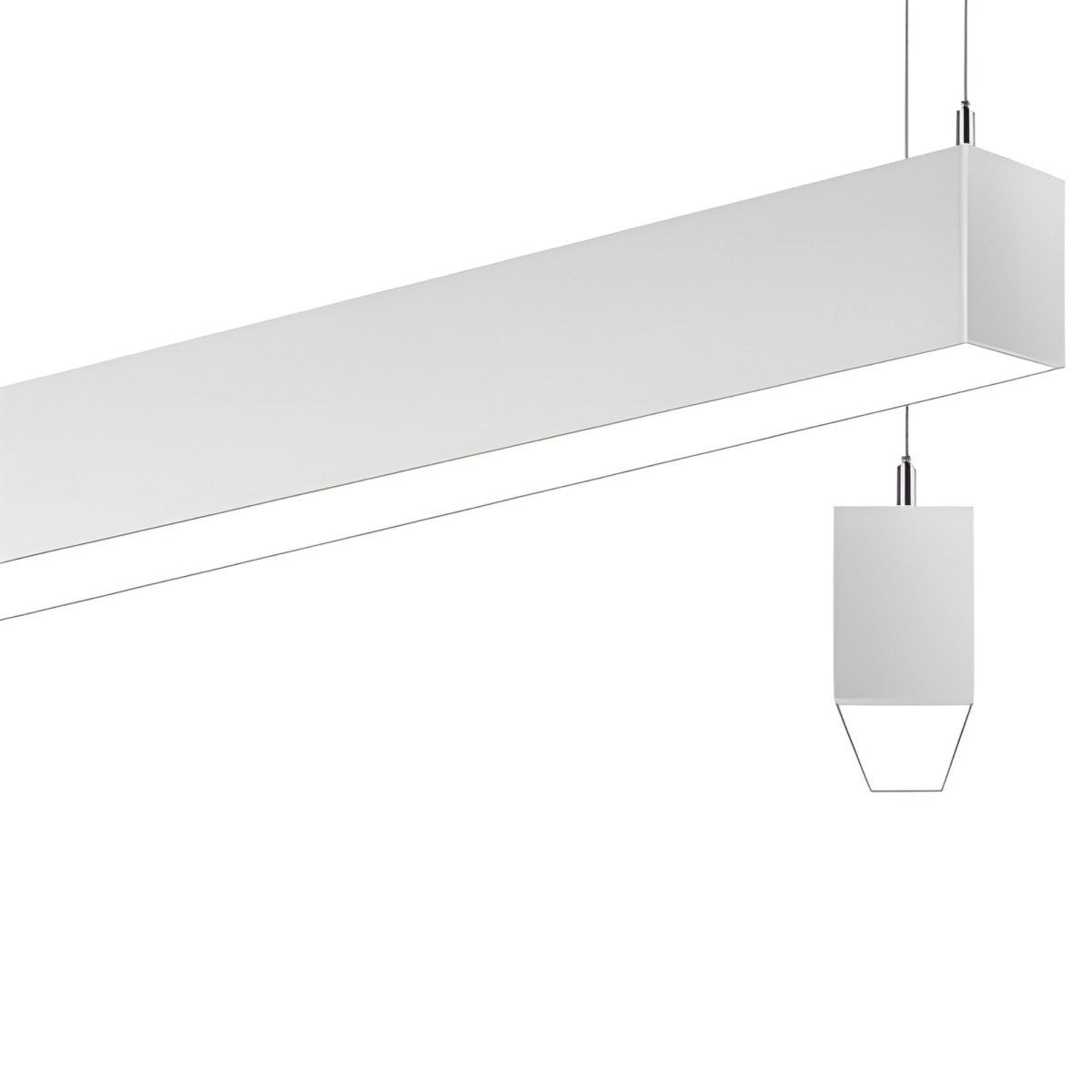

Utopia Lighting EB3-Direct/Indirect Suspended Linear Light

Product Overview

The Utopia Lighting EB3-Direct/Indirect is a commercial-grade suspended LED linear fixture for architectural interiors, offices, and commercial spaces.

This configurable fixture is offered with 5–80W power options, 115–9200 lumen output range, selectable color temperatures (3000K, 3500K, 4000K), 120–277V input, and 0–10V dimming.

Key Features

• Power range: 5–80W
• Lumen output: 115–9200 lm
• Efficacy: 115 lm/W
• Color temperatures: 3000K, 3500K, 4000K
• Input voltage: 120–277V
• Dimming: 0–10V
• Listings: UL, CUL; rated for Damp Location; ARRA

Function and intended applications

The EB3-Direct/Indirect is intended for architectural interiors and commercial environments such as offices and other indoor spaces where suspended linear lighting is appropriate.

Ordering information indicates the fixture can be specified for individual suspended mounts or continuous-row installations depending on the selected model.

• Typical use: architectural interiors and commercial spaces
• Mounting: individual suspended or continuous-row (model dependent)

Performance and light output

Select from configurations that provide between 5 and 80 watts and a lumen range from 115 to 9,200 lm. The product data lists an efficacy value of 115 lm/W.

Choose the appropriate wattage and lumen output when sizing for project lighting levels.

• Wattage range: 5–80W
• Lumen range: 115–9,200 lm
• Efficacy: 115 lm/W
• Available CCTs: 3000K, 3500K, 4000K

Configurations and optical distributions

Ordering options describe multiple direct/indirect distributions, field-selectable choices, and a variety of nominal lengths. Confirm the exact model code to match distribution and length requirements.

Examples in the ordering information show selectable up/down splits and continuous-row reflector options; verify selections on the chosen model.

• Field-selectable CCT option noted for some configurations (30/35/40K)
• Direct/indirect distribution splits are listed in ordering options (examples include 100/0, 90/10, 70/30, 50/50, 30/70, 10/90, 0/100)
• Nominal lengths referenced in ordering options include 2', 3', 4', and 8'

Electrical requirements and controls

The fixture is specified for 120–277V input and supports 0–10V dimming, per the product data. Confirm compatibility of control wiring and dimmer hardware with project systems.

For project specification, verify the selected variant's electrical details and driver options.

• Voltage: 120–277V
• Dimming: 0–10V

Listings and environmental suitability

Product data lists UL and CUL listings, a Damp Location rating, and ARRA compliance. Use these ratings when assessing suitability for interior damp or covered environments.

Do not assume outdoor exposed or wet-location suitability unless documented for the specific model.

• Listings: UL, CUL
• Location rating: Damp Location
• Compliance: ARRA

Before You Order

Confirm the exact model variant, nominal length, optical distribution, and CCT before ordering, as these options affect lumen output and distribution.

Request a quote or contact Lumera Electric for project pricing, submittals, and lead-time information.

• Verify nominal length and mounting type for your project
• Specify desired direct/indirect distribution split and CCT option
• Confirm whether field-selectable CCT is required for the selected model

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting EB3-Direct/Indirect Suspended Linear Light. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
