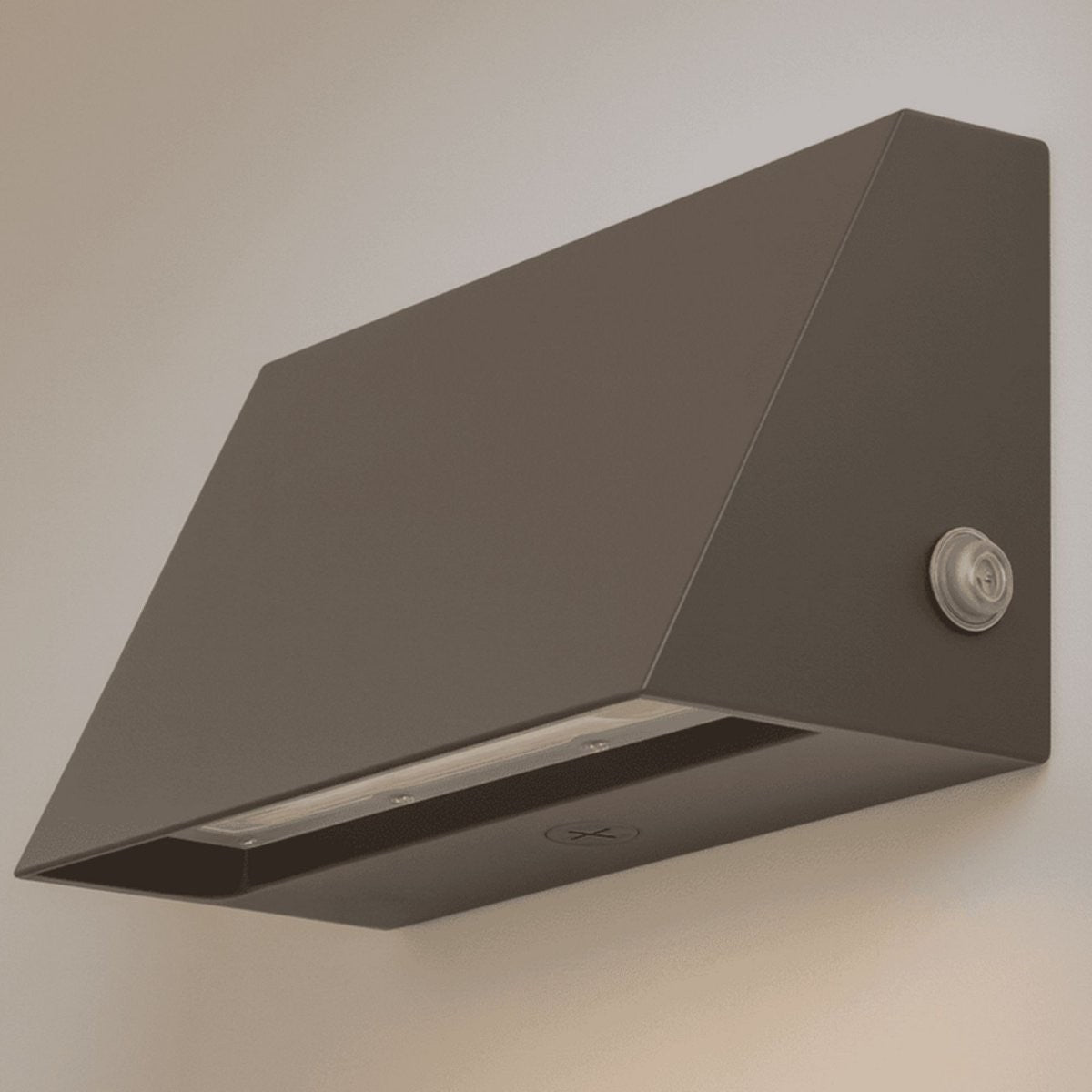

Utopia Lighting DWP2 5G LED Wall Pack

Product Overview

The Utopia Lighting DWP2-5G LED Wall Pack is a configurable commercial exterior fixture intended for building exteriors, entryways, and perimeter security lighting.

The product family covers a wide range of outputs: 4–165 watts and 125–25,339 lumens at a nominal 5000K, with 0–10V dimming and a standard 120–277V input.

Key Features

• Power range: 4–165W
• Lumen range: 125–25,339 lm
• Efficacy: 140 lm/W (specified value)
• Nominal color temperature: 5000K (ordering options list 3000K and 4000K in some configurations)
• Standard voltage: 120–277V; higher-voltage option appears in ordering configurations
• 0–10V dimming
• Listings: UL, CUL, DLC; rated for wet locations
• Outdoor-rated commercial construction

Function and intended use

The DWP2-5G is intended for commercial exterior lighting applications such as building exteriors, entryways, and perimeter security, per the product description.

• Common applications listed: building exteriors, entryways, perimeter security lighting
• Built for outdoor commercial installation

Light output and performance

The DWP2-5G family offers a broad range of lumen outputs and wattages to suit different project needs. The published family ranges describe the available steps across model configurations.

• Wattage range: 4–165W
• Lumen range: 125–25,339 lm
• Specified efficacy: 140 lm/W
• Nominal color temperature: 5000K; ordering configurations include options for 3000K and 4000K

Electrical requirements and controls

Standard input voltage is 120–277V with 0–10V dimming control. The ordering options list a higher-voltage (277–480V) variant as available in some configurations.

• Standard voltage: 120–277V (UNV)
• Higher-voltage option shown in ordering configurations: 277–480V (HV)
• Dimming: 0–10V

Listings and environmental suitability

The product listing information indicates common commercial listings and wet-location suitability.

• Listings shown: UL, CUL, DLC
• Rated for wet locations

Configuration and ordering notes

The DWP2-5G is configurable by wattage/lumen step, color temperature, voltage, and finish. Select the exact model variant required and request a quote for pricing and lead time.

• Ordering examples in the product data include model groupings (e.g., 3SL, 3SM, 3SH, 3SG) with different wattage steps and voltage options
• Color temperature options referenced in ordering: 3000K, 4000K, 5000K
• Finish options referenced: Dark Bronze, Black, White, Gray

Before You Order

Confirm the exact model variant (wattage/lumen step, voltage, color temperature, and finish) before requesting a quote.

• Verify required wattage/lumen step, CCT, voltage, and finish for your project
• Request a quote from Lumera Electric for pricing and lead time
