Utopia Lighting DW-2G Surface DW-2G LED Enclosed And Gasket Light

Product Overview

The Utopia Lighting DW-2G Surface is an enclosed and gasket LED commercial fixture identified for commercial and architectural lighting projects. Ordering information lists wattage, color temperature, CRI and voltage options.

The product data lists a wattage range of 6–72W and a lumen output range of 2,548–10,196 lm. These are product-range values, not specifications for one confirmed configuration.

Key Features

• LED enclosed and gasket commercial fixture
• Listed wattage range: 6–72W
• Listed lumen output range: 2,548–10,196 lm
• Color temperature options: 2700K, 3000K, 3500K, 4000K and 5000K
• Ordering information lists 80+ and 90+ CRI options
• Listed dimming: 0–10V
• Listed ratings and designations: UL, cUL, IP65, IP66, wet location and ARRA

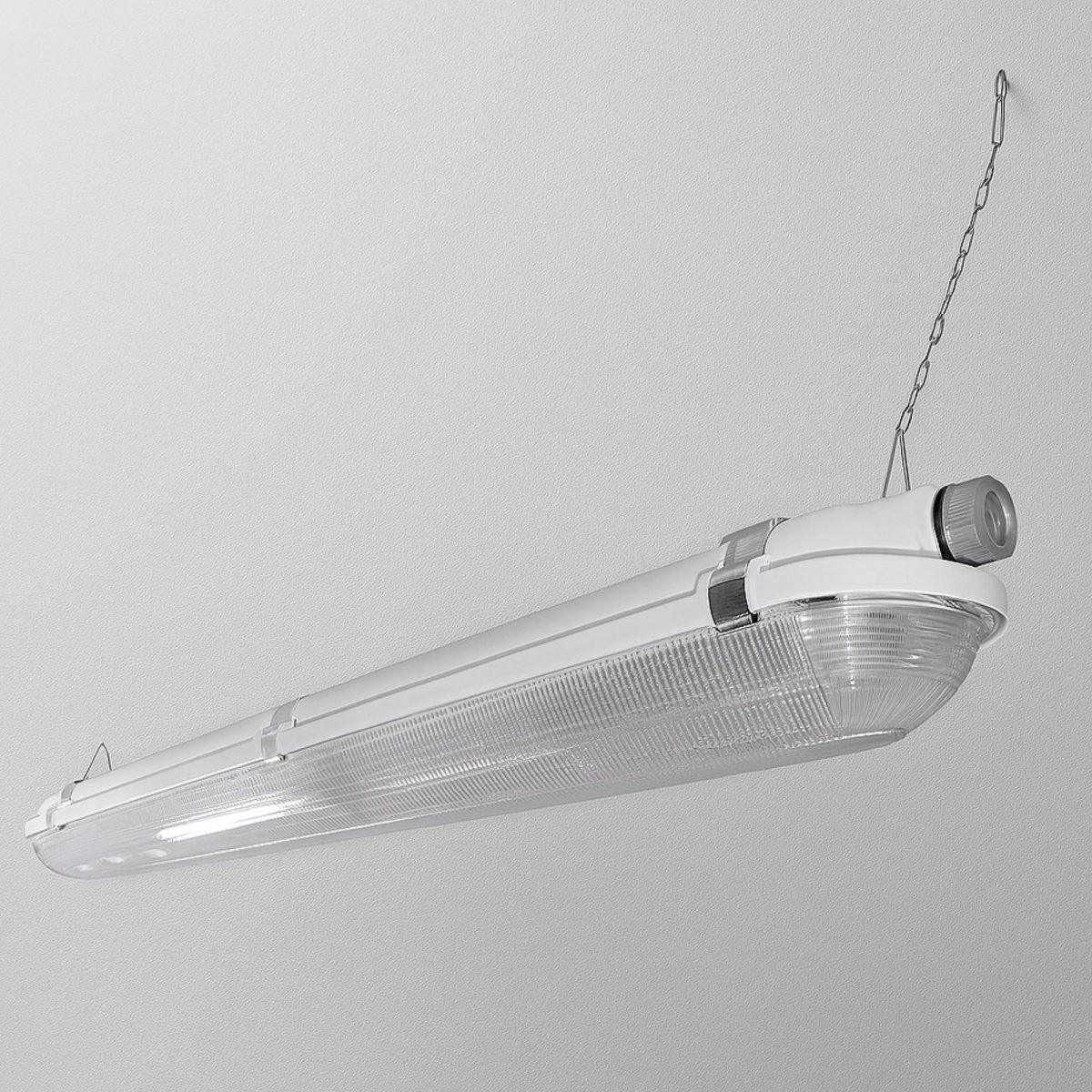

DW-2G Surface enclosed and gasket LED fixture

The Utopia Lighting DW-2G Surface is an enclosed and gasket LED commercial fixture identified for commercial and architectural lighting projects. The product data lists multiple ordering choices and does not identify one selected configuration.

Wattage, color temperature, CRI and voltage options

The ordering information lists the following options:

• LED wattages of 18W, 20W, 27W and 36W; custom wattage or lumen requests are also noted
• Color temperatures of 2700K, 3000K, 3500K, 4000K and 5000K
• CRI options of 80+ and 90+
• Voltage options of 120V, 277V, 347V and 480V

Output, dimming and listed ratings

The product data lists a range of 2,548–10,196 lm and 6–72W. The ordering notes also state a maximum of 5,097 lm or 36W per 2-foot section.

The listed dimming type is 0–10V. The product data also lists UL, cUL, IP65, IP66, wet location and ARRA.

Before You Order

Confirm the desired wattage or lumen request, color temperature, CRI and voltage when requesting a quote.
