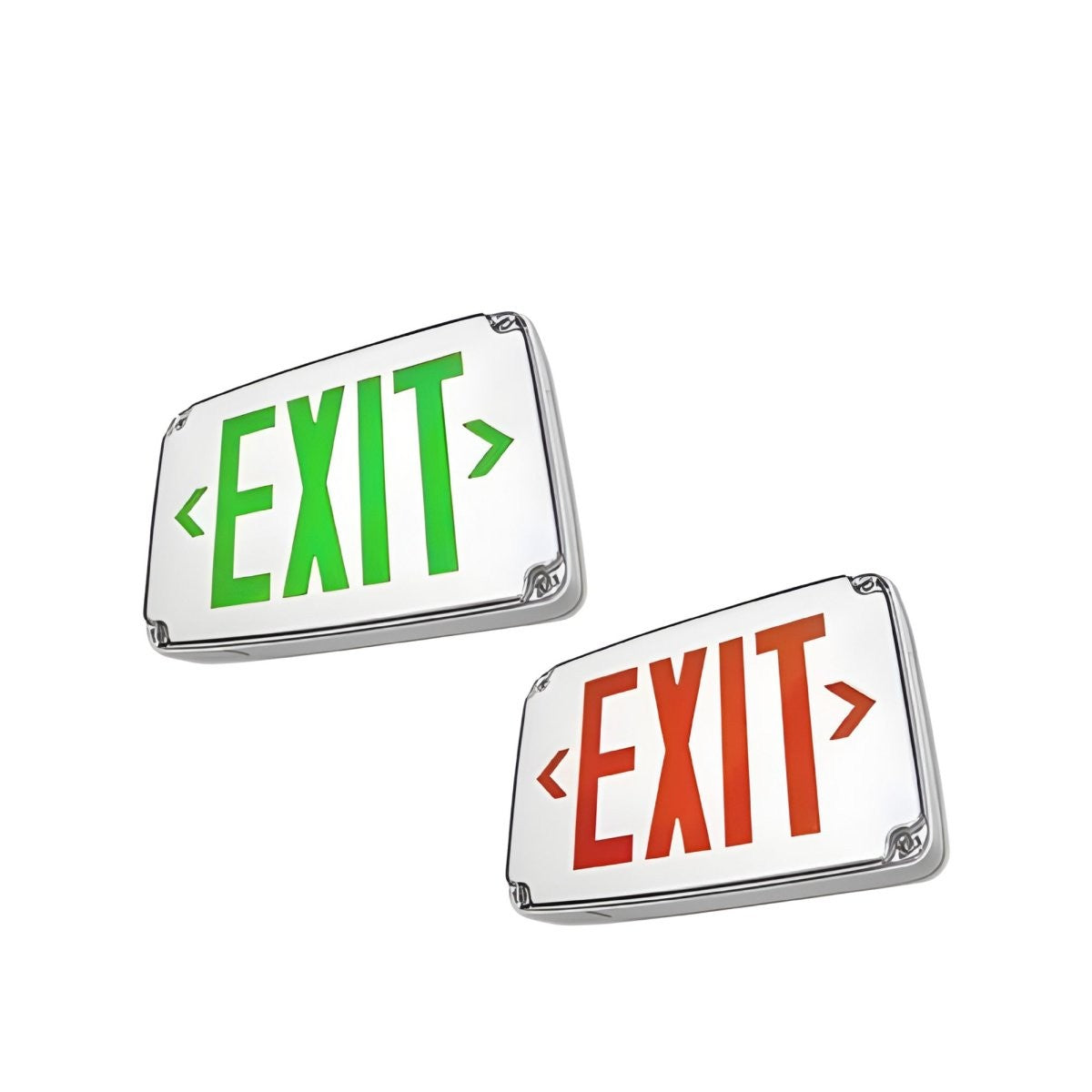

Utopia Lighting CWEX Wet Location LED Exit Sign with Battery

Product Overview

The Utopia Lighting CWEX is a wet-location LED exit sign. Battery-backup and AC-only configurations are listed; confirm the required configuration when ordering.

The CWEX is UL Listed for wet locations and meets UL 924 requirements. Options include face count, letter color, housing color and accessories.

Key Features

• Battery-backup configuration provides a minimum of 90 minutes of emergency illumination.
• UL Listed for wet locations; meets UL 924 requirements.
• Universal wall, ceiling or pendant mounting.
• 120V/277V dual-voltage operation.
• Red or green LED letters with removable directional chevron knockouts.

Battery Backup and Emergency Operation

The battery-backup configuration provides a minimum of 90 minutes of emergency illumination. It uses a rechargeable, maintenance-free Ni-Cad battery and an automatic transfer switch.

A push-to-test switch and power-on indicator are specified. Self-diagnostics are an optional configuration, not a feature to assume is included with every CWEX.

Wet-Location Rating and Housing

The CWEX is UL Listed for wet locations and rated for temperatures from -4°F (-20°C) to 122°F (50°C). Its fully gasketed enclosure is made of flame-retardant, UV-stabilized polycarbonate and has a high-impact-resistant clear polycarbonate lens.

Housing choices include gray, white and black. Available face and housing combinations depend on the selected configuration.

Mounting and Electrical Options

The CWEX supports wall, ceiling or pendant mounting. Back-plate knockouts allow wall mounting directly to a standard J-box; a canopy and mounting hardware are provided.

Dual-voltage 120V/277V operation is standard. The product family lists single- or double-face and red- or green-letter options; confirm the required configuration when ordering.

• The dual-circuit option is available only on AC-only units. A dual-circuit unit must not be connected to two live supplies at the same time; the secondary supply should come on only when the primary supply is out.
• Listed options include self-diagnostics, tamper-proof screws, a steel wire guard and a polycarbonate vandal-shield guard.

Before You Order

Confirm the required face count, letter color, housing color and options; battery-backup and AC-only configurations are listed.

• Dual-circuit units must not be connected to two live supplies at the same time.
