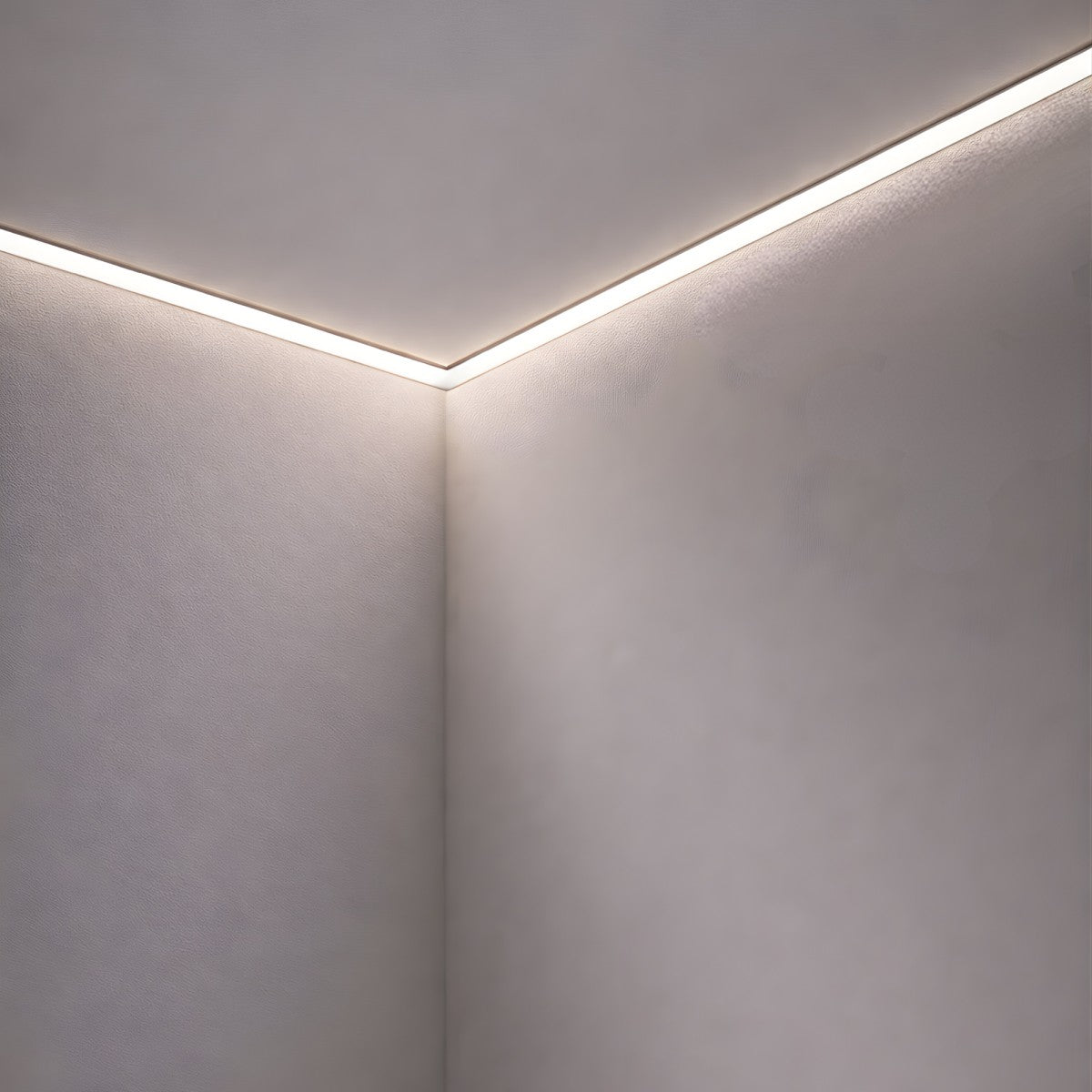

Utopia Lighting Cube 1 Perimeter Linear Light

Product Overview

The Utopia Lighting Cube 1 Perimeter Linear Light is a configurable commercial LED linear fixture for architectural interiors, offices, and modern commercial spaces.

Available in wattages from 2 to 95W with outputs from 110 to 8,712 lumens and selectable color temperatures from 2700K to 5000K. Efficacy is listed as 110 lm/W.

Key Features

• Wattage range: 2–95W
• Lumen range: 110–8,712 lm
• Selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
• Efficacy: 110 lm/W
• CRI: 80+
• Input voltage: 120–277V
• Dimming: 0–10V
• Listings: UL, CUL; Damp Location; ARRA

What this fixture is for

The Cube 1 Perimeter Linear Light is intended for commercial and architectural interior use such as office interiors and contemporary commercial spaces. It is available in configurations for individual mounted sections or continuous row installations.

• Typical applications: architectural interiors, offices, modern commercial environments
• Available in individual section (per-section) and continuous row mounting configurations

Light output and efficiency

The fixture is offered in a broad performance range to accommodate different design needs. Refer to project-specific ordering choices to select appropriate wattage and lumen output.

• Wattage: 2–95W
• Lumen output: 110–8,712 lm
• Efficacy: 110 lm/W
• CRI: 80+ (ordering notes include a 90+ CRI option in the product's ordering information)

Dimming and electrical requirements

The fixture accepts standard commercial input voltages and is compatible with 0–10V dimming as listed.

• Input voltage: 120–277V
• Dimming: 0–10V

Ordering configurations and mounting options

This product is configurable by nominal length, lumen/watt step and distribution type. Ordering is done per section or as continuous runs; contact Lumera Electric to specify exact combinations and request a quote.

• Nominal lengths referenced in ordering notes: 2', 3', 4', 5', 6' (per-section and continuous options referenced in product ordering information)
• Example per-4ft section lumen/watt steps referenced in ordering notes: D9L 9W (≈272 lm/ft); D18L 18W (≈544 lm/ft); D27L 27W (≈816 lm/ft); D36L 36W (≈1,089 lm/ft)
• Ordering notes reference distribution options including standard (flushed) and asymmetrical (ASY)

Listings and rated environments

The product listing information includes common commercial certifications and a damp location rating; verify required documentation for your project when ordering.

• Listings shown: UL, CUL
• Rated for Damp Location
• ARRA designation included in product information

Before You Order

This product is configurable. Confirm model designation, nominal lengths, lumen/watt step, color temperature and CRI when requesting a quote.

• Specify individual mount or continuous row mounting and nominal lengths.
• Confirm desired color temperature (2700K, 3000K, 3500K, 4000K, 5000K) and CRI option.
• Contact Lumera Electric for project pricing, lead times and to validate site requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting Cube 1 Perimeter Linear Light. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
