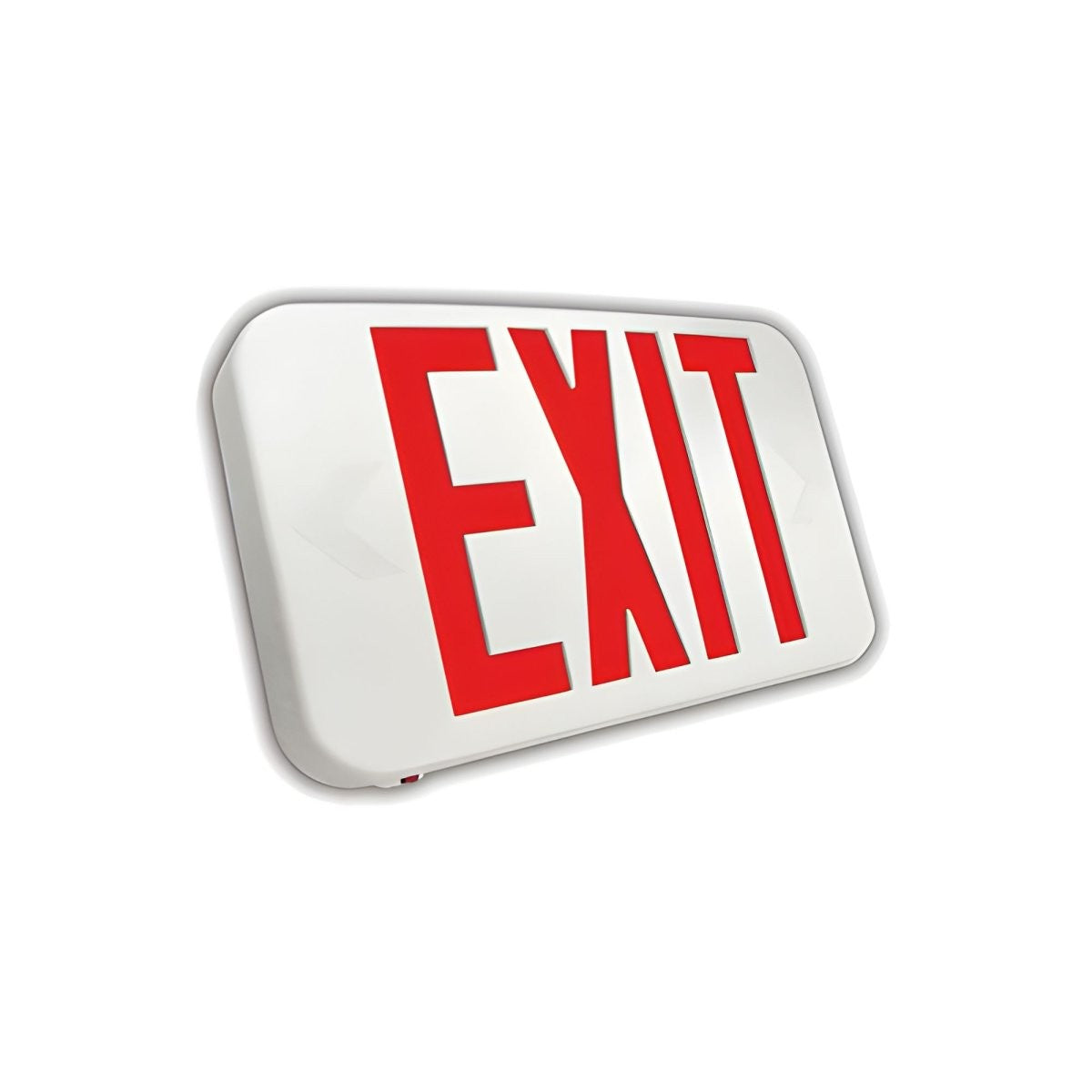

Utopia Lighting CEX-2G LED Emergency Exit Sign

Product Overview

The Utopia Lighting CEX-2G is a combined LED exit sign and emergency egress light for commercial life-safety applications. It provides a 90-minute emergency runtime on a NiCd battery and is listed to UL 924.

The unit includes self-test/self-diagnostic capability, operates on 120/277V, and is offered with multiple face, housing, and option configurations for project requirements.

Key Features

• Emergency runtime: 90 minutes (NiCd battery)
• Self-Test / Self-Diagnostic capability
• Listed to UL 924; product data also lists NFPA and damp location
• Input voltage: 120/277V
• Power consumption: 0–7W
• Configurable options for face legend, housing color, and certain voltages/circuits

What this unit does

The CEX-2G combines an illuminated exit legend with integral emergency lighting to provide visible exit identification and emergency illumination in one assembly.

• Integrated exit sign and emergency egress light
• Suitable for commercial egress paths and other code-required locations

Emergency runtime & battery

The CEX-2G includes a Nickel-Cadmium (NiCd) battery sized to provide a 90-minute emergency runtime as described in the product data.

• Battery: NiCd
• Emergency runtime: 90 minutes

Self-test and diagnostics

The unit supports self-test / self-diagnostic functionality to assist with routine maintenance and monitoring of battery and circuitry.

• Built-in self-test / self-diagnostic feature (SDT option referenced in product data)

Electrical and power requirements

The CEX-2G is designed to operate on standard commercial input voltages and has a low power draw as listed in the product data.

• Input voltage: 120/277V
• Power consumption: 0–7W

Ordering and configuration

The model is configurable for face legend color, housing/face color, operation mode, and select voltage or circuit options. Contact Lumera Electric for project quoting and to confirm the exact configuration needed.

• Face legend: R (Red), G (Green), RG (Red/Green)
• Housing/face color combinations include White (WH), Black (BK), and Clear
• Operation variants shown in product data: AC-only, Battery backup, Dual-circuit options
• Optional features listed in product data: SDT (Self Diagnostics), SPV (208/220/240V)

Before You Order

Verify the required model configuration (face legend, housing/face color, operation mode, and any optional voltages or features) before ordering.

• Confirm face legend (R, G, or RG) and single- or double-face orientation
• Specify housing/face color (WH, BK, Clear) and operation (AC-only, battery backup, dual-circuit)
• If needed, confirm SDT or SPV options

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting CEX-2G LED Emergency Exit Sign. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
