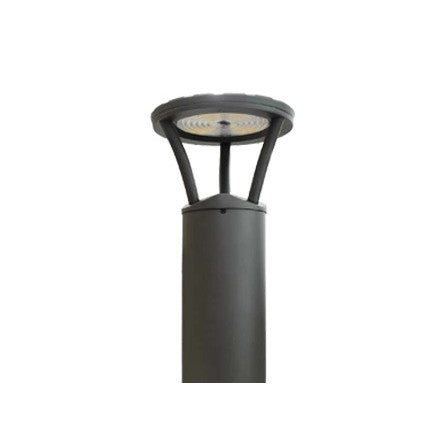

Utopia Lighting BLD6 LED Bollard

Product Overview

The Utopia Lighting BLD6 is a commercial-grade LED bollard for pathways, walkways, landscapes, and architectural perimeter lighting. Wattage and color temperature are field-selectable to suit a range of exterior applications.

Rated outputs span approximately 1,201 to 3,786 lumens depending on wattage and CCT. The fixture is wet-location listed and carries UL/cUL and DLC listings (note: not all configurations may be DLC-qualified).

Key Features

• Field-selectable wattage (10W, 20W, 30W) and color temperature (3000K, 4000K, 5000K).
• Lumen range approximately 1,201–3,786 lm depending on setting and CCT.
• Input voltage per manufacturer: 100–277 Vac; some catalog references list 120–277V—verify for your specification.
• Durable extruded aluminum tube, aluminum reflector, UV-stable powder coat finish, and clear UV-resistant polycarbonate lens.
• 1–10V dimming standard; 4 kV surge protection standard (optional 10 kV/10 kA upgrade available).
• Operating temperature: −40°F to 104°F (−40°C to 40°C).
• Listings: UL/cUL, RoHS compliant, DLC listed (verify specific configuration), wet-location listed. 5-year limited warranty.

Intended use and construction

The BLD6 is built for exterior commercial installations such as pathways, walkways, landscapes, and building perimeter areas. Its extruded aluminum tube and aluminum reflector aim to provide durability and reduced glare while protecting internal wiring and components.

• Typical applications: pathways, walkways, landscape accents, and architectural perimeter lighting.
• Construction features include an extruded aluminum tube, aluminum reflector, and clear UV-resistant polycarbonate lens. Torx security screws secure the LED compartment.

Light output and selectable options

Wattage and color temperature can be selected in the field to match project needs. Lumens and efficacy vary by selected wattage and CCT.

• Wattage settings: 10W, 20W, 30W (field-selectable).
• Manufacturer example outputs: 10W ≈ 1,201–1,262 lm; 30W ≈ 3,604–3,786 lm (values vary by CCT).
• Color temperatures: 3000K, 4000K, 5000K. CRI > 80.

Electrical, controls, and thermal

Electrical features support common commercial control and protection requirements; confirm exact input voltage for your specification.

• Input voltage: manufacturer lists 100–277 Vac; some catalog references show 120–277V. Confirm the required voltage for your project.
• Dimming: 1–10V standard. Quick disconnect near the terminal block provided for driver connection.
• Surge protection: 4 kV standard; optional 10 kV/10 kA SP10 upgrade available.
• Operating temperature: −40°F (−40°C) to 104°F (40°C).
• Driver is mounted under the LED compartment for serviceability.

Mounting, finishes, and dimensions

The BLD6 is ground-mounted and shipped with a mounting template and anchor bolts. Confirm the exact model height and diameter required for your installation.

• Mounting: ground mount; template and anchor bolts provided.
• Standard finish: Dark Bronze (RAL 8019). Optional finishes: Black (RAL 9011), White (RAL 9016), Gray (RAL 7045), or custom color (additional charges apply for non-standard finishes).
• Representative heights shown in manufacturer materials: 31.9" (809 mm) and 39.8" (1011 mm). Refer to factory drawings for precise dimensions for the selected configuration.

Listings, options, and warranty

The BLD6 carries common listings and factory options to support specification needs; verify optional compliance and DLC qualification for the exact configuration.

• Listings: UL/cUL listed, RoHS compliant, wet-location listed, DLC listed (not all versions may be DLC-qualified—check the DesignLights Consortium QPL).
• Optional/upgrade items: BAA compliance (available), SP10 10 kV/10 kA surge protection, CASAMBI-ready options (contact factory).
• Warranty: 5-year limited warranty.

Before You Order

Confirm the exact model configuration (wattage, CCT, voltage, distribution, finish and any options) before ordering.

• Verify input voltage requirement (manufacturer lists 100–277 Vac; some materials reference 120–277V).
• Check the DesignLights Consortium Qualified Products List to confirm DLC qualification for the specific BLD6 configuration.
• Non-standard finishes and custom colors may incur additional charges.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting BLD6 LED Bollard. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
