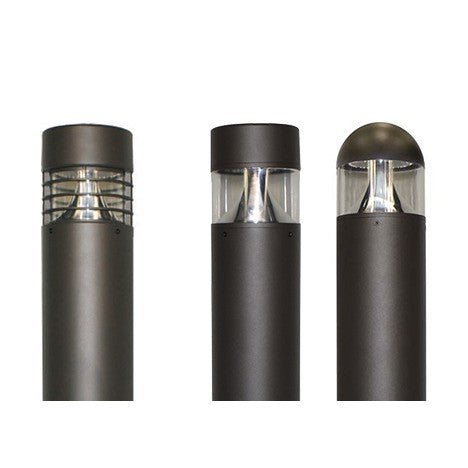

Utopia Lighting BLD5 LED Bollard

Product Overview

The Utopia Lighting BLD5 is a configurable LED bollard for pathways, walkways, landscapes and architectural perimeter lighting.

Options include 10W, 20W or 30W; 3000K, 4000K or 5000K; and 120–277V with 0–10V dimming. The listed light output range is 126–4091 lm and efficacy is 126 lm/W.

Key Features

• Selectable 10W, 20W or 30W wattage and 3000K, 4000K or 5000K color temperature
• Distribution options include Type V, Type III, 90°, 120° and 180°
• 120–277V voltage and 0–10V dimming
• UL, CUL, DLC and wet-location listings

Where the BLD5 LED Bollard Is Used

The Utopia Lighting BLD5 is identified for pathway, walkway, landscape and architectural perimeter lighting. It is an outdoor-rated commercial LED bollard.

Wattage, Light Output and Color Temperature

The BLD5 is available with selectable 10W, 20W or 30W wattage and 3000K, 4000K or 5000K color temperature. Its listed light output range is 126–4091 lm, with an efficacy of 126 lm/W.

Distribution and Finish Options

Ordering choices include five distribution options and several finish options.

• Distribution: Type V, Type III, 90°, 120° or 180°
• Finishes: Dark Bronze, Black, White, Gray or Custom Color
• Dark Bronze is the standard finish. Black, White and Gray are marked non-standard; Custom Color has an additional charge and setup fee.

Voltage, Dimming and Listings

The BLD5 is specified for 120–277V and 0–10V dimming. Listings include UL, CUL, DLC and wet location.

Before You Order

Confirm the required wattage, color temperature, distribution and finish when requesting a quote.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Utopia Lighting BLD5 LED Bollard. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
