Premium Lighting EDI-PAN24-20T72W-xxK G1 Backlit Panel G1 2x4 72W 10000lm Highbay & Lowbay, Sensor Base

Product Overview

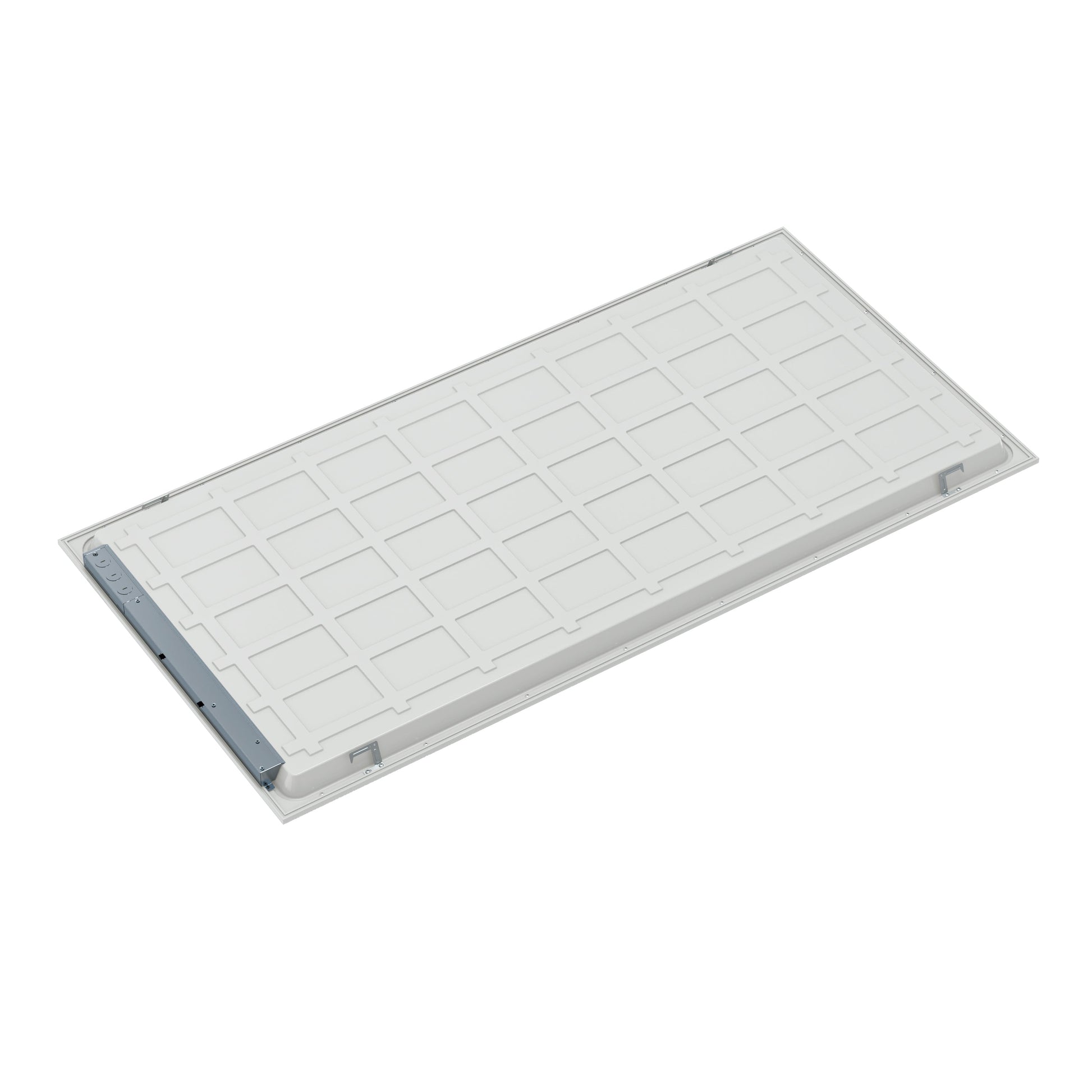

The Premium Lighting EDI-PAN24-20T72W-xxK G1 is a 2x4 LED backlit panel with selectable wattage and color temperature. Its onboard switches provide five power settings from 20W to 72W and six CCT settings from 3000K to 6500K.

The panel produces up to 10,000 lumens and operates on 120–277V, 50/60 Hz input. It is intended for lay-in grid ceilings and includes a control-ready sensor base.

Key Features

• Five selectable wattages: 20W, 30W, 40W, 50W and 72W
• Six selectable CCTs: 3000K, 3500K, 4000K, 5000K, 5700K and 6500K
• Maximum output of 10,000 lumens
• Control-ready sensor base
• UL Listed and DLC Premium

Selectable Wattage and Color Temperature

This Premium Lighting panel offers five selectable wattages and six selectable color temperatures, set using onboard switches at installation. Its maximum listed output is 10,000 lumens at up to 72W.

• Wattage settings: 20W, 30W, 40W, 50W and 72W
• CCT settings: 3000K, 3500K, 4000K, 5000K, 5700K and 6500K

Where the 2x4 Panel Can Be Used

Listed applications for the G1 backlit panel include open offices, conference rooms, classrooms, libraries, medical suites and exam rooms.

Ceiling Mounting and Sensor Base

The panel is described for lay-in grid ceilings and has a control-ready sensor base. A surface-mount frame kit is required for hard-ceiling installation.

• Confirm the grid size and ceiling type before ordering.

Listing and DLC Classification

The EDI-PAN24-20T72W-xxK G1 is UL Listed and classified as DLC Premium. Its listed DLC Product ID is S-7PXSRZ.

Before You Order

Confirm the ceiling type and grid size for the intended installation. A surface-mount frame kit is required on hard ceilings.
