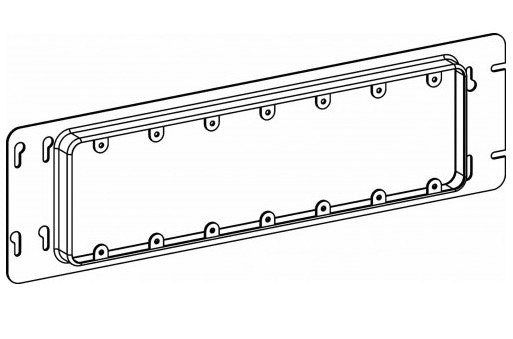

Orbit 7G Steel Switch Ring SR7

Product Overview

The Orbit 7G Steel Switch Ring (model SR7) is a steel mounting ring used with electrical boxes to support device and cover installations during rough‑in, replacement, or maintenance work.

This SKU is intended for contractors, electricians, and facility maintenance teams who require a dedicated ring that matches project drawings and box dimensions; confirm compatibility with the target box, cover, and devices before ordering.

Key Features

• Manufacturer: Orbit — catalog/model SR7
• Product type: 7G steel switch ring
• Material: Steel
• Typical uses: junction and device box installations, rough‑in, commercial electrical rooms, replacement and maintenance work

Function and typical use

The Orbit SR7 is a steel switch ring designed to support mounting covers, devices, or enclosures to an electrical box. It is used during rough‑in and finish phases to position and secure switches or other devices in a box opening.

• Supports device mounting and cover alignment in standard box installations
• Intended for contractor stock, replacement, and maintenance tasks
• Commonly used in commercial electrical rooms and general junction box work

Compatibility and installation notes

Use the SR7 only after confirming the ring’s dimensions, box depth, knockout pattern, device fit, cover compatibility, and local code requirements. The ring must match the intended box and cover to ensure correct device mounting and box fill limits.

• Verify box size and depth before installation
• Confirm knockout pattern and cover fit for the target enclosure
• Check device compatibility and box fill for the specific application
• Match the catalog number (SR7) to project drawings or approved submittals before ordering

Technical specifications

Model SR7 is identified by Orbit as a 7G steel switch ring for use with boxes, enclosures, and covers. The following identifiers are provided for procurement and inventory control.

• Brand: Orbit
• Model / SKU: SR7
• Manufacturer Part Number: SR7
• Product type: Ring (7G steel switch ring)
• Product family: Boxes / Enclosures / Covers
• Catalog page reference: A27
• Material: Steel

Before You Order

Confirm the model number (SR7) and that the ring’s dimensions and compatibility match the job requirements before ordering.

• Verify box size, depth, and knockout pattern
• Confirm cover and device fit and box fill
• Match SR7 to project drawings or approved submittals

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 7G Steel Switch Ring SR7. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
