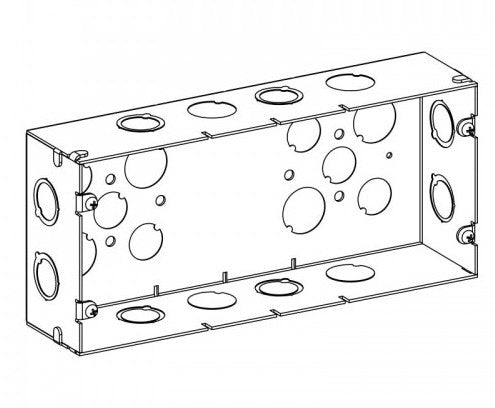

Orbit 4G Deep Switch Box with 3/4 in & 1 in K.O. SDBL4

Product Overview

The Orbit SDBL4 is a 4-gang deep switch electrical box intended for junction and device mounting where deeper capacity and 3/4 in and 1 in knockouts are required.

Use this SKU (SDBL4) for electrical rough-in, repair, contractor stock, and facility maintenance after confirming box dimensions, knockout pattern, device fit, and local code requirements.

Key Features

• 4-gang (4G) deep switch box configuration
• Includes 3/4 in and 1 in knockouts
• Manufacturer catalog identifier: SDBL4 (Orbit)
• Suitable for junctions, device mounting, and rough-in layouts

Function and primary use

The Orbit SDBL4 is designed as a 4-gang deep switch box that provides increased depth for device mounting and conductor splicing. It supports installation of switches, devices, and junctions where a deeper box is needed to meet box fill or device clearance requirements.

• Intended for junction and device box installations
• Supports device mounting and enclosure/cover installations when used with compatible covers and devices

Typical applications

This box is suitable for electrical rough-in, commercial electrical rooms, replacement projects, facility maintenance, and contractor stock where a 4-gang deep configuration with 3/4 in and 1 in knockouts is specified.

• Rough-in and new construction
• Replacement and maintenance
• Contractor stocking for varied device layouts

Compatibility and installation considerations

Before ordering or installing the SDBL4, confirm physical dimensions, knockout pattern, cover compatibility, device fit, required box fill, mounting method, and applicable local electrical codes. Match the catalog number SDBL4 with project drawings or approved submittals to ensure correct selection.

• Verify box dimensions and depth against device/back-box requirements
• Confirm 3/4 in and 1 in knockouts meet conduit/connector needs
• Check cover and device compatibility for the 4-gang layout
• Ensure box fill calculations meet local code

Before You Order

Confirm the model number and quantity required before ordering. Verify that the SDBL4's depth, knockout layout, and cover/device compatibility match your project drawings and local code requirements.

• Confirm box size, depth, and knockout pattern for the intended devices
• Verify cover compatibility and device mounting clearance
• Perform box fill calculations per applicable code before installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4G Deep Switch Box with 3/4 in & 1 in K.O. SDBL4. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
