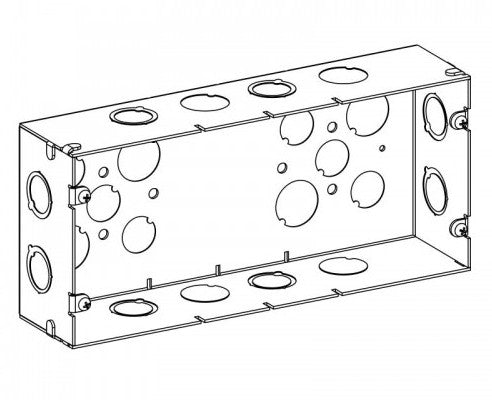

Orbit 4-Gang 2-1/2 in Deep Switch Box SDB4

Product Overview

The Orbit SDB4 is a 4-gang electrical switch box with a 2-1/2 in depth intended for junctions, device mounting, enclosure and rough-in layouts.

Catalog identifier SDB4 is the manufacturer SKU for purchasing, receiving, and inventory control. Confirm knockouts, cover compatibility, device fit and box fill before installation.

Key Features

• 4-gang switch box configuration
• 2-1/2 in depth
• Orbit catalog identifier: SDB4
• Designed for junctions, device mounting and electrical rough-in work
• Suitable for contractor stock, replacement, and facility maintenance projects

Primary function

The Orbit SDB4 serves as a 4-gang electrical switch box used to contain wire splices, mount multiple switches or devices, and provide an enclosure for rough-in and final electrical work.

• Supports device mounting and junctions for up to four gangs
• Used where a multi-device mounting location and additional wiring capacity are required

Dimensions and depth

This SKU is specified with a 2-1/2 in depth. Use the depth value when verifying box fill, device protrusion limits, and cover compatibility.

• Depth: 2-1/2 in

Compatibility and installation notes

Confirm all physical and code-related requirements before installation. Match the SDB4 catalog number to project drawings or approved submittals to ensure correct fit.

• Verify knockout pattern and quantity for conduit or cable entries
• Confirm cover and device plate compatibility for 4-gang configuration
• Calculate box fill using conductor counts and devices to meet local code
• Confirm mounting method and any required fasteners

Typical applications

The SDB4 is suitable for a range of commercial and maintenance uses where a 4-gang enclosure with 2-1/2 in depth is required.

• Electrical rough-in work
• Junction and device box installations
• Commercial electrical rooms
• Replacement projects and facility maintenance
• Contractor stock for jobsite use

Before You Order

Confirm the model number and quantity required before ordering. Verify that the SDB4 dimensions, knockout pattern, cover and device compatibility, and box fill meet your project and local code requirements.

• Match catalog number SDB4 to project drawings or approved submittals
• Confirm knockouts and cover/plate fit for your devices
• Calculate required box fill for conductors and devices
• Check mounting method and any supplementary hardware needed

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4-Gang 2-1/2 in Deep Switch Box SDB4. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
