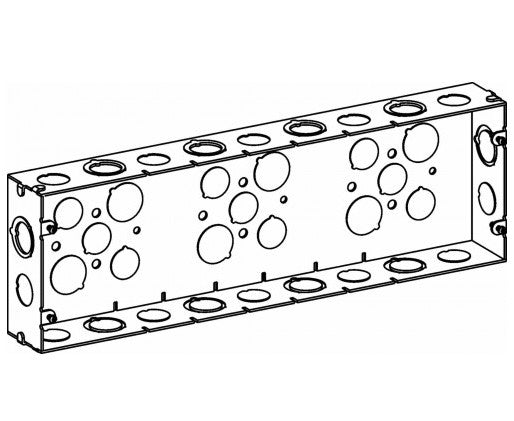

Orbit 7-Gang Welded Switch Box SB7

Product Overview

The Orbit 7-Gang Welded Switch Box (model SB7) is a welded electrical box for multi-gang junctions and device mounting.

Use this SKU where a 7-gang welded box is specified; verify physical dimensions, knockout pattern, cover compatibility, device fit and local code requirements before installation.

Key Features

• Manufacturer: Orbit — Model/SKU: SB7
• Welded 7-gang switch/junction box
• Suitable for rough-in, replacement, maintenance, and contractor stocking
• Intended to receive covers and devices when matched to project requirements

Primary function

The Orbit SB7 is a welded 7-gang electrical box intended to provide an enclosure and mounting point for multiple devices and junctions where a welded multi-gang box is specified.

• Provides mounting for multiple switches, receptacles, or other devices in a single enclosure
• Used for junctions and rough-in layout work when a 7-gang welded box is required

Typical applications

Common uses include contractor rough-in, commercial electrical rooms, replacement projects, and facility maintenance when project specifications call for this type of box.

• Junction and device box installations
• Electrical rough-in and retrofit work
• Contractor stock and maintenance spares

Compatibility and installation notes

Confirm specific physical and code-related details before ordering or installing the SB7 so the box fits the project requirements.

• Verify box dimensions and depth against device and cover requirements
• Check knockout pattern and quantity for conduit/connector fit
• Confirm cover compatibility and device mounting alignment
• Calculate box fill for conductors and devices to ensure compliance with local code
• Match the catalog number (SB7) to project drawings or approved submittals before ordering

Before You Order

Confirm the model number (SB7) and that the box dimensions, knockout pattern, cover and device compatibility meet your project requirements.

• Verify box size and depth against device and cover specifications
• Confirm knockout locations and conduit/connector compatibility
• Determine box fill for conductor and device count per local code
• Match SB7 to project drawings or approved submittals

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 7-Gang Welded Switch Box SB7. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
