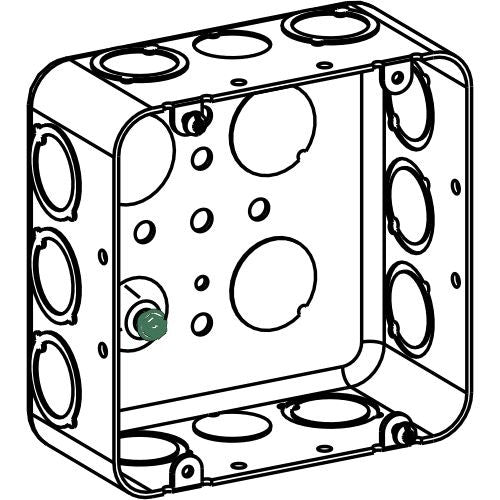

Orbit 5S Square Box Format 2-1/8 in 5S Drawn Steel Box D5Sdb-CKOs

Product Overview

The Orbit D5SDB-CKOS is a 5S square drawn steel electrical box with a 2-1/8 in depth intended for electrical rough-in, device and junction installations.

Constructed from pre-galvanized steel with 1/2 in knockouts, this box is rated for dry locations and carries UL and RoHS certifications.

Key Features

• 5S square box format — matches 5S dimension devices and fittings
• 2-1/8 inch depth suitable for standard device and junction applications
• 1/2 inch knockouts for conduit or cable entry
• Pre-galvanized steel construction with galvanized finish
• Drawn box construction designed for electrical rough-in

Function and typical uses

The Orbit D5SDB-CKOS is designed for electrical rough-in and device or junction box installations in commercial and residential new construction, facility maintenance, and contractor stock. Its 5S square format accommodates standard 5S devices and fittings.

• Suitable for device mounting and junctions in dry locations
• Common applications: electrical rough-in, junction box installation, device box installation, commercial construction

Key specifications

Use these specifications to confirm fit and compatibility with your project requirements.

• Model / SKU: D5SDB-CKOS
• Brand: Orbit
• Format: 5S square box
• Depth: 2-1/8 in
• Knockouts: 1/2 in
• Material: Pre-galvanized steel
• Finish: Galvanized
• Location rating: Dry location
• Certifications: UL, RoHS

Compatibility and installation notes

Confirm the model number and physical dimensions against project drawings, device fittings, and conduit or cable sizes before ordering or installing. Installation must comply with local electrical codes and should be performed by qualified electrical personnel.

• Verify box-to-device compatibility (5S format) and knockout sizing (1/2 in) prior to installation
• Confirm trade size, mounting method, and any applicable local code requirements
• Intended for dry locations

Before You Order

Confirm the model number, required quantity, and that the 5S format, 2-1/8 in depth, and 1/2 in knockouts meet your project and local code requirements before ordering.

• Installation should be completed by qualified electrical personnel.
• Verify device and conduit compatibility with the 5S format and knockout sizes.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 5S Square Box Format 2-1/8 in 5S Drawn Steel Box D5Sdb-CKOs. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
