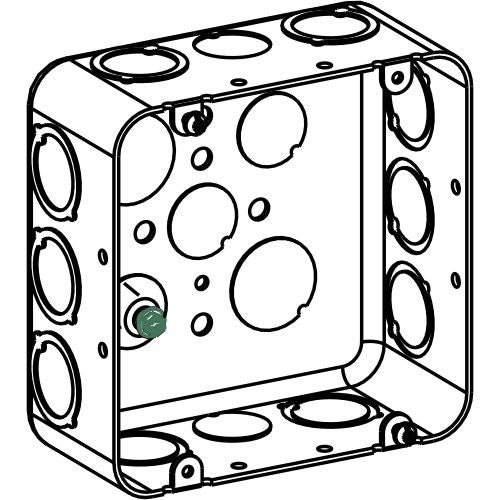

Orbit 5S Square Box Format 2-1/8 in 5S Drawn Steel Box D5Sdb-CKO

Product Overview

The Orbit D5SDB-CKO is a 5S square-format drawn steel electrical box with a 2-1/8 in depth, designed for electrical rough-in, device mounting and junction applications.

Constructed of pre-galvanized steel with a galvanized finish, this box is intended for dry-location installation and is listed to UL and RoHS where indicated.

Key Features

• 5S square box format (compact square footprint for standard device fittings)
• 2-1/8 in depth for common device and rough-in needs
• Pre-galvanized steel construction with galvanized finish
• Drawn-box construction for consistent dimensions in new-construction and repair work
• UL and RoHS certifications noted for the model

What this box is used for

The Orbit D5SDB-CKO is intended for electrical rough-in, junction box use and device box installations in commercial and new-construction settings or for contractor stock. It accepts standard fittings and devices suitable for the 5S square format.

• Electrical rough-in and device mounting
• Junctions and splices for branch circuits
• Commercial construction, facility maintenance, contractor stock

Dimensions and box format

This product uses the 5S square box format with a depth of 2-1/8 in. The 5S designation identifies the square footprint and standard sizing for compatible devices and covers.

• Format: 5S square box
• Depth: 2-1/8 in

Material and finish

The box is made from pre-galvanized steel and finished in galvanized coating to provide basic corrosion resistance appropriate for dry-location indoor installations and typical construction environments.

• Material: Pre-galvanized steel
• Finish: Galvanized

Ratings and certifications

Model D5SDB-CKO is indicated with UL and RoHS listings. The box is specified for dry-location use—confirm local code and project specifications for your application.

• Location rating: Dry location
• Certifications: UL, RoHS

Applications and installation notes

Installation should be performed by qualified electrical personnel. Confirm compatibility with project drawings, local electrical code, and the specific devices, fittings or conduit systems you plan to use before installation.

• Confirm catalog number, trade size and mounting method before ordering
• Check box-to-device compatibility and conduit or cable entry requirements
• Intended for installation per applicable electrical standards

Before You Order

Confirm the model number and quantity required before ordering. Verify the 5S format and 2-1/8 in depth meet device, cover and mounting needs for your project.

• Confirm compatibility with devices, covers and conduit or cable entries
• Verify local code requirements and that dry-location rating is appropriate for the intended installation
• Installation must be completed by qualified electrical personnel

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 5S Square Box Format 2-1/8 in 5S Drawn Steel Box D5Sdb-CKO. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
