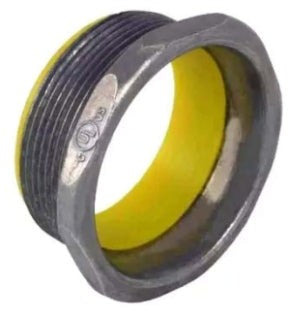

Orbit 1 in Insulated Conduit Chase Nipple CNI-100

Product Overview

The Orbit CNI-100 is a 1 in insulated conduit chase nipple designed for short-threaded chase nipple installations. It features an insulated throat and zinc die-cast construction for use in box-to-box connections and enclosure entries.

Intended for commercial electrical work, replacements, and contractor stock, the CNI-100 is UL-listed and rated for dry locations. Confirm model and installation requirements with qualified electrical personnel before use.

Key Features

• 1 in trade size chase nipple
• Insulated throat to protect conductors at the entry point
• Zinc die-cast construction with zinc finish
• Short threaded nipple format for chase nipple installations
• UL certification and dry-location rating

What this fitting does

The Orbit CNI-100 is a short threaded insulated conduit chase nipple used to create a protected pathway where conduit or raceway enters or connects to electrical boxes, enclosures, or fittings. The insulated throat provides a non-conductive barrier at the entry to help prevent conductor abrasion and grounding contact.

• Used to connect boxes or enclosures where a short nipple is required
• Protects conductors at the entry point with an insulated throat

Where to use CNI-100

CNI-100 is suitable for a range of commercial electrical tasks and contractor applications where a 1 in chase nipple with insulated throat is required.

• Box-to-box connections
• Panel and enclosure entries
• Commercial electrical installations, service upgrades, and facility maintenance
• Replacement fittings and contractor stock

Construction and finish

This SKU is constructed from zinc die-cast material and finished with a zinc coating. The material and finish are specified to meet common durability and installation expectations for dry-location electrical fittings.

• Material: zinc die cast
• Finish: zinc finish

Installation notes and compatibility

Installation should be performed by qualified electrical personnel and verified against project drawings and local codes. Confirm the model number, trade size, box or conduit compatibility, and mounting method before installing the CNI-100.

• Trade size: 1 in
• Mounting type: chase nipple installation
• Confirm box, conduit, and project compatibility prior to ordering

Certifications and location rating

The CNI-100 carries a UL certification and is rated for dry locations. Use only where the listed ratings and environmental suitability match project requirements.

• Certifications: UL
• Location rating: Dry location

Before You Order

Confirm the model number and quantity required before ordering. Verify trade size, box or conduit compatibility, mounting method, and that a dry-location UL-listed insulated chase nipple meets your project and code requirements.

• Confirm catalog number: CNI-100
• Verify trade size: 1 in
• Ensure compatibility with the intended box, enclosure, or conduit
• Have installation performed or reviewed by qualified electrical personnel

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 1 in Insulated Conduit Chase Nipple CNI-100. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
